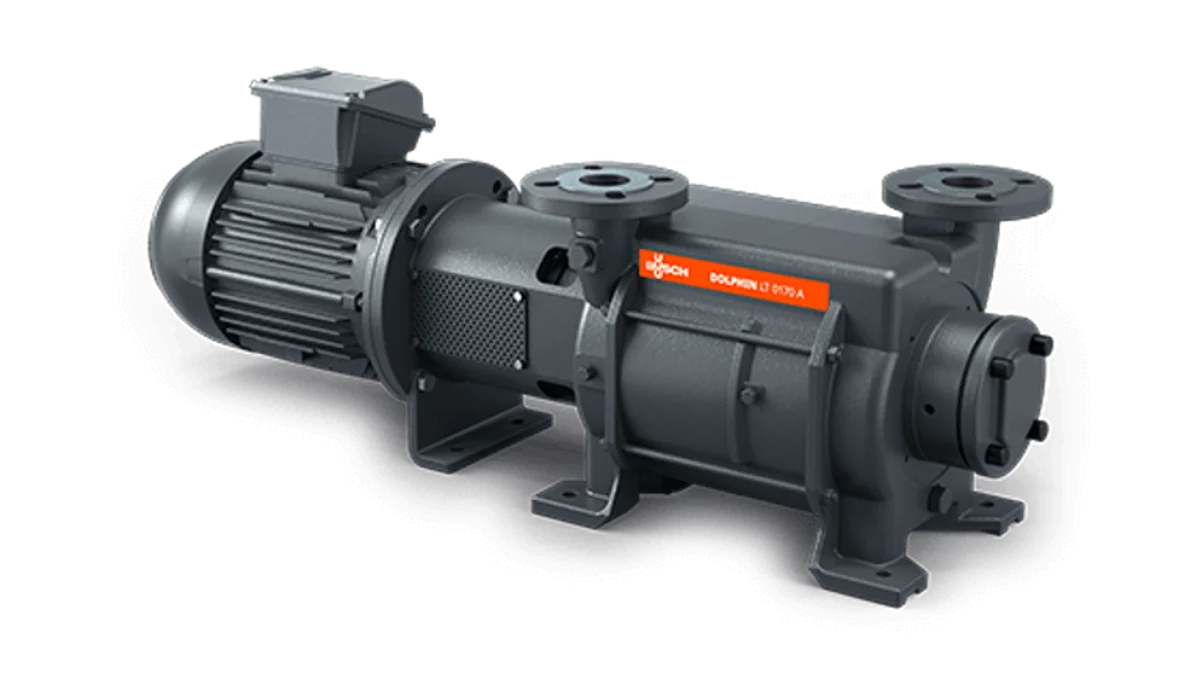

DOLPHIN LT 0130–0220 A

Overview

The DOLPHIN LT 0130–0220 A are liquid ring vacuum pumps with proven two-stage construction and a corrosion-free stainless steel impeller. They feature a direct flange-mounted motor, an integrated flow channel and require no base frame. Housing materials are available in cast iron (EN-GJL-200) or 316 grade stainless steel and an ATEX-certified version is available (Cat 1G (i) 2G (o) IIC T4). The pumps are described as having extremely high vapor and particle tolerance, optimized gas flow, and the ability to use operating fluids other than water. ISO 50 Hz: - DOLPHIN LT 0130 A — Nominal pumping speed 105 m8/h; Ultimate pressure 33 hPa (mbar); Max. overpressure 1.5 bar(g); Nominal motor rating 3.0 kW; Nominal motor speed 1450 min⁻¹; Sound pressure level (ISO 3744), 1 m distance, at medium load 70 dB(A); Weight approx. 139 kg; Dimensions (L x W x H) 906 x 330 x 329 mm; Gas inlet DN 40 PN 10; Gas outlet DN 40 PN 10. - DOLPHIN LT 0170 A — Nominal pumping speed 144 m8/h; Ultimate pressure 33 hPa (mbar); Max. overpressure 1.5 bar(g); Nominal motor rating 4.0 kW; Nominal motor speed 1450 min⁻¹; Sound pressure level 70 dB(A); Weight approx. 149 kg; Dimensions 954 x 330 x 351 mm; Gas inlet DN 40 PN 10; Gas outlet DN 40 PN 10. - DOLPHIN LT 0220 A — Nominal pumping speed 203 m8/h; Ultimate pressure 33 hPa (mbar); Max. overpressure 1.2 bar(g); Nominal motor rating 5.5 kW; Nominal motor speed 1450 min⁻¹; Sound pressure level 70 dB(A); Weight approx. 188 kg; Dimensions 1083 x 330 x 380 mm; Gas inlet DN 40 PN 10; Gas outlet DN 40 PN 10. ISO 60 Hz: - DOLPHIN LT 0130 A — Nominal pumping speed 128 m8/h; Ultimate pressure 33 hPa (mbar); Max. overpressure 1.5 bar(g); Nominal motor rating 4.0 kW; Nominal motor speed 1750 min⁻¹; Sound pressure level 71 dB(A); Weight approx. 139 kg; Dimensions 906 x 330 x 329 mm; Gas inlet DN 40 PN 10; Gas outlet DN 40 PN 10. - DOLPHIN LT 0170 A — Nominal pumping speed 162 m8/h; Ultimate pressure 33 hPa (mbar); Max. overpressure 1.5 bar(g); Nominal motor rating 5.5 kW; Nominal motor speed 1750 min⁻¹; Sound pressure level 71 dB(A); Weight approx. 149 kg; Dimensions 954 x 330 x 351 mm; Gas inlet DN 40 PN 10; Gas outlet DN 40 PN 10. - DOLPHIN LT 0220 A — Nominal pumping speed 230 m8/h; Ultimate pressure 33 hPa (mbar); Max. overpressure 1.2 bar(g); Nominal motor rating 7.5 kW; Nominal motor speed 1750 min⁻¹; Sound pressure level 71 dB(A); Weight approx. 188 kg; Dimensions 1083 x 330 x 380 mm; Gas inlet DN 40 PN 10; Gas outlet DN 40 PN 10. US 60 Hz: - DOLPHIN LT 0130 A — Nominal pumping speed 75.0 ACFM; Ultimate pressure 25 TORR; Max. overpressure 22.0 PSIG; Nominal motor rating 5.0 hp; Nominal motor speed 1800 RPM; Sound pressure level (ISO 3744), 1 m distance, at medium load 71 dB(A); Weight approx. 306 Lbs.; Dimensions (L x W x H) 35.7 x 13.0 x 13.0 inches; Gas inlet DN 40 PN 10 / ANSI 1½" / 150 lbs / JIS 40 10K; Gas outlet DN 40 PN 10 / ANSI 1½" / 150 lbs / JIS 40 10K. - DOLPHIN LT 0170 A — Nominal pumping speed 95.0 ACFM; Ultimate pressure 25 TORR; Max. overpressure 22.0 PSIG; Nominal motor rating 7.5 hp; Nominal motor speed 1800 RPM; Sound pressure level 71 dB(A); Weight approx. 328 Lbs.; Dimensions 37.6 x 13.0 x 13.8 inches; Gas inlet DN 40 PN 10 / ANSI 1½" / 150 lbs / JIS 40 10K; Gas outlet DN 40 PN 10 / ANSI 1½" / 150 lbs / JIS 40 10K. - DOLPHIN LT 0220 A — Nominal pumping speed 135.0 ACFM; Ultimate pressure 25 TORR; Max. overpressure 17.4 PSIG; Nominal motor rating 10.0 hp; Nominal motor speed 1800 RPM; Sound pressure level 71 dB(A); Weight approx. 414 Lbs.; Dimensions 42.6 x 13.0 x 15.0 inches; Gas inlet DN 40 PN 10 / ANSI 1½" / 150 lbs / JIS 40 10K; Gas outlet DN 40 PN 10 / ANSI 1½" / 150 lbs / JIS 40 10K. The DOLPHIN LT 0130–0220 A series is listed for a range of markets and applications including Battery — Recycling; Biogas Handling — Circulation; Carbon Capture — Direct Air Capture; Chemical — Packaging, Filtration, Degassing, Distillation, Solvent Recovery, Evaporation, Drying; Confectionary — Other coating, Pneumatic Conveying, Molding and forming, Vacuum extrusion, Mixing Preparation and cooking; Dairy — Cheese Production (cheese vacuum chambers, pneumatic conveying, cheese towers), Milking, Milk Powder (Evaporation, Powder handling), Butter Production. Additional listed applications include Fish farming (retaining vacuum for filleting, fish meal impregnation, pneumatic transportation of live fish), Food Processing (pneumatic conveying of wet food waste, meat tumblers & marinators, powder processing, vacuum cooling, freeze drying, pasteurizing & sterilizing, meat cutters, beverage filling), Medical (ETO and Steam Sterilization), Packaging (liquid packaging), Pharma and Biotech (distillation, solvent recovery, filtration, degassing, evaporation, drying, packaging), Plastics processing (pyrolysis, extruder and melt degassing), Power Generation (transformer drying), Wastewater Treatment (aeration process), and Woodworking (impregnation, drying).
