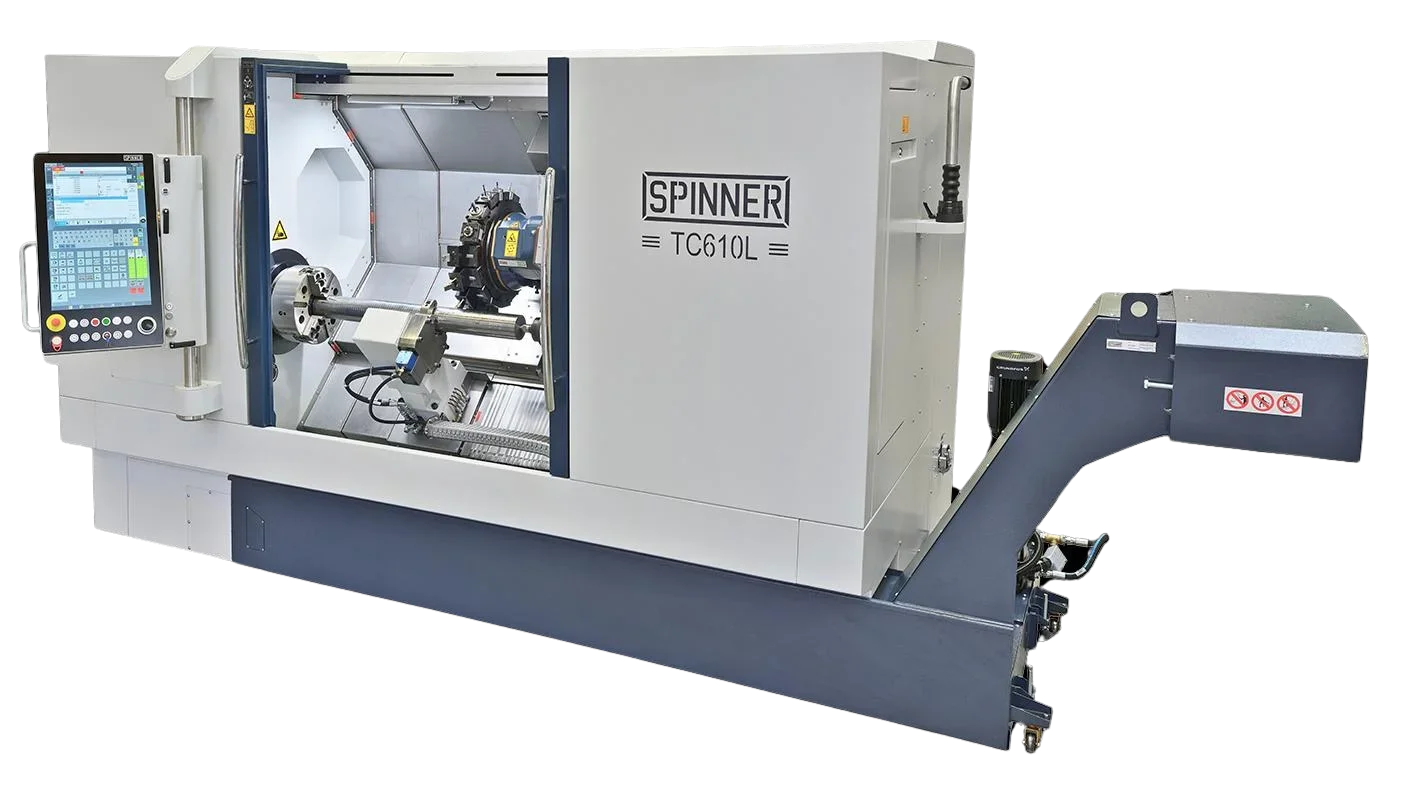

TC610L Large CNC Lathe

Overview

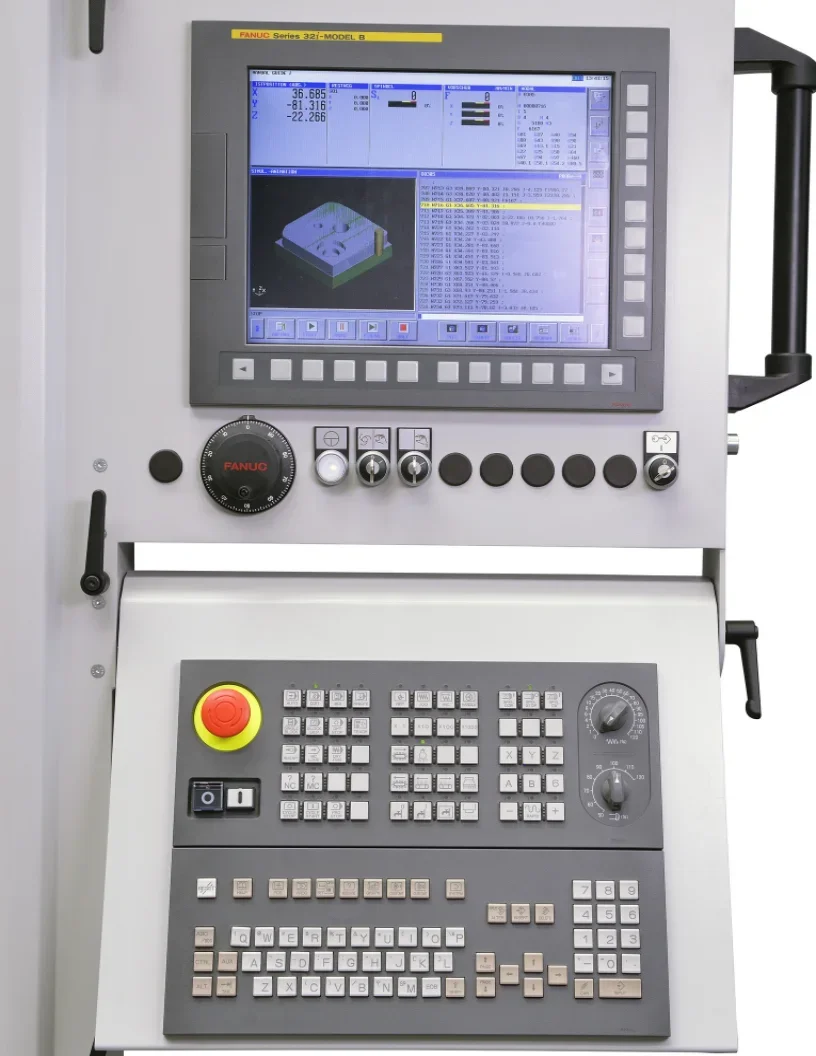

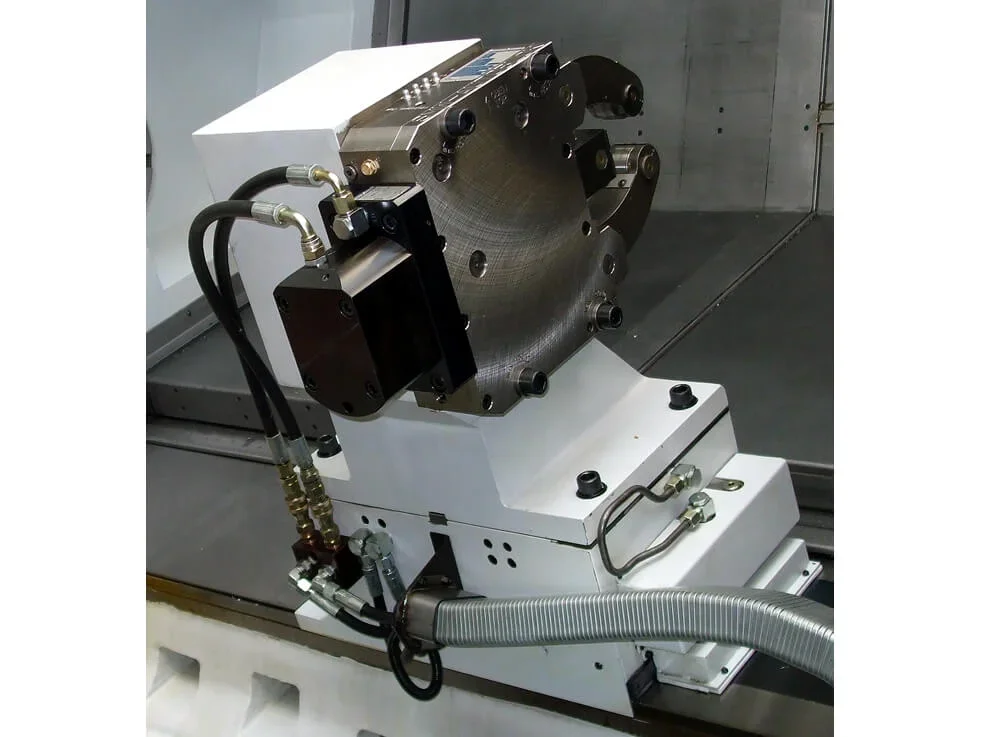

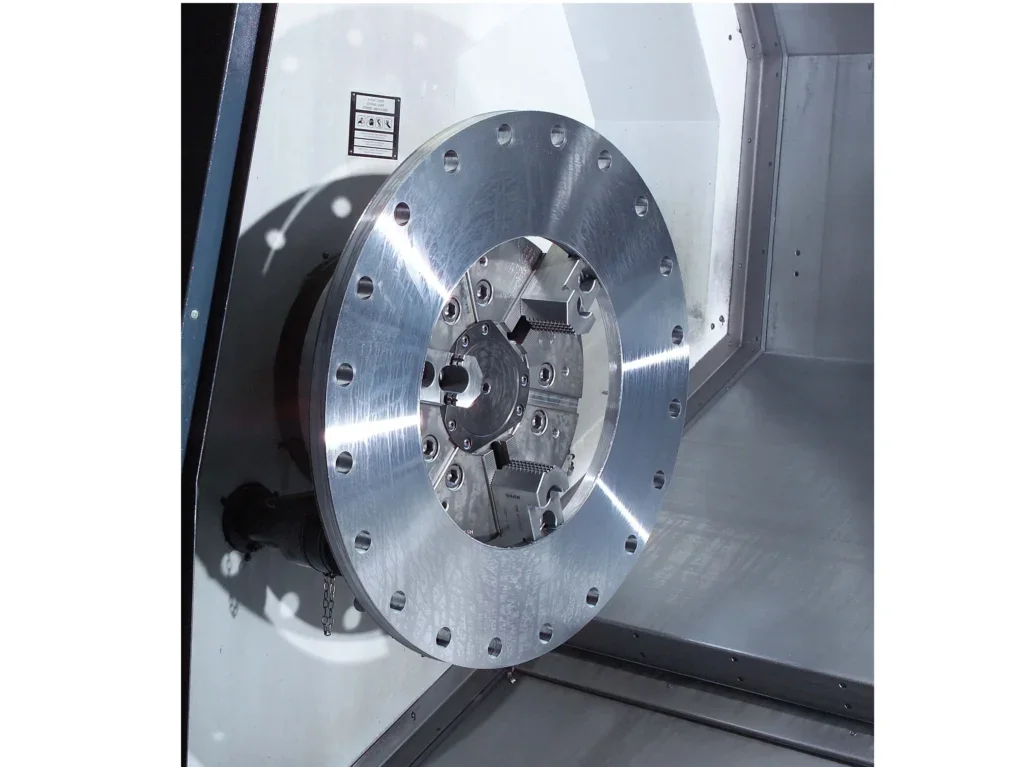

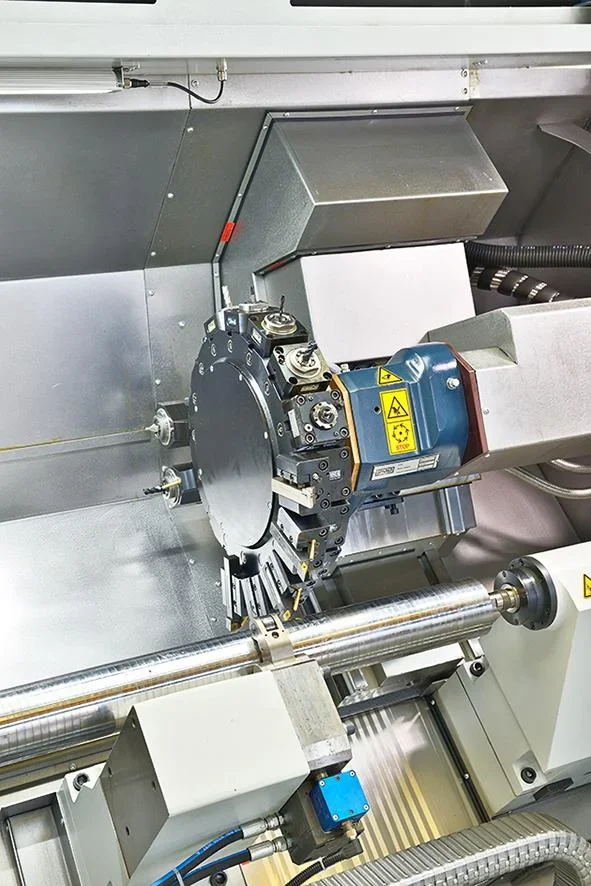

TC610L Large CNC Lathe configured with Fanuc 32iTB CNC control. Linear travels: X = 10.83 in | 275 mm, Y = +1.97 / -1.58 in | +50 / -40 mm, Z = 53.15 in | 1350 mm; stroke listed as 51.2 in | 1,300 mm and max turning length 49.21 in | 1250 mm. Swing diameter 23.62 in | 600 mm and max turning diameter 15.75 in | 400 mm. Bar handling: Bar Capacity (Std) = 3.35 in | 85 mm, Bar Capacity (Opt) = 2.56 in | 65 mm. Power chuck size 9.84 in | 250 mm. Spindle and tooling data: spindle max speed 3,400 rpm, spindle cone MK4 and nose A8. Live tooling rated to 6,000 rpm. Tooling/turret configuration shown as 16 / BMT45. Performance and torque figures provided as: Performance = 22.1 hp | 16.5 kW and Performance (S6 40%) = 80.5 hp | 60 kW; Torque = 25.8 ft-lb | 35 Nm and Torque (S6 40%) = 431.5 ft-lb | 585 Nm. Feed/rapids and physical data: rapid traverse rates X/Y/Z = 1,181 ipm | 30 m/min. Overall machine footprint dimensions Width = 76.8 in | 1,950 mm, Length = 133.9 in | 3,400 mm, Height = 82.7 in | 2,100 mm. Machine weight 14,330 lbs | 6,500 kg. Designed for industrial turning centers that combine conventional turning with live-tool milling operations in a single setup. The TC610L supports long parts (max turning length 49.21 in | 1250 mm, Z travel 53.15 in | 1350 mm) and moderate-to-large diameters (swing 23.62 in | 600 mm) while enabling milling/secondary operations via 6,000 rpm live tooling and a 16-station BMT45 turret. Typical applications include medium- to high-volume production and single-setup machining of turned components where reduced handling is valuable (bar feed or chucking workflows using the specified bar capacities and a 9.84 in | 250 mm power chuck). Fanuc 32iTB control and the listed rapid traverse rates (1,181 ipm | 30 m/min) support automated, high-throughput shop environments. Use planning should account for the machine footprint (76.8 in x 133.9 in x 82.7 in) and transport/installation needs given the 14,330 lbs | 6,500 kg weight.
