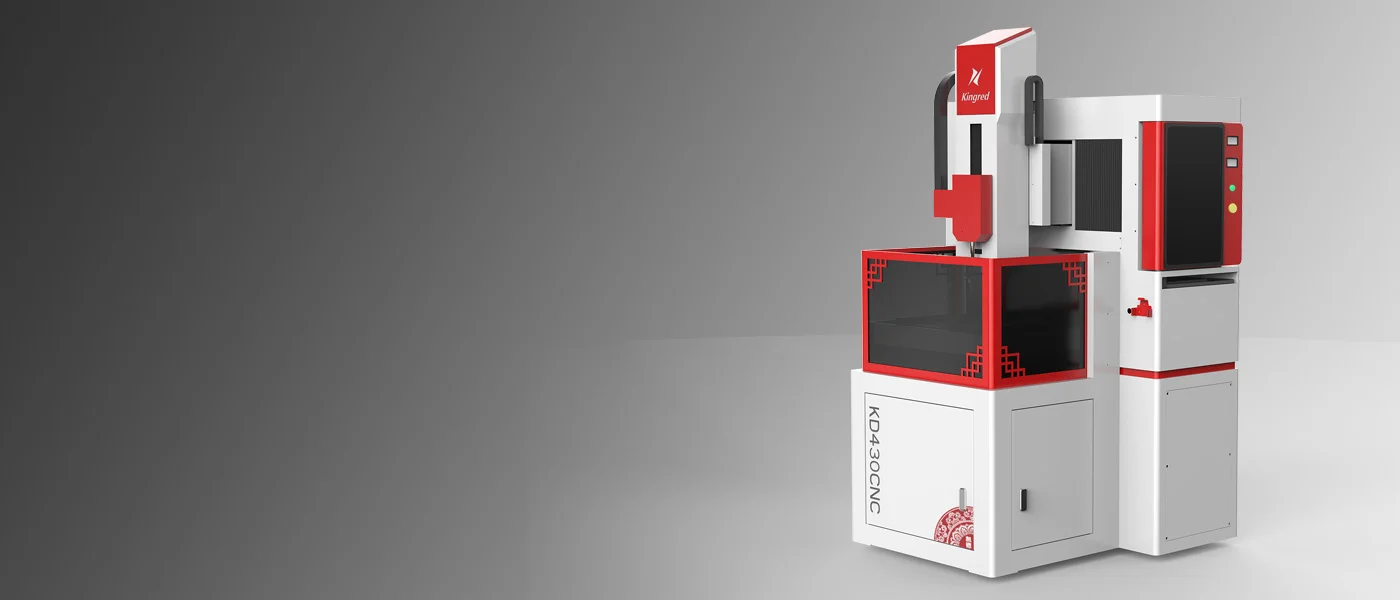

Kingred Hole Drilling EDM machine KD430CNC

Overview

Model: Kingred Hole Drilling EDM machine KD430CNC. The supplied product content lists technical parameters including X*Y*Z travel 320X400X300 mm, distance of guide and working table 350 mm, and worktable size 550X360 mm with a maximum load of the working table 1000 kg and a granite worktable surface. Machining parameters include electrode range Φ0.2-Φ0.3 mm, rotation speed of spindle (C-axis) 0-60 rpm, maximum feed speed of spindle 120 mm /min, control axis 3, maximum machining current 3 A, maximum cut thickness 300 mm, and minimum hole diameter 0.001 mm. Fluid, power and dimensional parameters list working fluid type Purified water, maximum working fluid pressure 6-10 mpa, working fluid protection Automatic lifting enclosure, rated power 3 kw, input voltage 380/50 V/Hz, outer dimension 2600 kg, outer size 1.2*1.3*2.2 m and packing size 1.4*1.5*2.2 m. Drive and system details in the content include X-axis drive Kingred custom servo motor, Z-axis secondary lift Electric, K-CUT integrated control system, and Kingred control system for electrical control. The content explicitly states the product is intended to "Solve user question for WEDM application" and describes K-Cut EDM as a Wire Cut machining system. K-Cut functions described include multi-axis simultaneous machining to achieve complex shapes such as taper, variable cone and upper and lower special-shaped workpieces, and the K-cut WIRE system provides wire visual data management, one-key wire feeding, CNC wire tightening, digital reverse control and wire speed dynamic control. The K-Cut PLC system and integrated control features are presented as part of an intelligent manufacturing chain supporting wire cutting and automated wire-feed management.
