Grid Solutions, LLC (GE Vernova)EPM 4600 Power Meter

EPM 4600 Power Meter

Grid Solutions, LLC (GE Vernova)

Categories:
Power Protection Systems

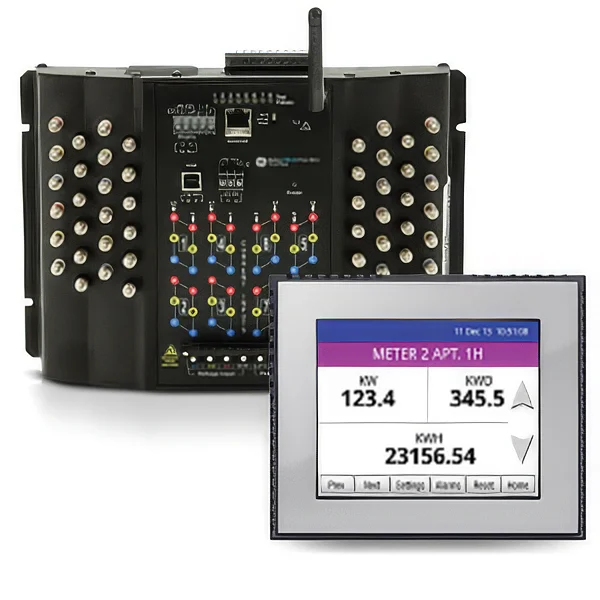

Equipment main view

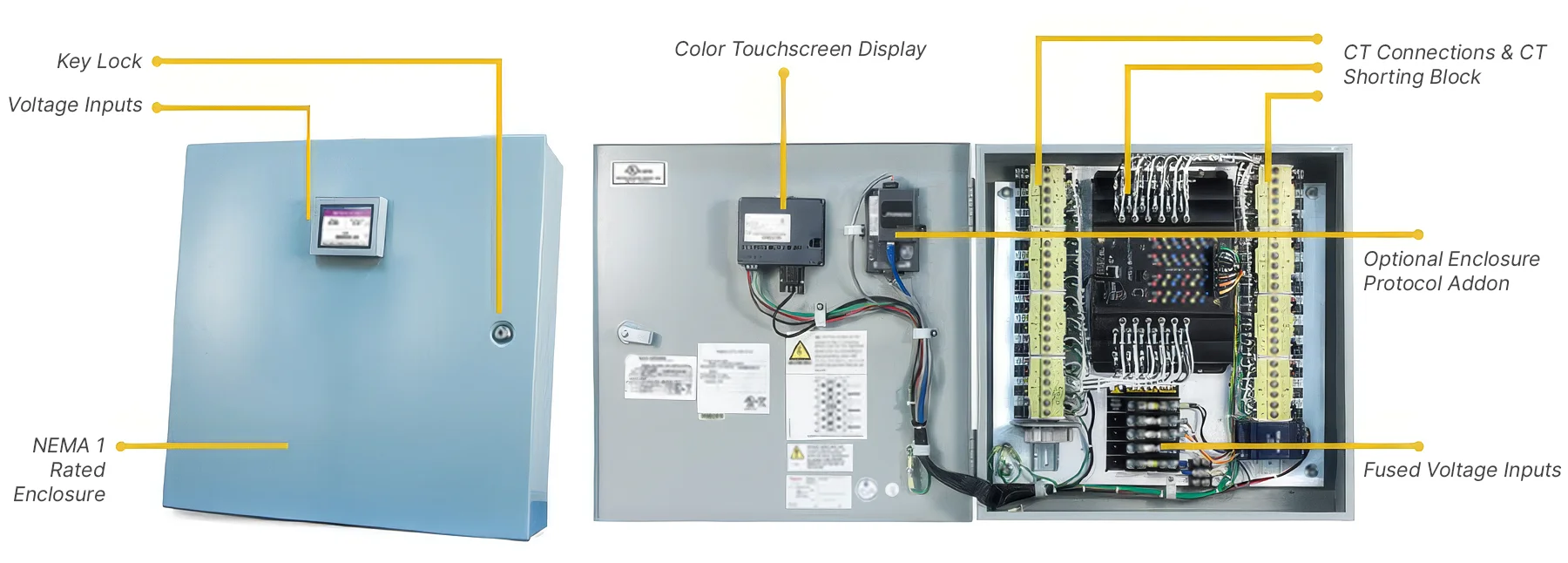

Equipment view 2

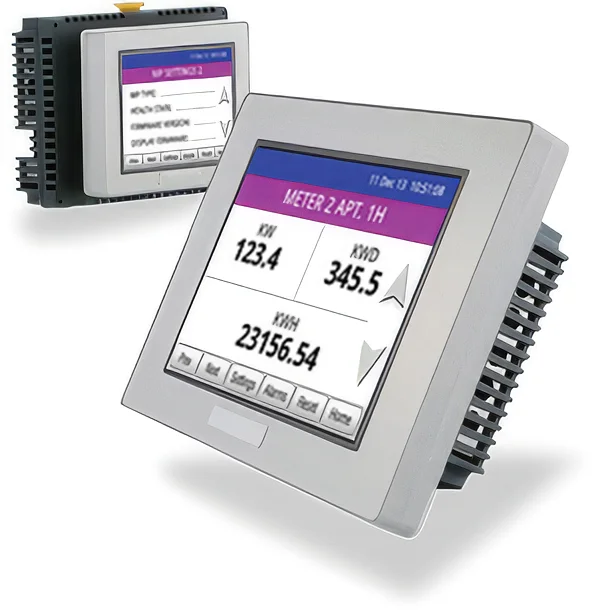

Equipment view 3

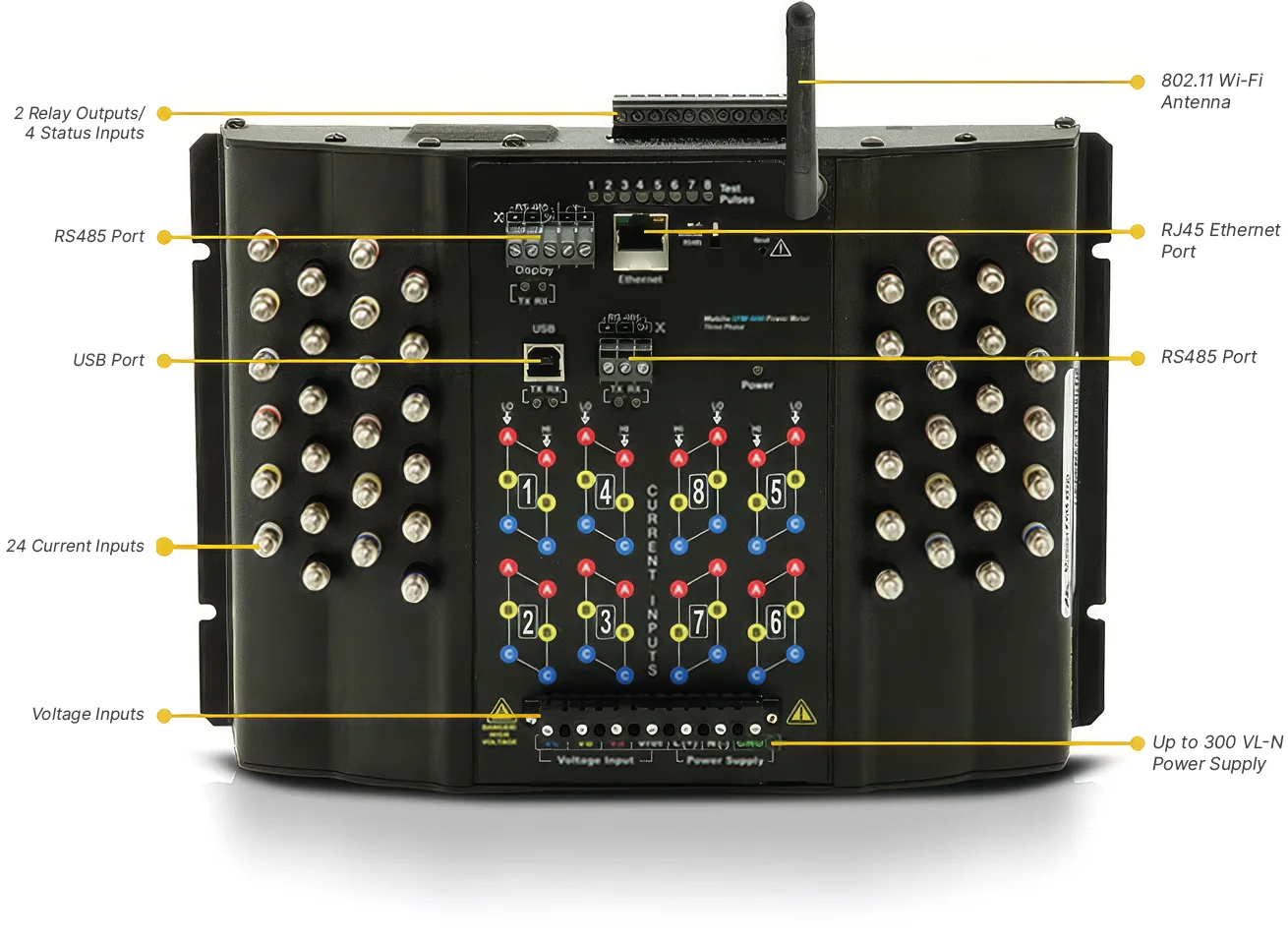

Equipment view 4

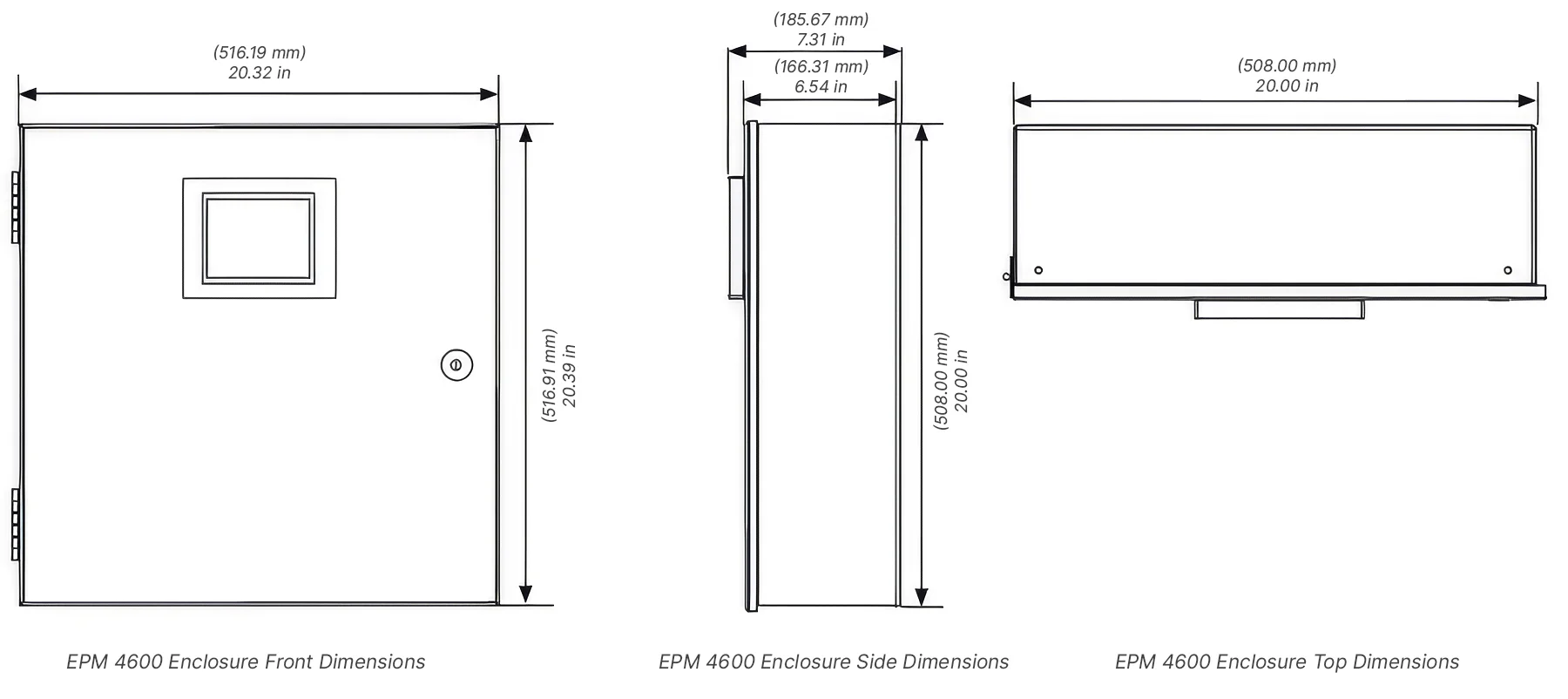

Equipment view 5

Model Overview

The Multilin EPM 4600 Multi-feed Power and Energy Meter is a submetering solution that measures 8 Three phase or 24 Single phase inputs and combines the capability of multiple meters in a single unit for space-saving installation. Voltage inputs: 0-576V Line to Neutral, 0-721V Line to Line, universa...

Technical Specifications

Wiring - Supports: 3 element Wye, Single Phase 2 and 3 Wire - Input wire gauge: AWG 12-26 (0.08-2.5)mm2
Shipping - 7.6(L) x 11.28(W) x 4.36(H) in/ 19.3(L) x 28.65(W) x 11.07(H) cm Weight: 7 lbs - Display Weight : 0.62 kg/1.36 lb. or less (main unit)
Isolation - All inputs to outputs are isolated to 2500 VAC
Compliance - UL Listing: UL61010-1, CAN/CSA C22.2. No. 61010-1, UL file number E250818 - IEC 62053-22 (0.5% Class) - ANSI C12.20 (0.5% Accuracy) - ANSI (IEEE) C37.90.1 Surge Withstand - ANSI C62.41 (Burst) - EN61000-6-2 Immunity for - Industrial environments: 2005 - EN61000-6-4 emission Standards for Industrial environments: 2007 - EN61326 EMC Requirements: 2006
Update Time - Every 60 Cycles
