TMA8311/HUM

Overview

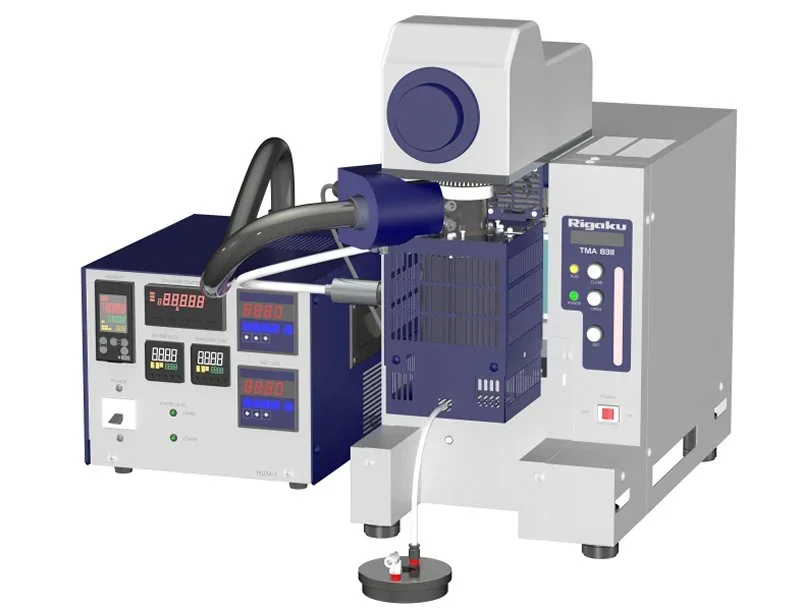

TMA8311/HUM (Thermo plus EVO2 TMA8311/HUM-1) is a combined thermal mechanical analyzer and water vapor generator that enables TMA measurements in a water vapor atmosphere. The HUM-1 uses a polymer-type relative humidity sensor and a high-precision temperature sensor to provide good humidity concentration variability and long-term stability. Measurement specifications include a temperature range of room temperature～1500℃, heating rate 20℃/min, specimen size outer diameter ≤9mm and length 10～20mm, TMA scale ±2,500µm, and DTA range 2000µV. Humidity and gas handling specifications include a relative humidity range of 5～90%RH, wet gas flow 200～500mL/min, dry gas flow 0～500mL/min, bubbler capacity 300mL, humidity stability ±2%RH, feedback-type humidity adjustment with PID control, stabilization time adjustable within 10 minutes (changeable at 10%RH), and continuous use >40 hours at 60～90%RH. Physical and power specifications list TMA dimensions 380(W) x 580(H) x 580(D)(mm) and weight 30kg, HUM-1 dimensions 290(W) x 260(H) x 350(D)(mm) and weight 15kg, with power requirements TMA 1Ø, AC100-120V/200-240V 50/60Hz 15A and HUM-1 1Ø, AC100V 50/60Hz 5A. TMA/HUM-1 is presented as an effective means for evaluation of water absorption properties of materials, and for assessing humidity dependence of high polymer materials. The product information explicitly lists evaluation of binder removal and sintering behavior of ceramics as an intended application. Related application notes referenced for this product include humidity-driven expansion differences of polymer films (B-TA1053), expansion/shrinkage of polyimide film due to humidity changes (B-TA1054), expansion and shrinkage of cement with humidity variation (B-TA1052), and evaluation of water absorption of PEFC electrolyte membranes (B-TA1016).
