SERVOCUT 302-MA

Overview

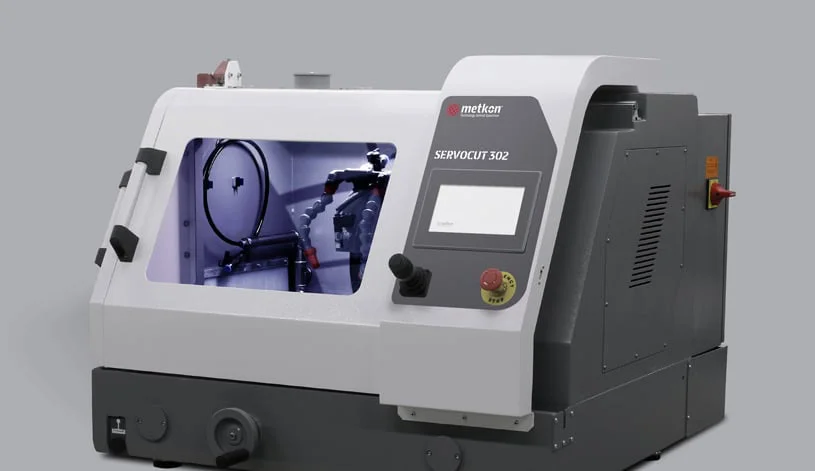

Model 302-MA (ORDER NO: 15 56) is the SERVOCUT 302-MA metallographic automatic abrasive cutting machine with a modern, sturdy design and low noise and emission levels. It provides X-Y-Z three axes cutting capability and ergonomic proportional joystick control for smooth, precise positioning and two-hand operation safety; sliding door and side openings give extraordinary access for handling. The automatic models include programmable software with a colored 7 inch HMI touch screen and the ability to save up to 99 different cutting programs. Key technical specifications include a 4 kW cutting motor, variable cut-off wheel speed 600-4000 RPM (frequency converter standard on MA and AA models), Max. Wheel Diameter: d8300 mm, Max. Cutting Capacity, d8: d8110 mm, Max. Cutting Capacity, HxD: #70x200 mm, Z-Axis Travel 125 mm, Y-Axis Travel 220 mm, T-Table Dimension 444x275 mm, T-Slot Dimension 12 mm, Cutting Feedrate 20-5000 b5m/s, Size WxDxH 94x99x76 cm and Weight 250 kgs. The unit includes a recirculation cooling tank with 80 lt capacity and two adjustable cooling nozzles positioned at both sides of the cut-off wheel. Standard and optional functional features: Instafeed (Auto Feedrate) automatic feedrate adjustment based on motor load, Rapid Pulse Cutting (standard) for very hard and heat sensitive specimens, Smart Feed Control (standard), manual joystick cutting mode, Chop Cutting Z-Axis: Manual, Table Feed Cutting Y-Axis: Auto. Optional accessories and features mentioned include laser alignment unit, magnetic collector rod set for the cooling tank, optional level sensor for the coolant, and an optional fume and mist removing (Fumefilter) unit. The SERVOCUT 302-MA is described for metallographic sample preparation and abrasive cutting of a very wide range of materials, offering both bench-top and floor-cabinet installation options and capacity to position and clamp large samples on the table. It supports cutting of cylindrical specimens up to d8110 mm diameter and accommodates cut-off wheels up to d8300 mm. Operational use cases include manual quick cuts via the joystick with adjustable feed speed, programmed automatic cutting using the 7 inch HMI to store and run up to 99 programs, and automated feed optimization with Instafeed to prevent specimen burning and wheel overload. Rapid Pulse Cutting is described specifically for cutting very hard and heat sensitive specimens, and the recirculating coolant system with adjustable nozzles and powerful pumps is used to prevent burns on specimen surfaces during cutting.
