MRH 175

Overview

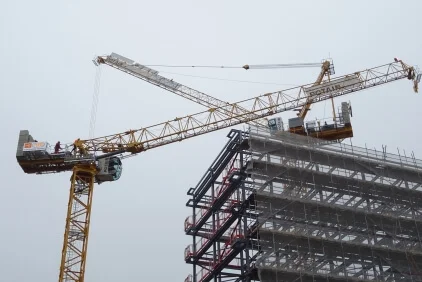

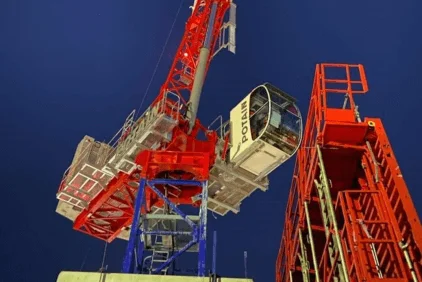

The MRH 175 is a Potain top-slewing tower crane with a maximum jib length of 180 Ft (55 m) and a maximum rated load of 11 USt (10 t). Tip capacity is configuration-dependent: 1,65 USt tip load with 180ft jib (1,5t) and 3USt with 164ft jib. Jib raise time is rapid — Only 2 minutes to raise up completely the jib. The crane is designed for transportability and logistics efficiency: the crane transportable in 4 standard containers only. Mast options are compatible with regular Potain K masts in 1,6 m and 2 m sections for fleet optimization. Major elements are sized for manual handling during assembly: Elements weights under 8.5USt for easy erection and dismantling. Out-of-service weather vanning radius is 33ft whatever the jib length. Suited to commercial and industrial construction or infrastructure projects that require long reach (up to 180 Ft / 55 m) and lifts up to 11 USt (10 t), with the ability to trade reach for higher tip capacity by selecting a shorter jib (164ft for 3USt tip load). The fast jib-raise (Only 2 minutes) and element weights under 8.5USt make the MRH 175 attractive for rental fleets, multi-site deployments, and jobs that require frequent assembly and dismantling. Transportability in 4 standard containers and compatibility with 1,6 m and 2 m Potain K mast sections support constrained-site logistics and fleet standardization. The fixed out-of-service weather vanning radius of 33ft (33ft whatever the jib length) is a site-planning parameter to consider for parked or idle configurations and for defining safe staging and tie-down areas.
