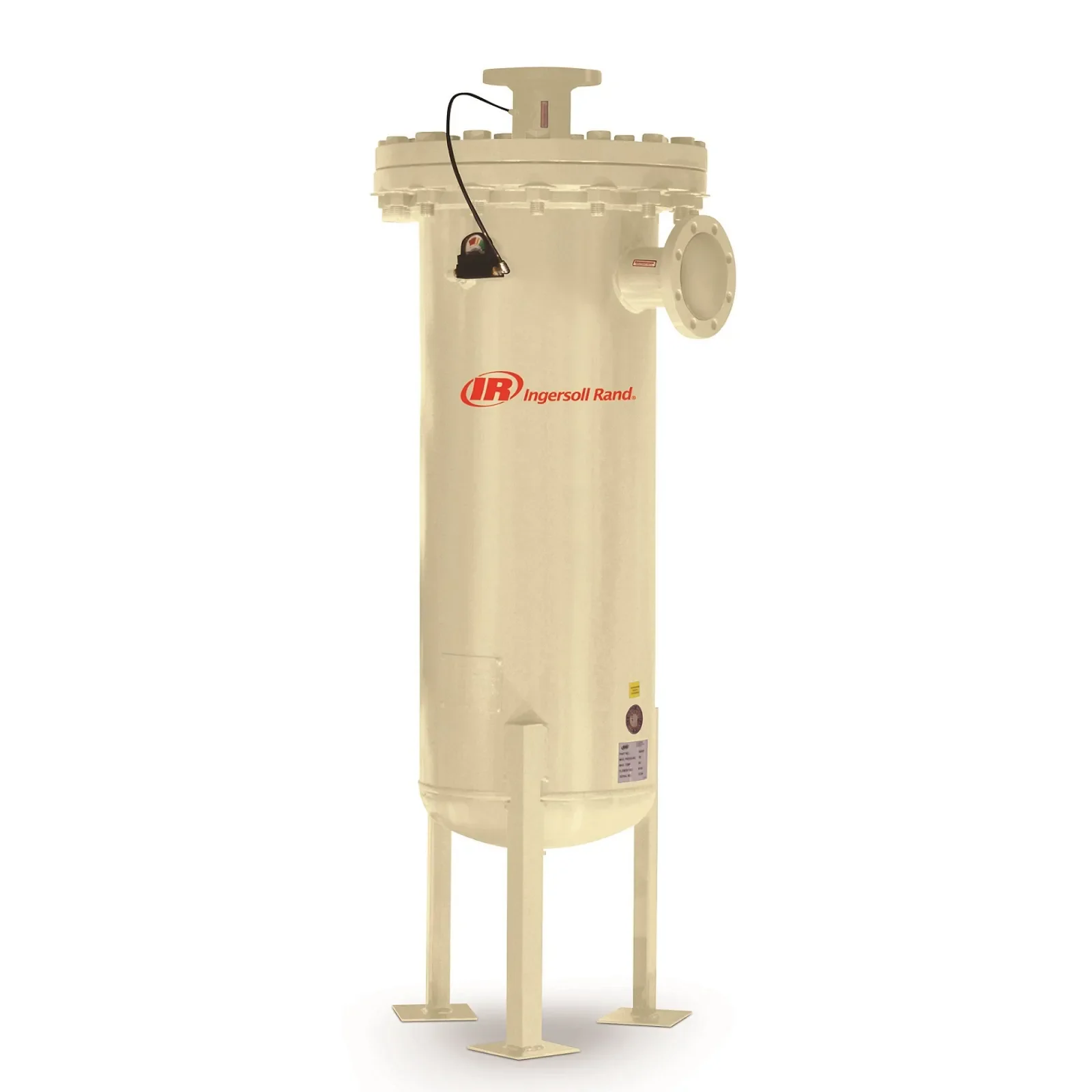

NL Module Coalescing Filters
Ingersoll Rand Inc. (IR)
Model Overview & Specs
Overview
Capacity Range: 125-10000 cfm (3.5-283.2 m3/min). Maximum Operating Pressure: 150 psig (10.3 barg). Maximum Operating Temperature: 125°F (52°C). Minimum Operating Temperature: 34°F (1°C). Pressure Drop: 0.5 psig (0.03 barg). Filtration Grades: High efficiency. High-efficiency particulate filtration to 0.5 ppm, > 3 microns at 100%, between 0.1 to 3 microns at 99.98%. Element Life: 10 years. High-quality, maintenance-free filters extend element life up to 15 years. Works on all common mineral and synthetic lubricants. Model-specific specifications include: - F210INLM — Flow capacity 3.5 m3/min; Connection Size 2" BSPP; Drain Port 1" BSPP; Weight 205 kg; Dimension (F) 1075 mm; Dimension Volume (i) 57. - F430INLM — Flow capacity 7.2 m3/min; Connection Size 2" BSPP; Drain Port 1" BSPP; Weight 205 kg; Dimension (F) 1075 mm; Dimension Volume (i) 57. - F850INLM — Flow capacity 14.2 m3/min; Connection Size DN 80 PN16; Drain Port 1" BSPP; Weight 234 kg; Dimension (F) 1736 mm; Dimension Volume (i) 114. - F1360INLM — Flow capacity 22.7 m3/min; Connection Size DN 80 PN16; Drain Port 1" BSPP; Weight 239 kg; Dimension (F) 1736 mm; Dimension Volume (i) 114. - F1870INLM — Flow capacity 31.2 m3/min; Connection Size DN 80 PN16; Drain Port 1" BSPP; Weight 297 kg; Dimension (F) 1837 mm; Dimension Volume (i) 160. - F2550INLM — Flow capacity 42.5 m3/min; Connection Size DN 100 PN16; Drain Port 1" BSPP; Weight 349 kg; Dimension (F) 1840 mm; Dimension Volume (i) 205. - F3220INLM — Flow capacity 53.7 m3/min; Connection Size DN 100 PN16; Drain Port 1" BSPP; Weight 551 kg; Dimension (F) 1924 mm; Dimension Volume (i) 380. - F4070INLM — Flow capacity 67.8 m3/min; Connection Size DN 100 PN16; Drain Port 1" BSPP; Weight 560 kg; Dimension (F) 1924 mm; Dimension Volume (i) 380. Provides efficient equipment protection by delivering high-efficiency particulate filtration to 0.5 ppm and removing particles > 3 microns at 100% and 0.1 to 3 microns at 99.98%. Offers a low pressure drop design intended to lower energy use and to provide an economical drying solution for compressed air needs, and reduces the effects of catastrophic air/oil separator failures while operating with all common mineral and synthetic lubricants.
