MS100
Murata Machinery, Ltd. (Muratec)
Model Overview & Specs
Overview

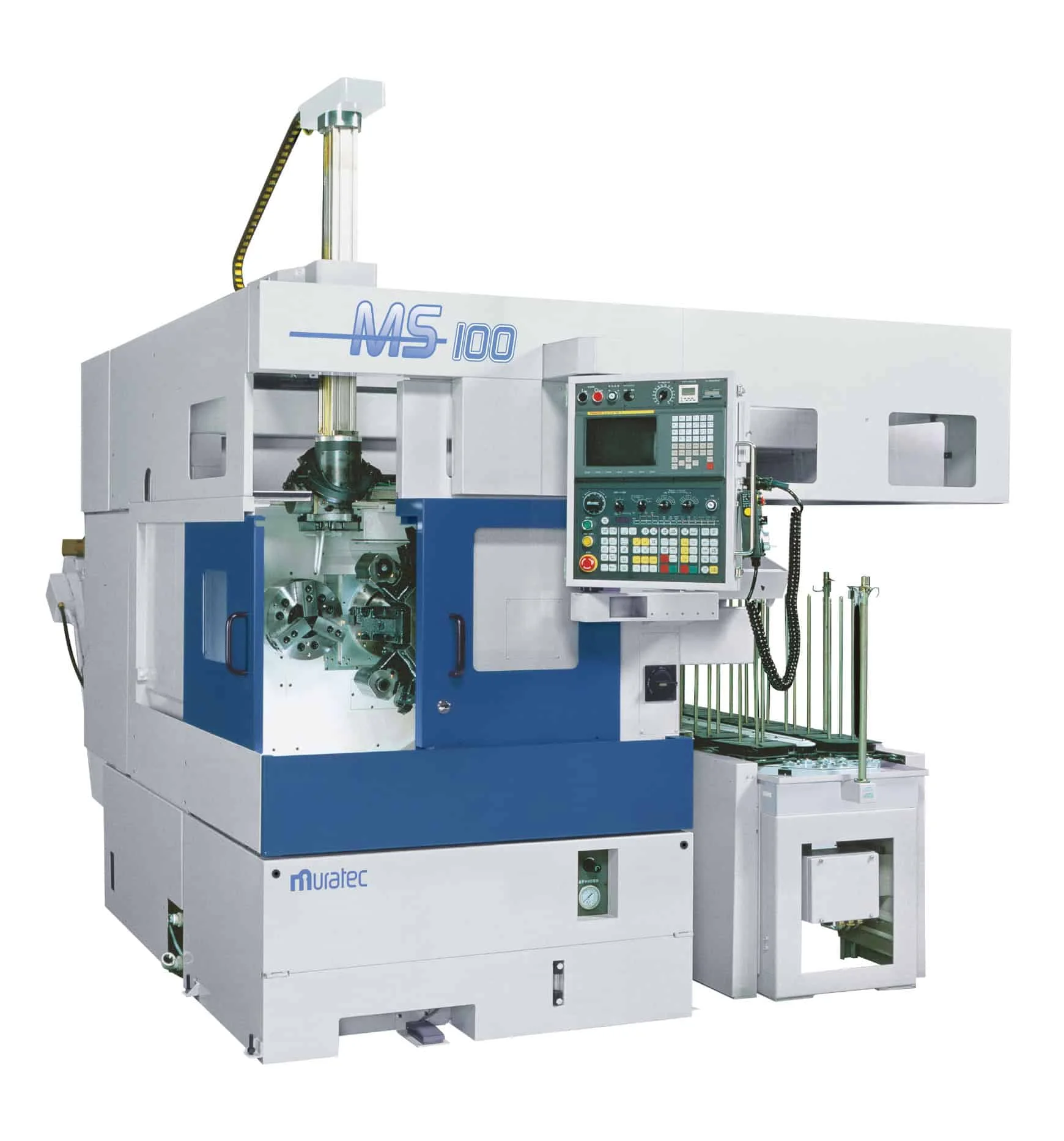

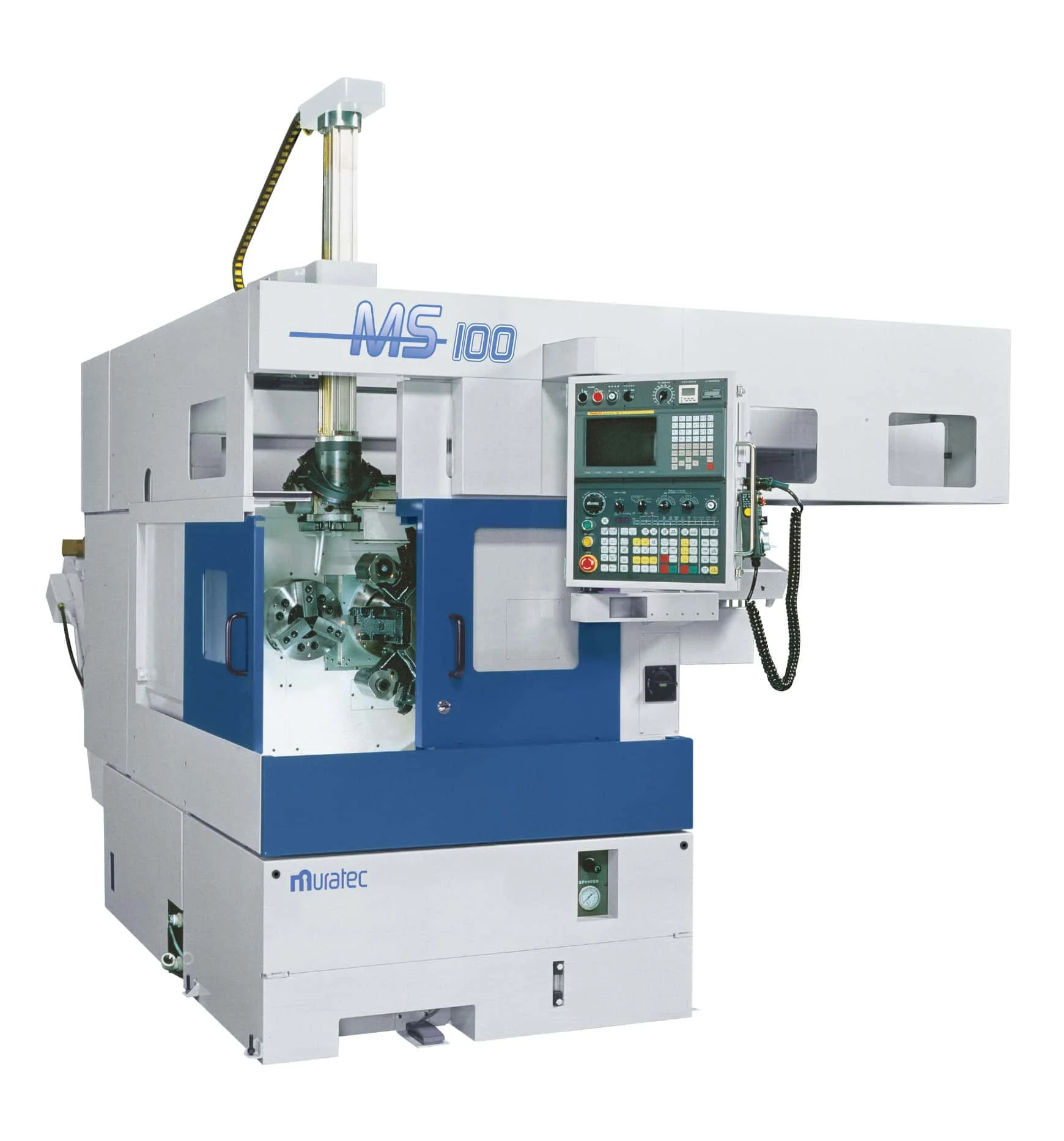

MS100 is a single spindle CNC lathe designed for automated line systems and equipped with an automated gantry loader for material handling. Maximum Chuck Size: 10"; Number of Turret Stations: 10 STA; Maximum Spindle Speed: 3500 rpm. Spindle Drive Motor: 22 kW/30 min; Spindle Nose Size: JIS A2-6; Spec. of Axes: X-axis 24 m/min | Z-axis 24 m/min. Gantry Loader Workpiece Handling Capacity: ⌀200 mm x 120 mm, up to 8.0kg/piece; the machine maintains a compact footprint while accommodating large parts. The MS100 is described as ideal for high-volume production and line planning. The MS100G configuration integrates with MW Series twin spindle turning machines and provides high-speed turning capabilities together with an automated gantry loader. The design enables longer unattended operations to enhance efficiency, productivity and reduce the cost of labor, and listed applications include Consumer Hardware, Food & Beverage, Machine & Job Shops, Manufacturing & Industrial, and Utilities.
