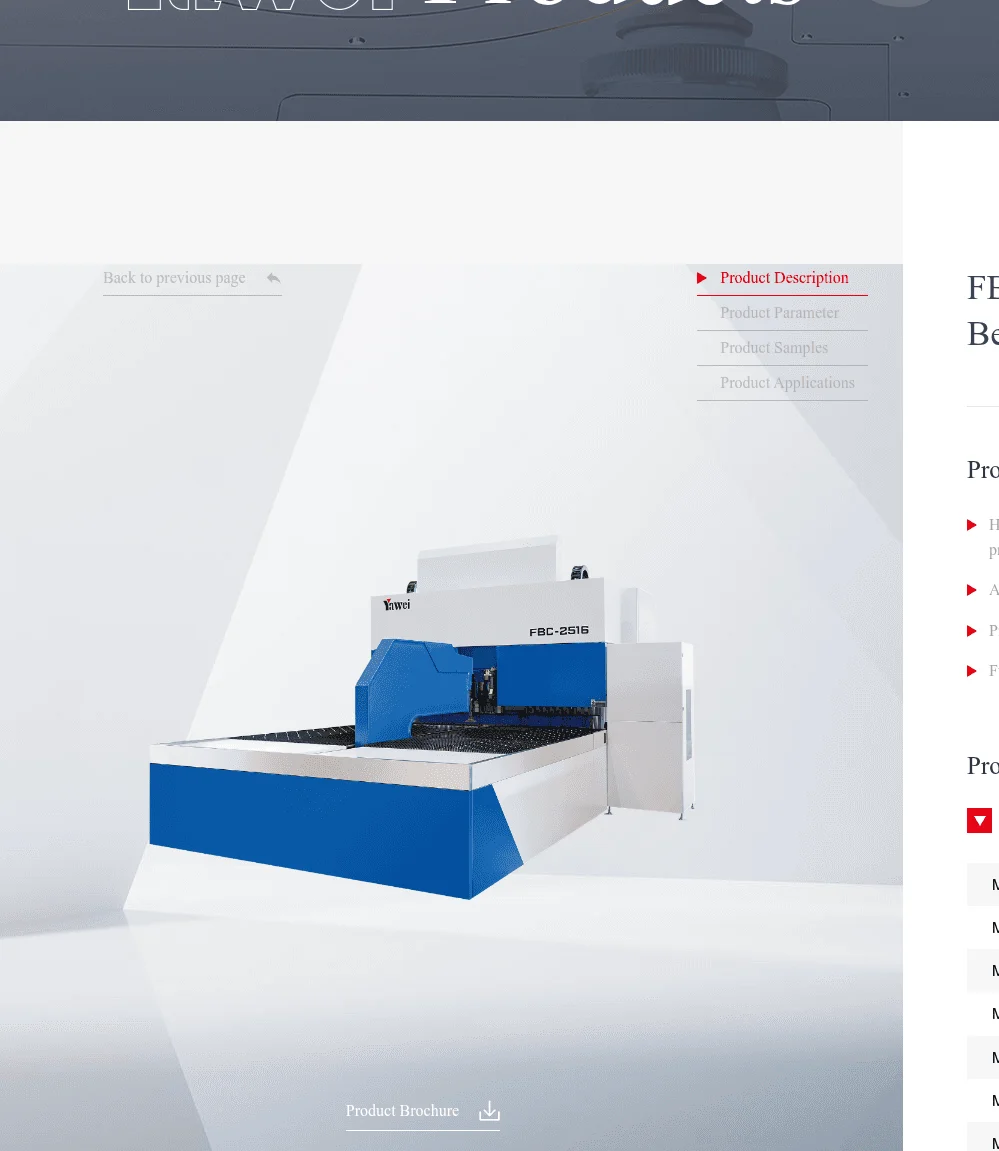

FBC Automatic Tool Changing CNC Panel Bender

Overview

FBC Automatic Tool Changing CNC Panel Bender — CNC-controlled panel bender with automatic tool changing and 20 servo axis control. - FBC2016: Max folding 2000mm; Maximum diagonal length of sheet 2400mm; Machine weight 14300kg; Dimensions（L*W*H） 4.6*4.6*3.1m. - FBC2516: Max folding 2500mm; Maximum diagonal length of sheet 2800mm; Machine weight 20000kg; Dimensions（L*W*H） 5.5*4.9*3.2m. - FBC3016: Max folding 3000mm; Maximum diagonal length of sheet 3400mm; Machine weight 23400kg; Dimensions（L*W*H） 6.6*5.4*3.2m. Common technical limits: maximum folding height 165mm; minimum sheet thickness 0.35mm. Rated maximum sheet thickness by material: ss 600MPa: 1.5; AI Alloy 265MPa: 3; Mild steel 410MPa: 2. Designed for industrial-scale CNC folding and panel forming where automatic tool changing and multi-axis servo control reduce manual setup and support complex bend sequences. Select the model by required straight folding length and diagonal handling: FBC2016 for up to 2000mm folds (2400mm diagonal), FBC2516 for up to 2500mm folds (2800mm diagonal), and FBC3016 for up to 3000mm folds (3400mm diagonal). Material and geometry guidance: suitable for thin-to-moderate gauge panels with a minimum gauge of 0.35mm and material-specific maximum thicknesses listed by material class (ss 600MPa, AI Alloy 265MPa, Mild steel 410MPa). Machine weights and provided L*W*H footprints indicate these are permanent factory installations requiring appropriate floor loading, space and rigging planning.
