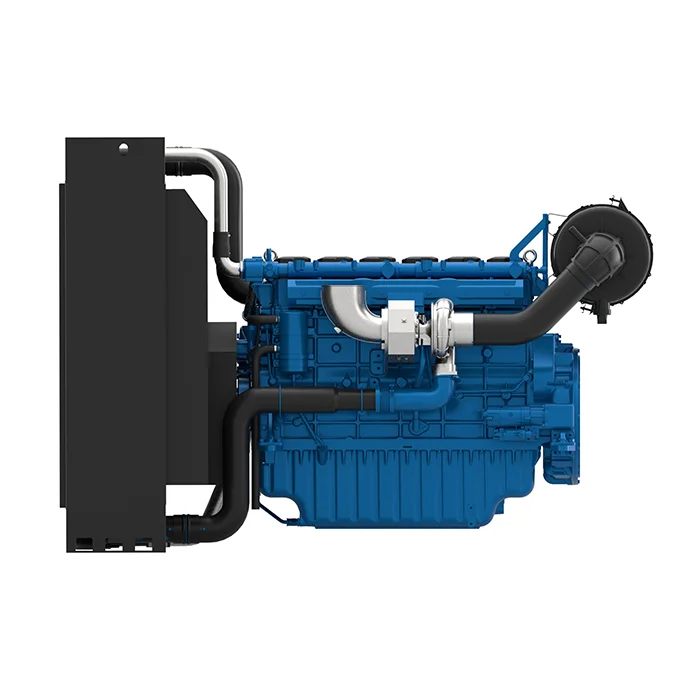

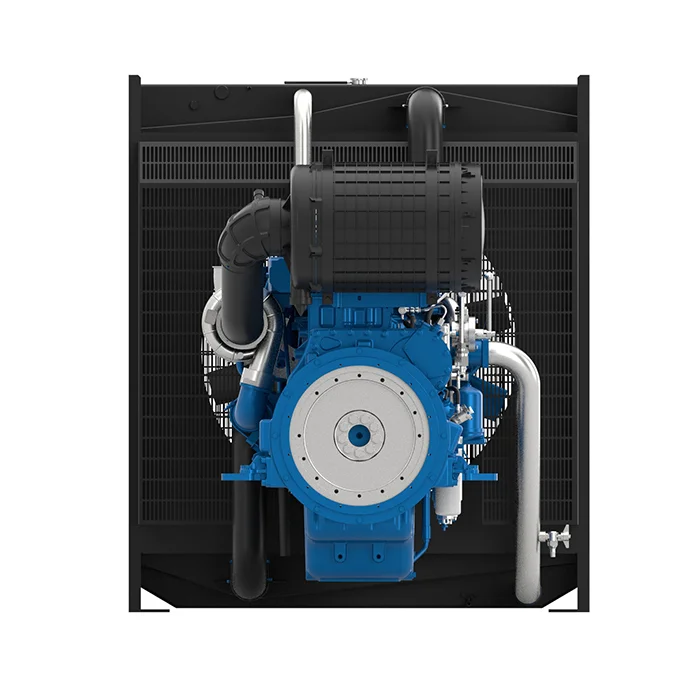

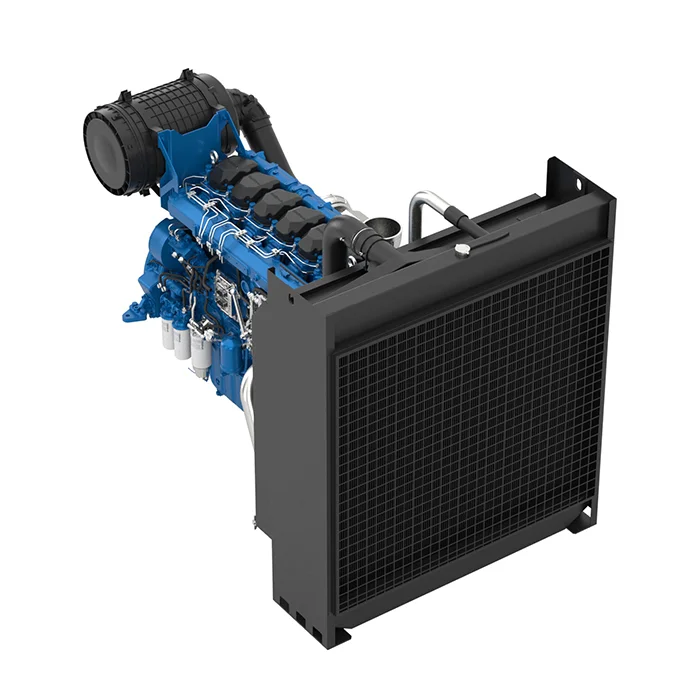

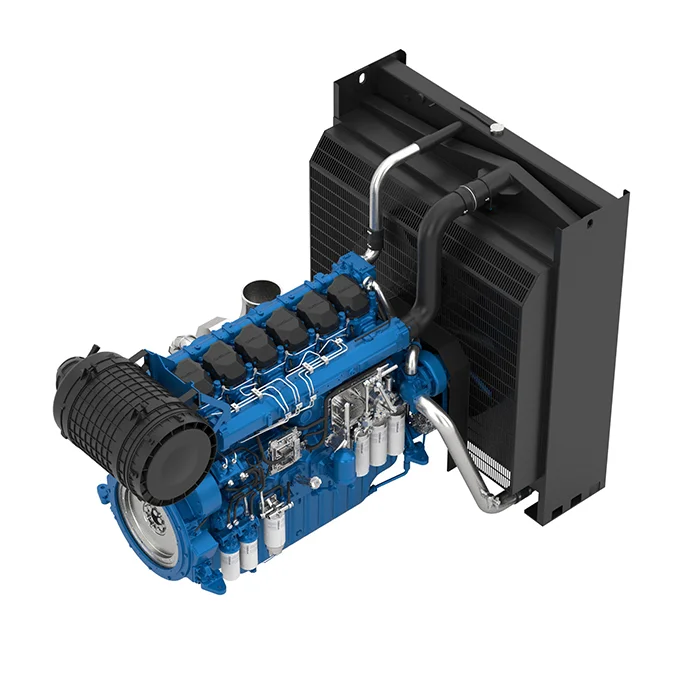

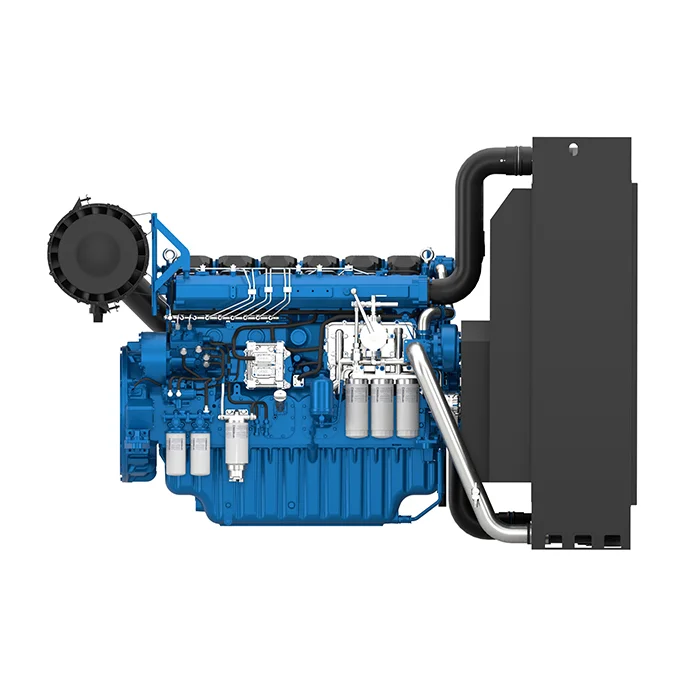

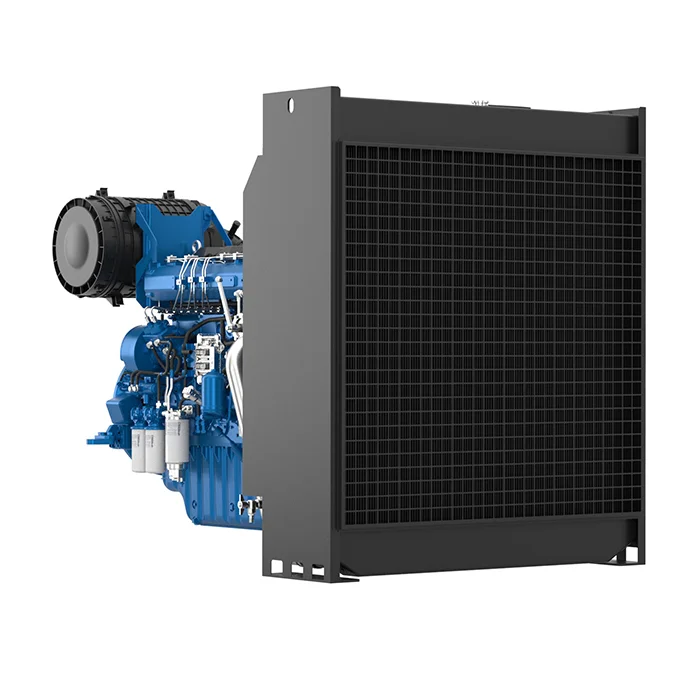

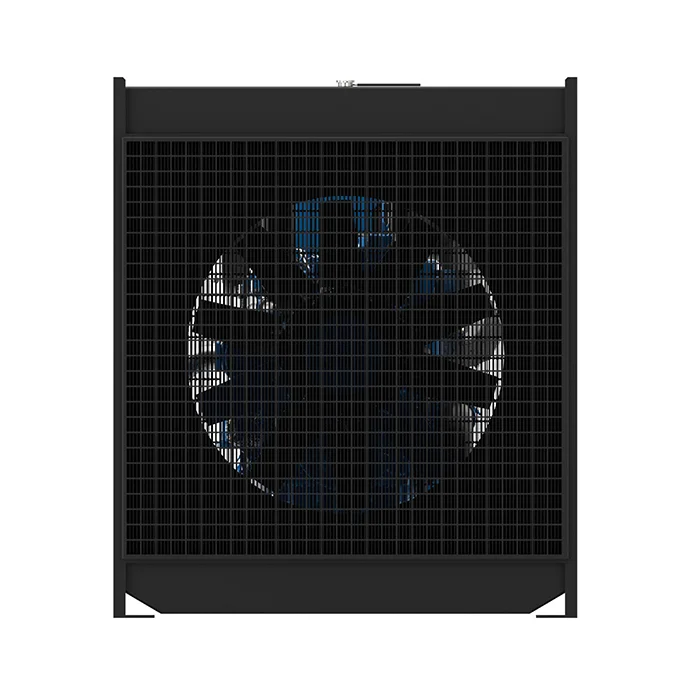

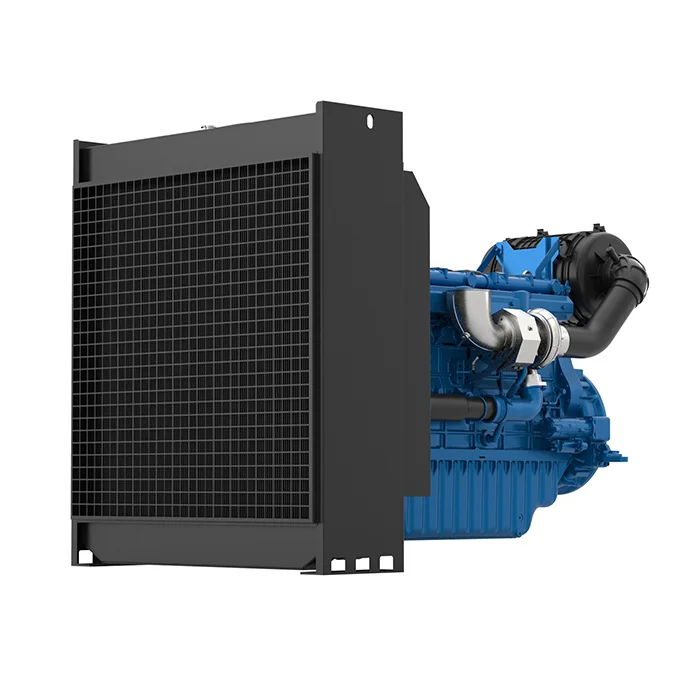

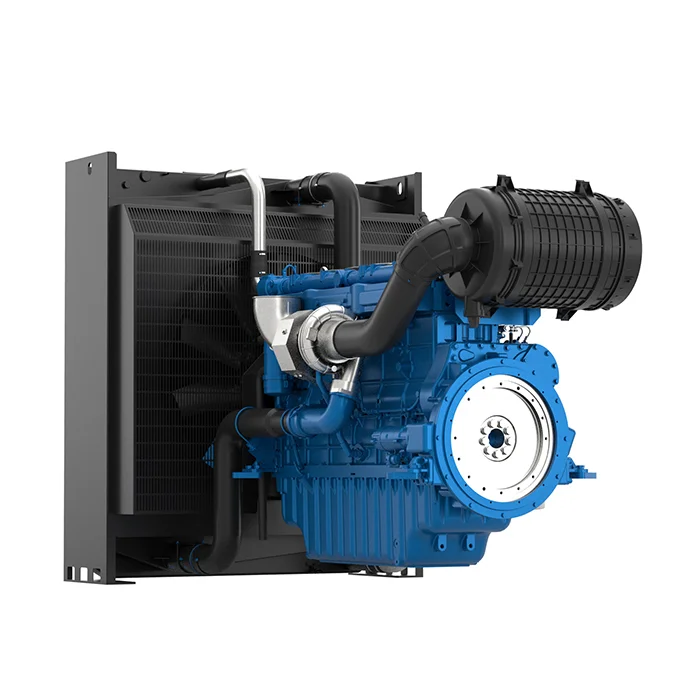

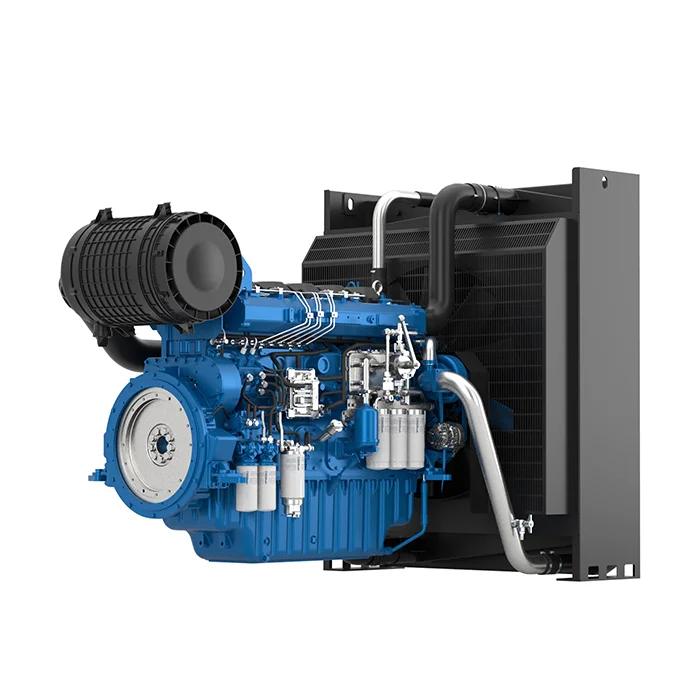

6M33 PowerKit diesel

Overview

The 6M33 PowerKit diesel is a 6-cylinder in-line engine with a bore & stroke of 150x185 mm and a total displacement of 19.6 L. The fuel system is High Pressure Common Rail/ Mechanical, the governor is ECU/ Electronic, and aspiration is Turbocharged & air-to-air cooled. 50Hz PowerKit variants: 6M33G2D0/S — Gross Engine Output PRP 575 kWm and ESP 633 kWm; Typical Generator Output PRP 520 kWe / 650 kVA and ESP 572 kWe / 715 kVA. 6M33G750/5 — Gross Engine Output PRP 610 kWm and ESP 670 kWm; Typical Generator Output PRP 544 kWe / 680 kVA and ESP 600 kWe / 750 kVA. 6M33G6D0/S — Gross Engine Output PRP 675 kWm and ESP 725 kWm; Typical Generator Output PRP 600 kWe / 750 kVA and ESP 660 kWe / 825 kVA. 60Hz PowerKit variants: 6M33G1D0/S — Gross Engine Output PRP 575 kWm and ESP 633 kWm; Typical Generator Output PRP 520 kWe / 650 kVA and ESP 572 kWe / 715 kVA. 6M33G600/6 — Gross Engine Output PRP 610 kWm and ESP 670 kWm; Typical Generator Output PRP 550 kWe / 688 kVA and ESP 600 kWe / 750 kVA. 6M33G633/6 — Gross Engine Output PRP 645 kWm and ESP 710 kWm; Typical Generator Output PRP 575 kWe / 719 kVA and ESP 633 kWe / 791 kVA. 6M33G6D0/S — Gross Engine Output PRP 670 kWm and ESP 740 kWm; Typical Generator Output PRP 600 kWe / 750 kVA and ESP 660 kWe / 825 kVA. DCP (Data Centre) models and ratings: 50Hz — 6M33G715/5 DCP 575 kWm, Data Centre Genset Power 520 kWe / 650 kVA, Speed 1500 RPM; 6M33G825/5 DCP 675 kWm, Data Centre Genset Power 600 kWe / 750 kVA, Speed 1500 RPM. 60Hz — 6M33G580/6 DCP 575 kWm, Data Centre Genset Power 520 kWe / 650 kVA, Speed 1800 RPM; 6M33G660/6 DCP 670 kWm, Data Centre Genset Power 600 kWe / 750 kVA, Speed 1800 RPM. The PowerKit listings provide Typical Generator Output ratings for 50Hz and 60Hz configurations, specifying kWe and kVA outputs for generator set use. Separate DCP entries specify Data Centre Engine Power and Data Centre Genset Power with associated speeds of 1500 RPM for the 50Hz DCP models and 1800 RPM for the 60Hz DCP models.
