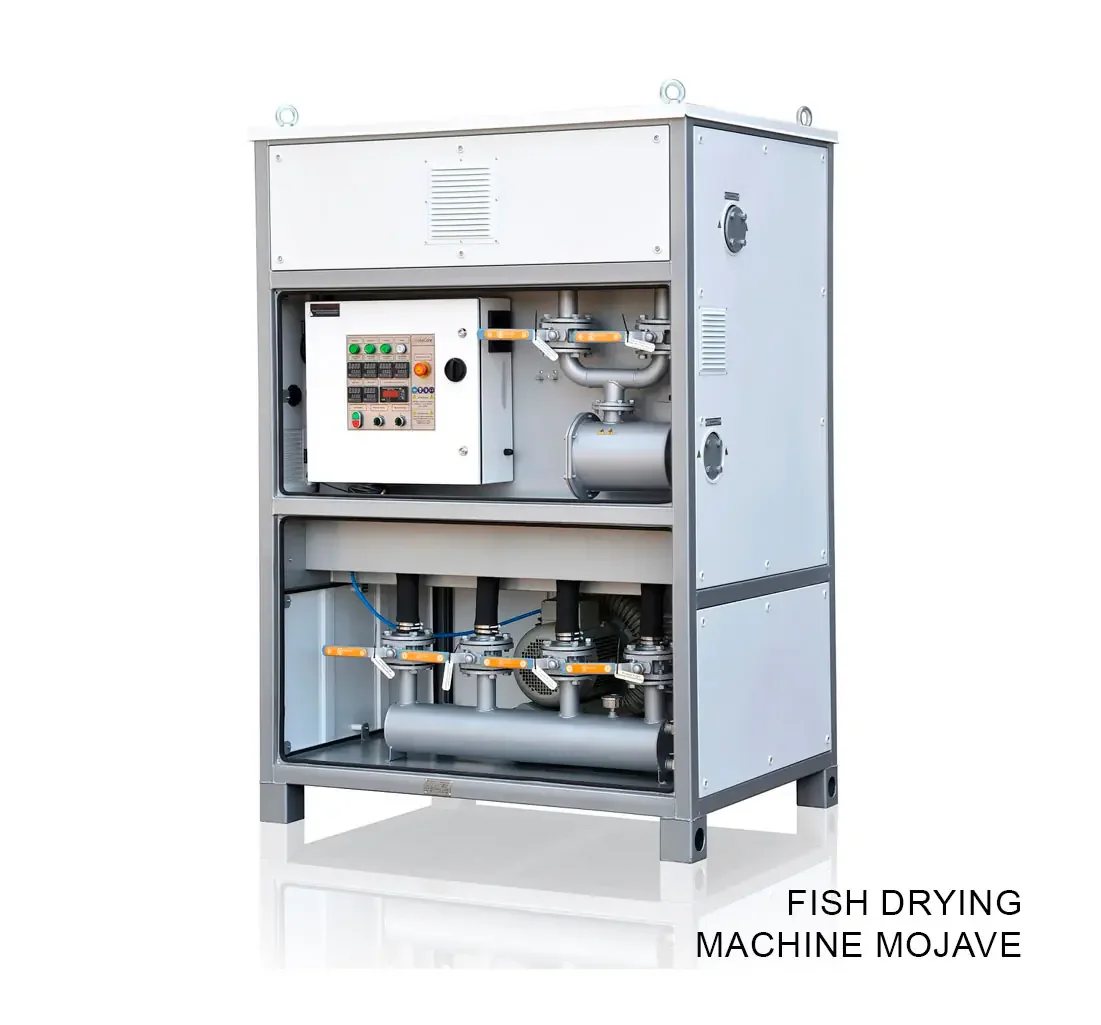

Fish drying machine Mojave

Overview

The Mojave fish drying machine by Globecore is made to effectively dry fish used in the food sector and guarantees consistent moisture extraction while maintaining nutritious value, flavor, and aroma. The unit features modern air circulation technology, accurate temperature management, and even heat distribution to determine ideal drying conditions for various fish species. The machine is described as small and portable with a straightforward control system, low maintenance requirements, and low energy use, and is appropriate for use in industrial plants due to a quick and cost-effective drying process. Two variants are specified: Mojave Heat 0.7 and Mojave Heat 4. - Mojave Heat 0.7: Dry air capacity, m3 /minute, min / cubic yard: 1.7/2.223; Dry air dew point, °C/°F, max: -50/-58; Dry air pressure, MPa/bar, max: 0.018/0.18; Max dry air temperature, °C/°F: 90±15/194±27; Adsorbent load, kg/lbs, max: 190/419.9; Number of adsorbers: 1; Zeolite regeneration temperature, °C/°F, max: 430/806; Air heater power, kW, Max: 24; Nominal power consumption, kW max - Air drying (normal operating mode): 1; Nominal power consumption, kW max - Sorbent regeneration in one adsorber: 25; Nominal power consumption, kW max - Sorbent regeneration in two adsorbers: –; Nominal power voltage at 50Hz/ 60Hz, V: 380; Output air temperature for regeneration of external adsorbents, °C/°F, max: 430/806; Duration of adsorbent regeneration, hours: 4; Dry air filtration fineness, micron: 5; Dimensions, mm/in, max - length: 1350 (53), width: 800 (32), height: 1700 (67); Weight, kg/lbs, max: 550 (1210). - Mojave Heat 4: Dry air capacity, m3 /minute, min / cubic yard: 2.5/3.27; Dry air dew point, °C/°F, max: -50/-58; Dry air pressure, MPa/bar, max: 0.025/0.25; Max dry air temperature, °C/°F: 90±15/194±27; Adsorbent load, kg/lbs, max: 190/419.9; Number of adsorbers: 2; Zeolite regeneration temperature, °C/°F, max: 430/806; Air heater power, kW, Max: 24; Nominal power consumption, kW max - Air drying (normal operating mode): 5.5; Nominal power consumption, kW max - Sorbent regeneration in one adsorber: 30; Nominal power consumption, kW max - Sorbent regeneration in two adsorbers: 55; Nominal power voltage at 50Hz/ 60Hz, V: 380; Output air temperature for regeneration of external adsorbents, °C/°F, max: 430/806; Duration of adsorbent regeneration, hours: 2-4; Dry air filtration fineness, micron: 5; Dimensions, mm/in, max - length: 1500 (59), width: 1120 (44), height: 2120 (83); Weight, kg/lbs, max: 1050 (2315). The Mojave machine is made to dry fish used in the food sector and is stated to be perfect for making smoked, dried, and dried fish. Its modern air circulation, accurate temperature management, even heat distribution, and straightforward control system allow operators to adjust parameters and monitor the process in real time for quick and cost-effective drying in industrial plants. The unit’s small size and portability permit setup at different production locations.
