SMART Ua STEEL

Overview

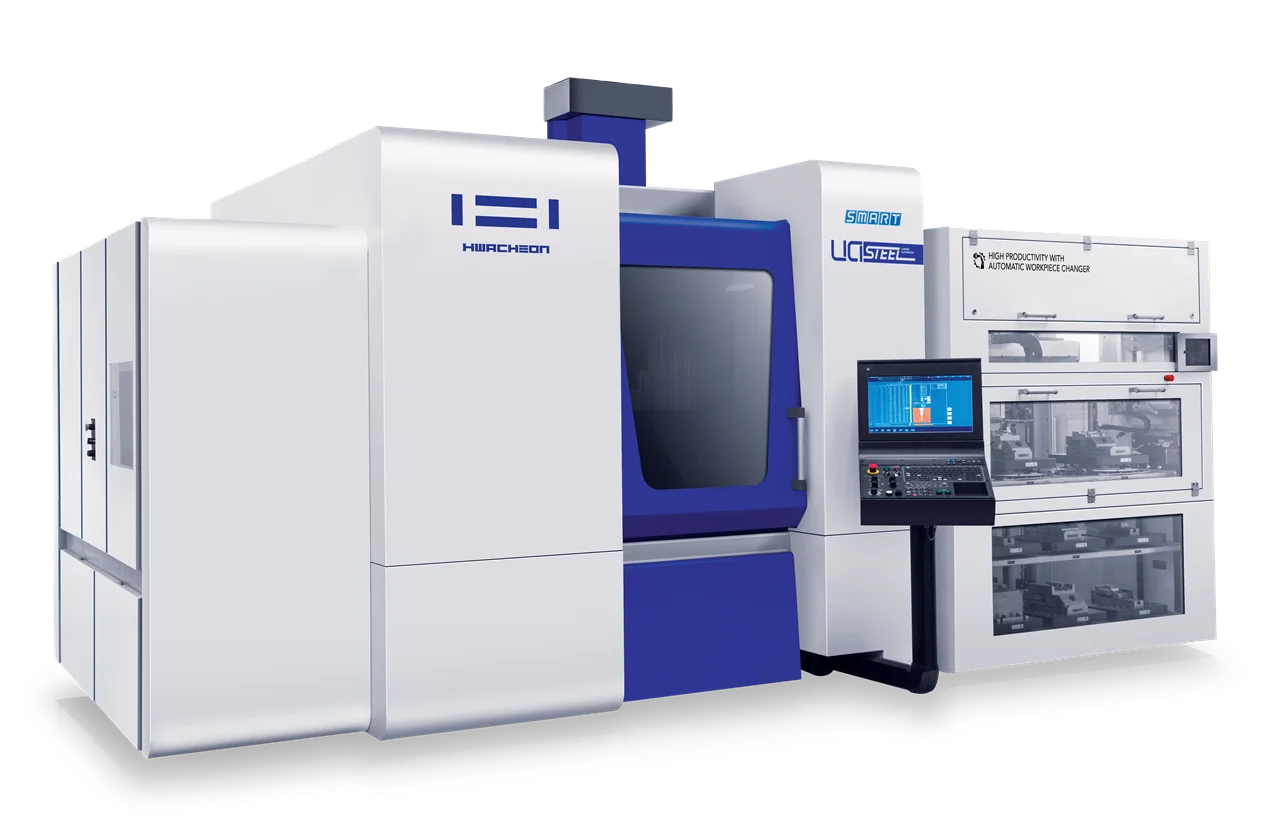

SMART Ua STEEL is an Artificial Intelligence Smart Machine optimized for machining small steel mold and is described as the world’s first AI Smart Machine integrated with Hwacheon’s future convergence software, machining know-how and automation technology. Inputting CAD data allows the machine to automatically perform CAM calculation and machining. Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining, and Hwacheon software installed on the machine is stated to improve productivity and precision while providing consistent machining quality. Available variants are 12K, 14K, 20K, and 24K. Common axis strokes are X-axis: 1,050 mm, Y-axis: 600 mm, and Z-axis: 550 mm; distance from table surface to spindle gauge plane is 150 ~ 700 mm; distance between columns is 1,076 mm; working surface is 1,200 x 600 mm; table loading capacity is 800 kgf (Magnetic Table : 700); table surface configuration (T slots W x P) is 18 x 100 / 5ea. Variant-specific and other key specifications: Max Spindle Speed (rpm) — 12K: 12,000; 14K: 14,000; 20K: 20,000; 24K: 24,000. Spindle Motor (kW) — 12K: 37 / 18.5; 14K: 37 / 22; 20K: 37 / 18.5; 24K: 37 / 18.5. Type of Spindle Taper Hole — ISO#40, 7/24 Taper (BBT-40) for 12K/14K/20K/24K. Spindle Bearing Inner Diameter (mm): Ø70. Type of Spindle: Built-in Motor. Method of Spindle Lubrication: Oil Jet. Method of Spindle Cooling: Jacket Cooling (Oil Cooler). Type of Coolant listed for 12K: Spindle Oil [ISO VG 10]. Rapid Traverse (X / Y / Z): 36 / 36 / 36 m/min. Servo Motor (X / Y / Z): 4 / 4 / 7 kW. Coolant Motor (Spindle / Coolant Gun): 0.75 / 0.75 kW. Spindle Cooler (50/60Hz): 5 / 5.6 kW. Type of Tool Shank: 12K–20K: MAS-403 BBT-40 (Opt.: CAT-40 / SK-40 / HSK-A63); 24K: HSK-A63. Type of Pull Stud: MAS P40T-1 (45°). Tool Storage Capacity: 120 ea. Max. Tool Diameter (with / without Adjacent Tools): Ø90 / Ø170 mm. Max. Tool Length: 300 mm. Max. Tool Weight: 8 Kgf. Method of Tool Selection: Fixed Address. Electric Power Supply: 55 kVA. Compressed Air Supply (Pressure x Consumption): 0.5~0.7MPa x 690Nℓ/min. The machine is optimized for machining small steel mold. By inputting CAD data the machine can automatically perform CAM calculation and machining, which the product text states dramatically increases user productivity. Cooling of the spindle and frames is described as minimizing thermal deformation to maintain high precision during long-time machining, and the installed Hwacheon software is described as improving productivity, precision and providing consistent machining quality.
