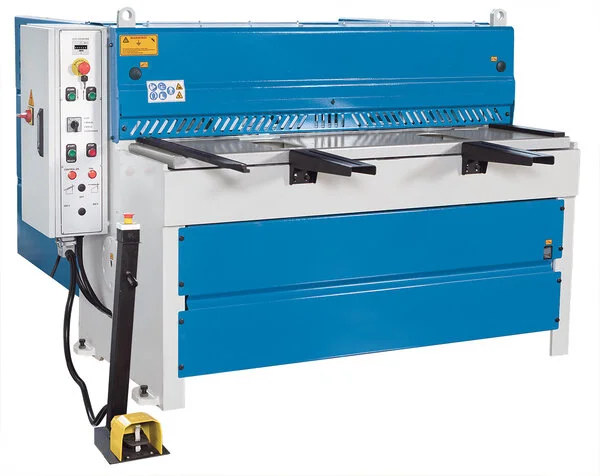

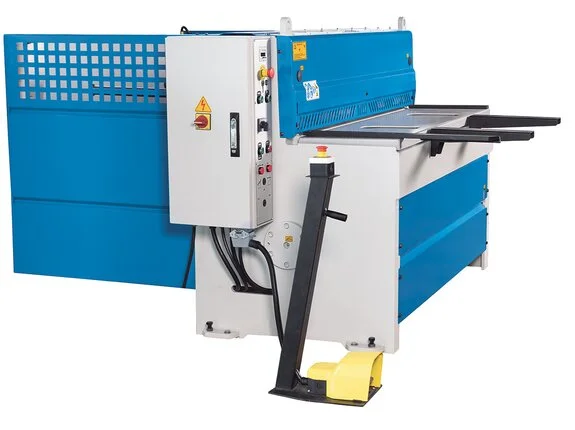

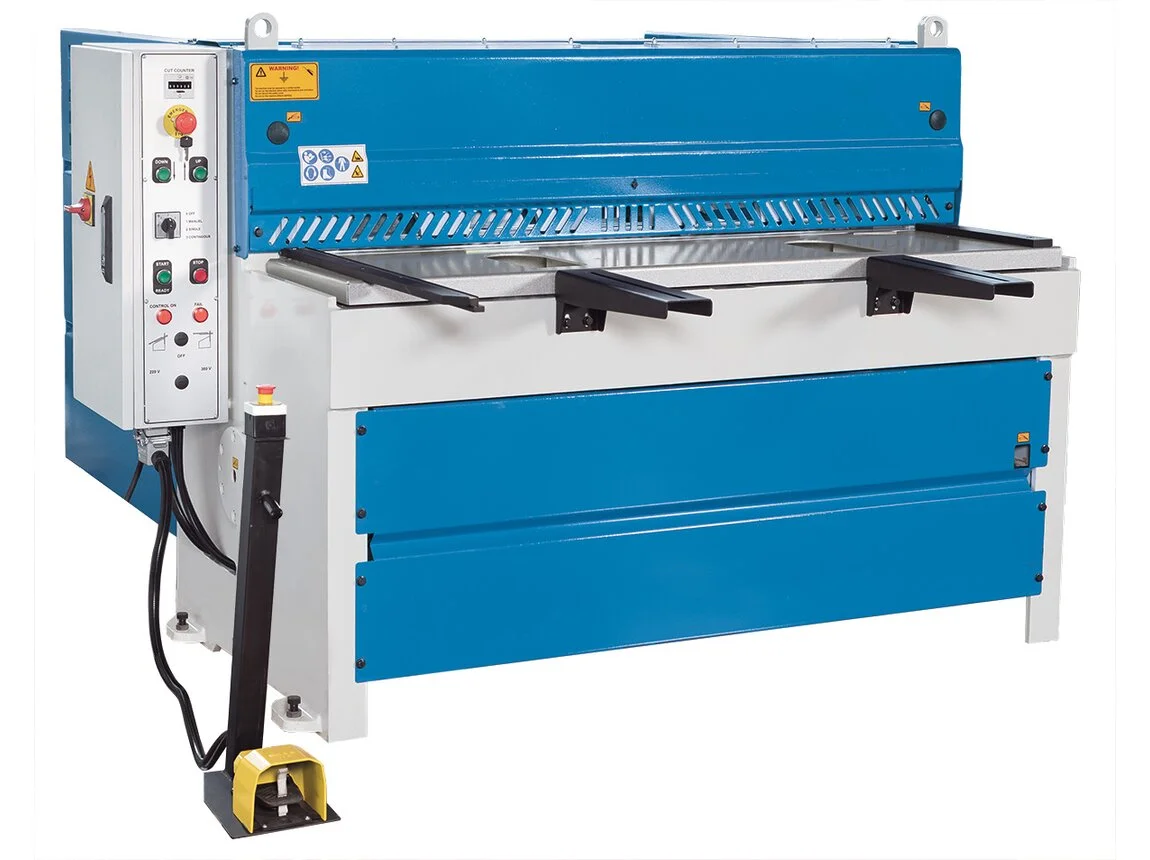

MOTORIZED GUILLOTINE SHEAR KMT M 2003

Overview

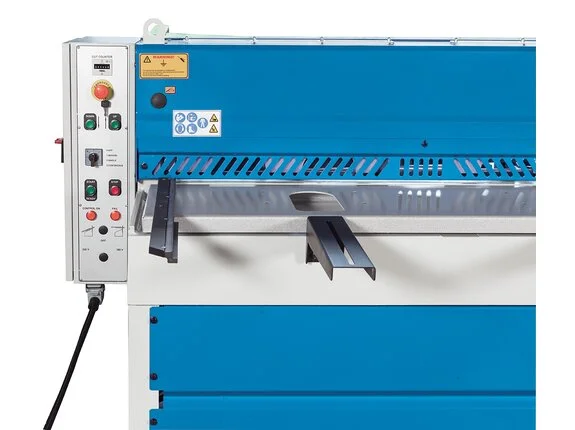

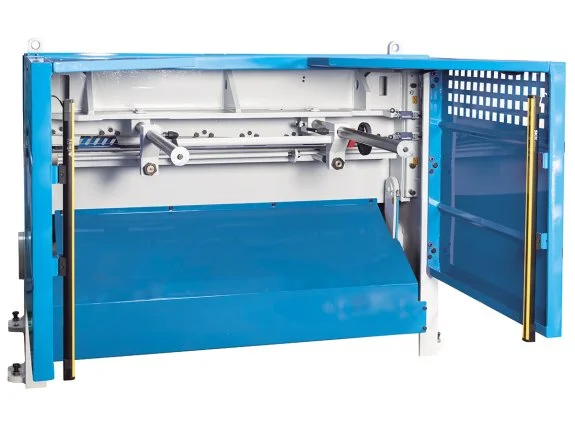

MOTORIZED GUILLOTINE SHEAR KMT M 2003 is built on a very rigid, solid steel weldment frame with a sliding-block guided cutter bar and a straight cutting angle of 1.3 deg to minimize workpiece torsion during cutting. The machine has a working length of 81 in and overall dimensions of 105 in x 83 in x 50 in with a weight of 3850 lbs. Plate cutting capacities are specified as: plate thickness (min.) - 450 N/mm²: 0.01 in; plate thickness (max.) - 450 N/mm²: 0.118 in; plate thickness (max.) - 700 N/mm²: 0.059 in. Operational and support specifications include a work table height of 32 in, work table depth of 15 in, rear stop of 30 in, 2 support arm positions with 18 in support arms, and a stroke rate of 35 H/min driven by a 5.4 Hp main drive motor. The machine is supplied with cutters for stainless steel cutting, reversible upper cutters, lower cutters with 4 cutting edges, a rigid continuous hold-down, manual back gauge with travel display and analog linear scale, LED cut-line illumination, an integrated cut counter, a mobile foot switch, full machine enclosure, and a work area secured by a light curtain. The KMT M 2003 is used for guillotine-style cutting of sheet metal plates, including stainless steel, where clean, high-precision cuts are required. Manual positioning of the high-precision back gauge via hand wheel and analog linear scale supports exact part positioning and repeatable cuts while the integrated cut counter records production quantities. Wide support table, 18 in support arms, a mobile foot switch for hands-free operation, and a light curtain for rear-gauge area safety support handling and cutting of larger plates.
