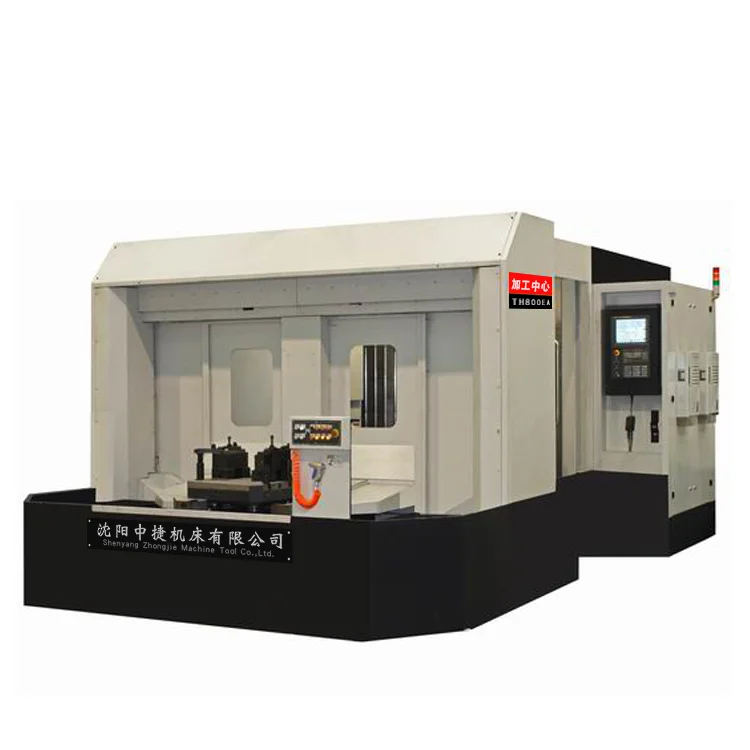

TH800EA Dual-Pallet Horizontal Machining Center

Overview

The TH double exchange worktable series is a full-function horizontal machining center developed by the company on the basis of mass-produced machining centers while absorbing and digesting advanced domestic and foreign technologies. Its main features are large tool magazine capacity, fast tool change speed, high spindle rotational speed, and fast three-axis rapid movement, enabling fast cutting and improved machining efficiency. It provides functions for high-speed milling, boring, reaming, and rigid tapping. Worktable size (L×W): 800×800; worktable quantity: 2; T-slot width×number: 25mm×5; worktable center hole diameter: Φ75H7; maximum table load: 2200kg. Axis travels: X: 1500, Y: 1200, Z: 1200; maximum workpiece diameter×maximum height: Φ1500×1300 mm; spindle nose to table middle distance: 180～1380 mm; spindle centerline to table surface distance: 100～1300 mm. Worktable rotation angle: ±360°; minimum rotation input angle (B axis): 0.001o; table exchange time: 46Sec; simultaneous controlled axes: four-axis four-linkage. Control system: FANUC/Siemens. Spindle motor power: 37/54kW; spindle speed: 40～6000rpm; spindle taper: ISO50; spindle speed change method: stepless; spindle taper cleaning method: air; spindle cooling method: constant-temperature oil tank; bearing lubrication medium: grease. Rapid traverse: X/Z axes: 30000 mm/min, Y axis: 20000 mm/min; feed rates X/Y/Z axes: 1～10000mm/min, B axis: 1～1800o/min. Tool shank: BT50/BT40; 48-position chain-type tool magazine; maximum tool weight: 25kg. Electrical cabinet: sealed and equipped with an air conditioner; air source: 0.3m3/min; machine overall dimensions: 10000×5800×3500mm. The machine is described as suitable for aerospace and aviation, automotive and locomotive, instruments and meters, light industry and textiles, electronic and electrical appliances, small molds and various machine manufacturing industries. It can be used for medium and small batch, multi-variety production and is stated to be more suitable for linking into production lines to carry out large-batch production.
