UG3 Universal Goniometer

Overview

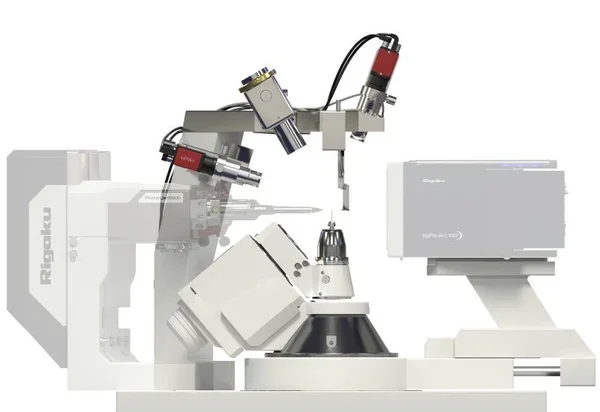

The UG3 Universal Goniometer is a third-generation Universal Goniometer for XtaLAB Synergy X-ray diffractometers, engineered together with the motorized goniometer head IGH3 to allow a slimmer profile and a cable-free design. The UG3 delivers a 25% increase in speed over its predecessor while utilizing stepper motor technology for accuracy and reproducible positioning. It is equipped with advanced robotic position sensors that precisely track goniometer movement and always know its exact position—even after a power outage. A redesigned detector axis and optimized motor housings enable wider, more symmetrical scans and a reduced collision profile. Additional features include fully software-controlled sample lighting with brighter illumination for improved sample visualization (including in droplets), seamless integration with the IGH3 motorized goniometer head, and Up to 40%* more efficient strategy. * depends on instrument configuration The UG3 is described as designed to meet the demands of modern crystallography on XtaLAB Synergy X-ray diffractometers. It supports faster experiments by delivering a 25% increase in speed over its predecessor and enabling wider, more symmetrical scans for more efficient data collection. When paired with the optional IGH3 motorized goniometer head, the system enables safer, hands-free sample centering using automatic centering by X-ray signal optimization, AI-powered optical sample recognition, or manual point-and-click methods, while brighter, software-controlled lighting improves sample visualization.
