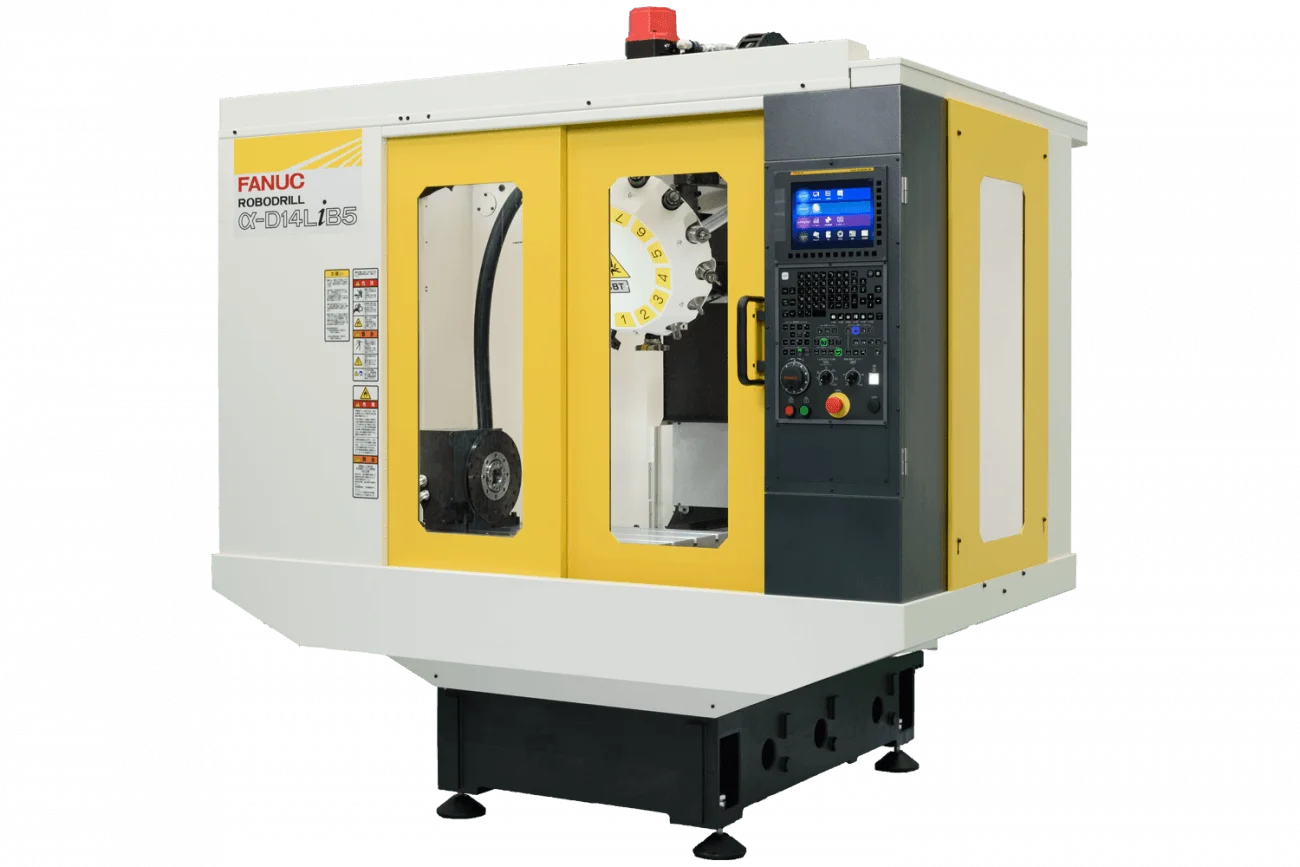

FANUC RoboDrill 21-Tool Long Bed RD Series

Overview

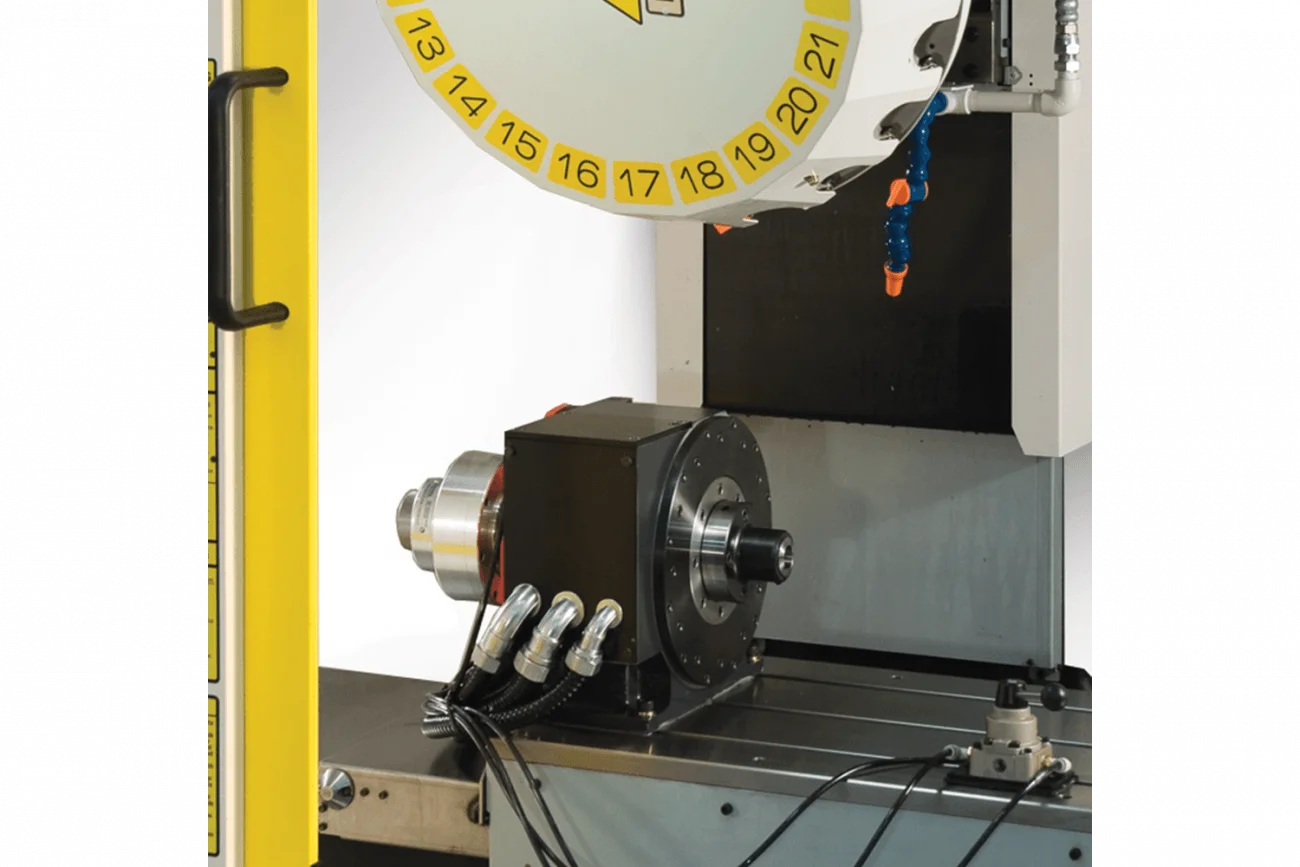

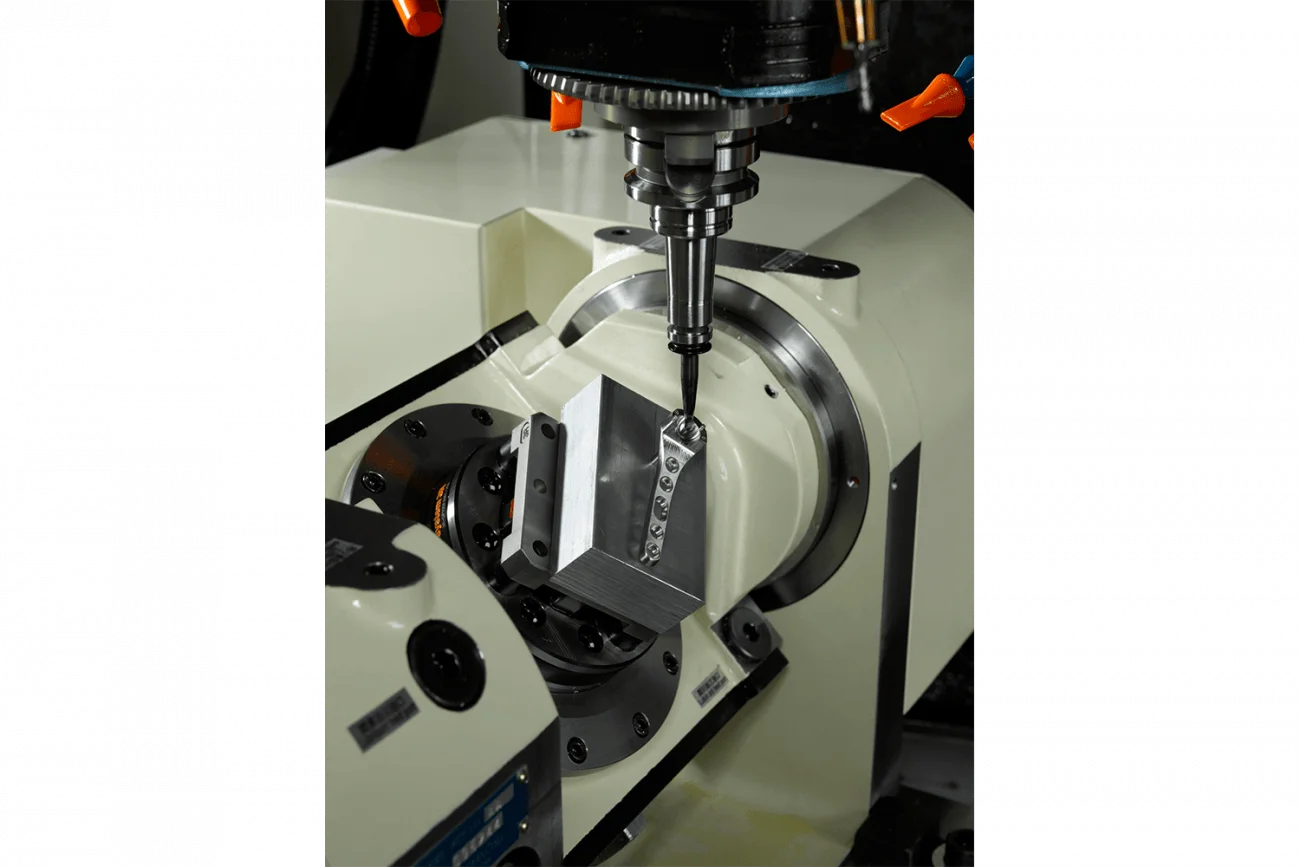

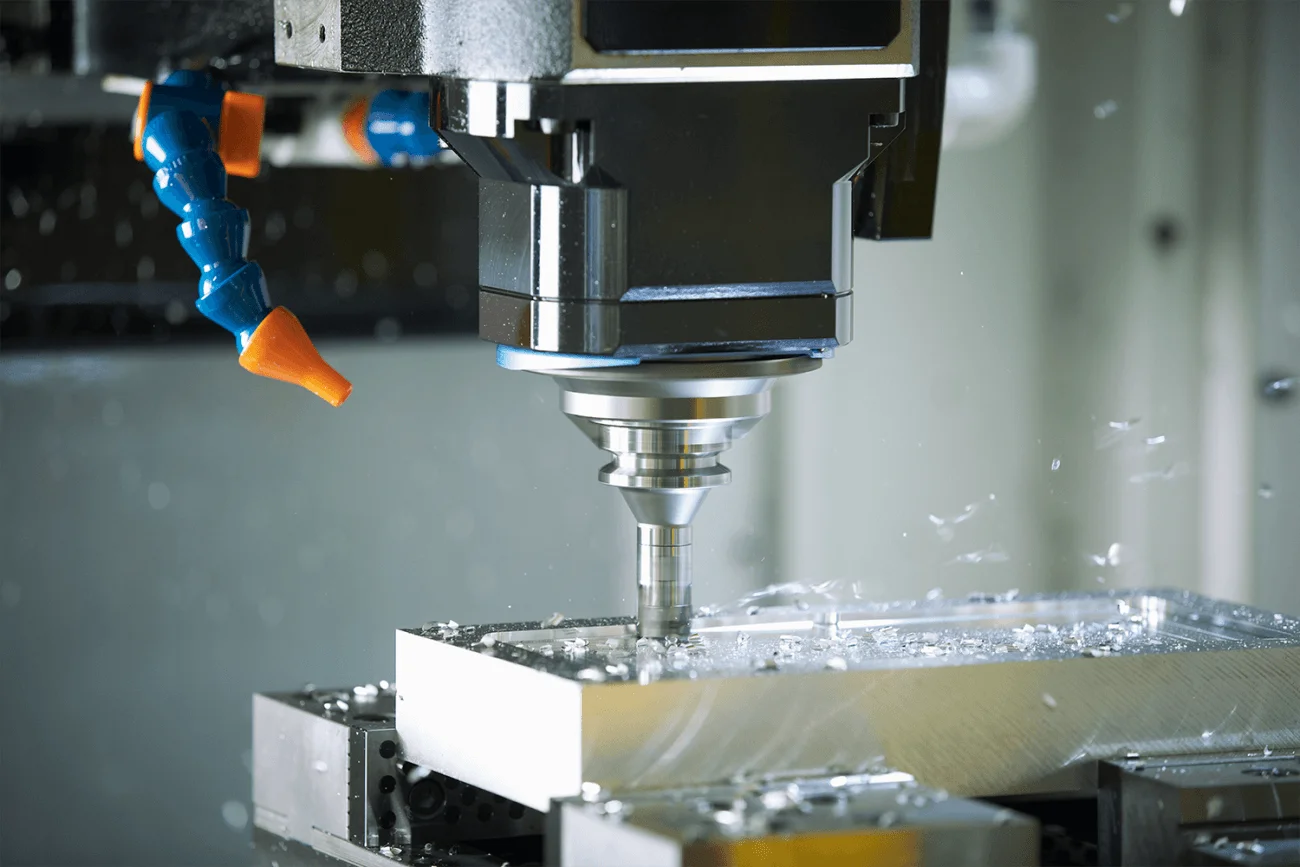

FANUC RoboDrill 21-Tool Long Bed RD Series equipped with Fanuc 31i-B5 CNC control. Work table 33.5" x 16.1" (851 mm x 409 mm) with 660 lbs (300 kg) table capacity and a spindle-to-table distance of 18.9" (480 mm). Machine weight 4,620 lbs (2,096 kg). X-Y-Z travels: 27.6" (700 mm) × 15.7" (400 mm) × 13" (330 mm). Long-bed configuration with 27.6" X travel and a 14-tool turret (21-tool optional) supports longer workpieces and higher tool-count production runs where short cycle times and frequent tool changes are required. High-speed spindle options listed as 10,000 rpm / 24,000 rpm with BT-30 taper and rapid traverses of 1889 in/min (41 m/min) on X, Y and Z make the machine suitable for high-speed milling and drilling of small-to-medium components and finishing operations rather than heavy roughing. Tool handling and cycle-time characteristics include maximum tool length 9.8" (249 mm), maximum tool diameter 3.14" (80 mm), tool-to-tool change time 0.9 sec and chip-to-chip change time 1.6 sec (with table motion); the machine can be specified for up to 5-axis simultaneous control and up to 2gb optional programming memory for complex programs and longer tool lists.
