R3K-TW

Overview

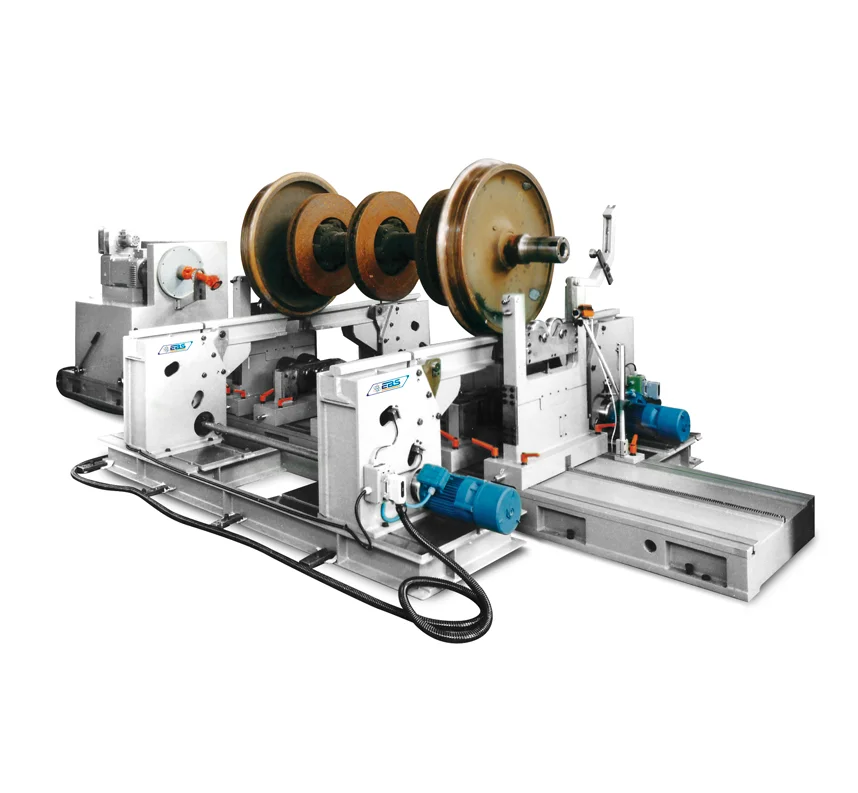

R3K-TW is a special version of the horizontal balancing machine R3K-G, suitable for the balancing of railway wheels mounted on their axle. The machine is equipped with the high-sensitivity touchscreen monitor EQ21S-TS and can be fitted with mesh safety guards or telescopic tunnel-type guards for operator protection. It is based on a standard machine fitted with an automatic loading system that allows receiving the axle directly from the tracks. The drive system can be via a cardan joint or via motorized rubber rollers that transmit movement to the wheels. - Maximum rotor weight: 3000 kg - Maximum weight for symmetric rotor: 4500 kg - Maximum diameter on the bed: 1600 mm - Journals diameter (min - max): 20  200 mm - Standard bed lenght: 4500 mm - Maximum sensitivity: 6 g mm - Type of motor drive: Motorized joint / rollers Explicitly intended for the balancing of railway wheels mounted on their axle, with an automatic loading system that permits receiving the axle directly from the tracks. Optional accessories and features support related operations: printer to generate balancing certificates; angular position indication useful in machines with belt drive; brake locking to assist in correcting imbalance; rotor standard according to ISO2953 and test masses for machine verification; additional bed for very long rotors; counter support for balancing cantilevered rotors; special rollers for axle diameters outside standard values; special cradle supports for balancing rotors in their own bearings; and automatic angular positioning.
