MSR60

Overview

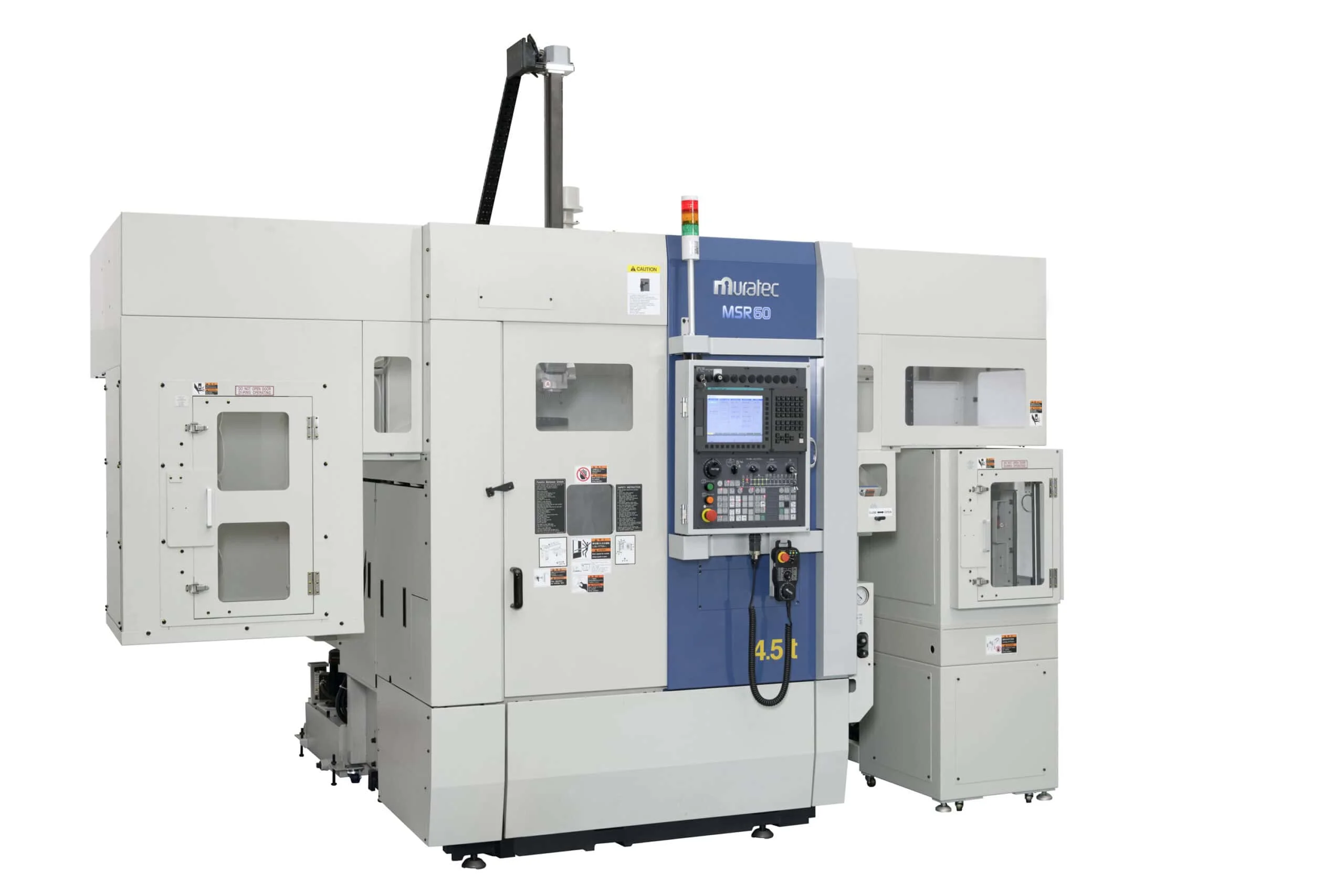

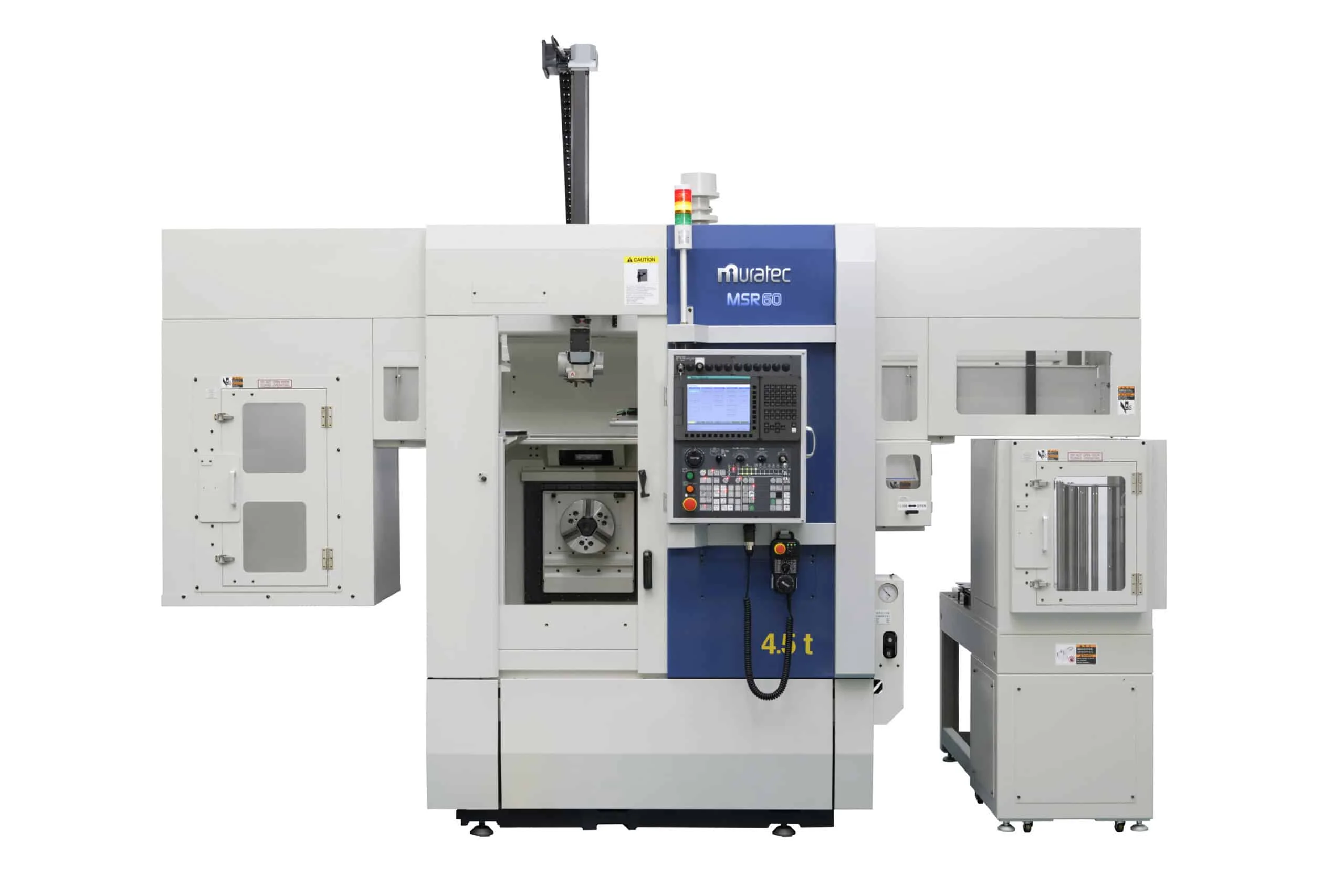

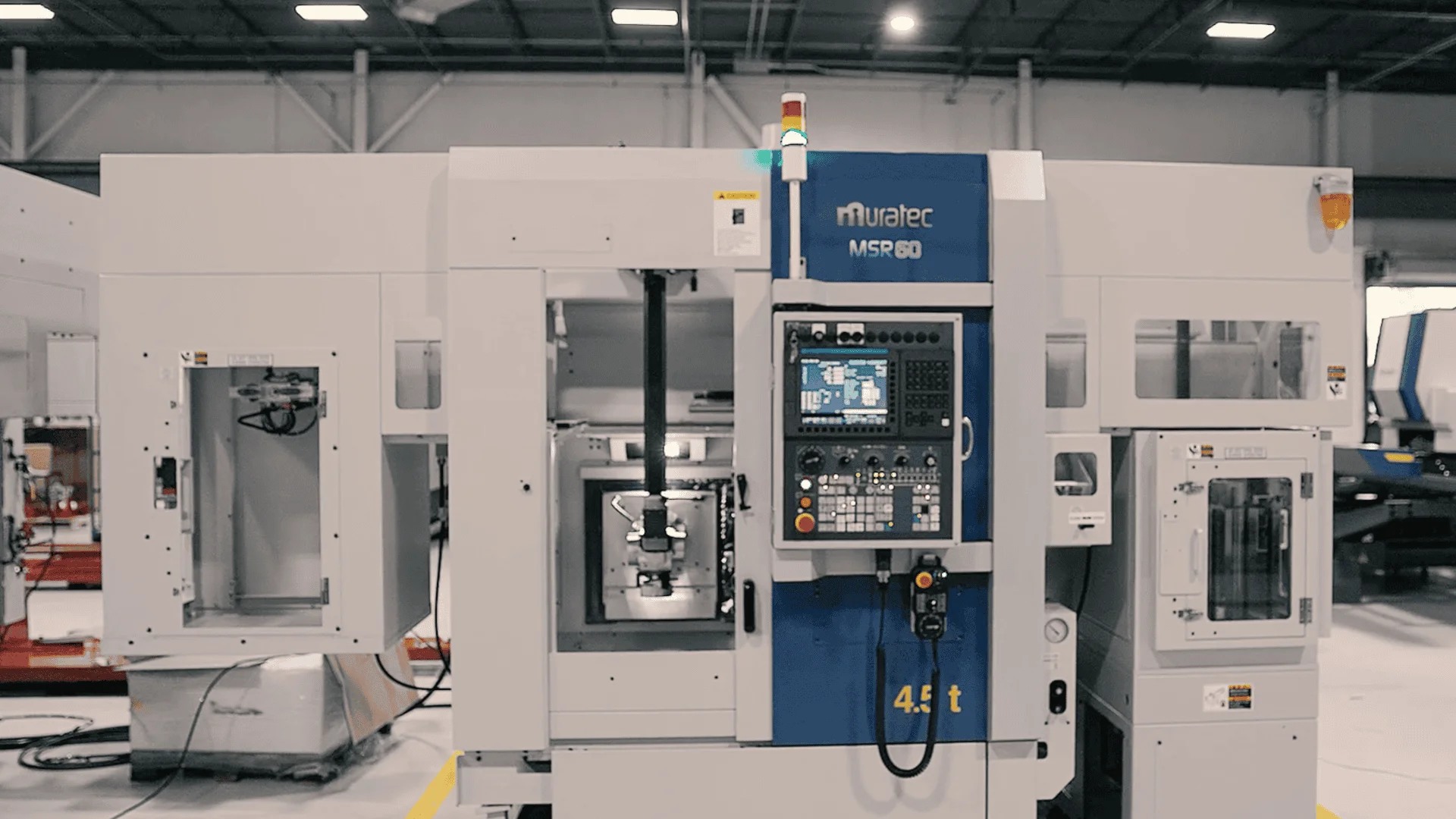

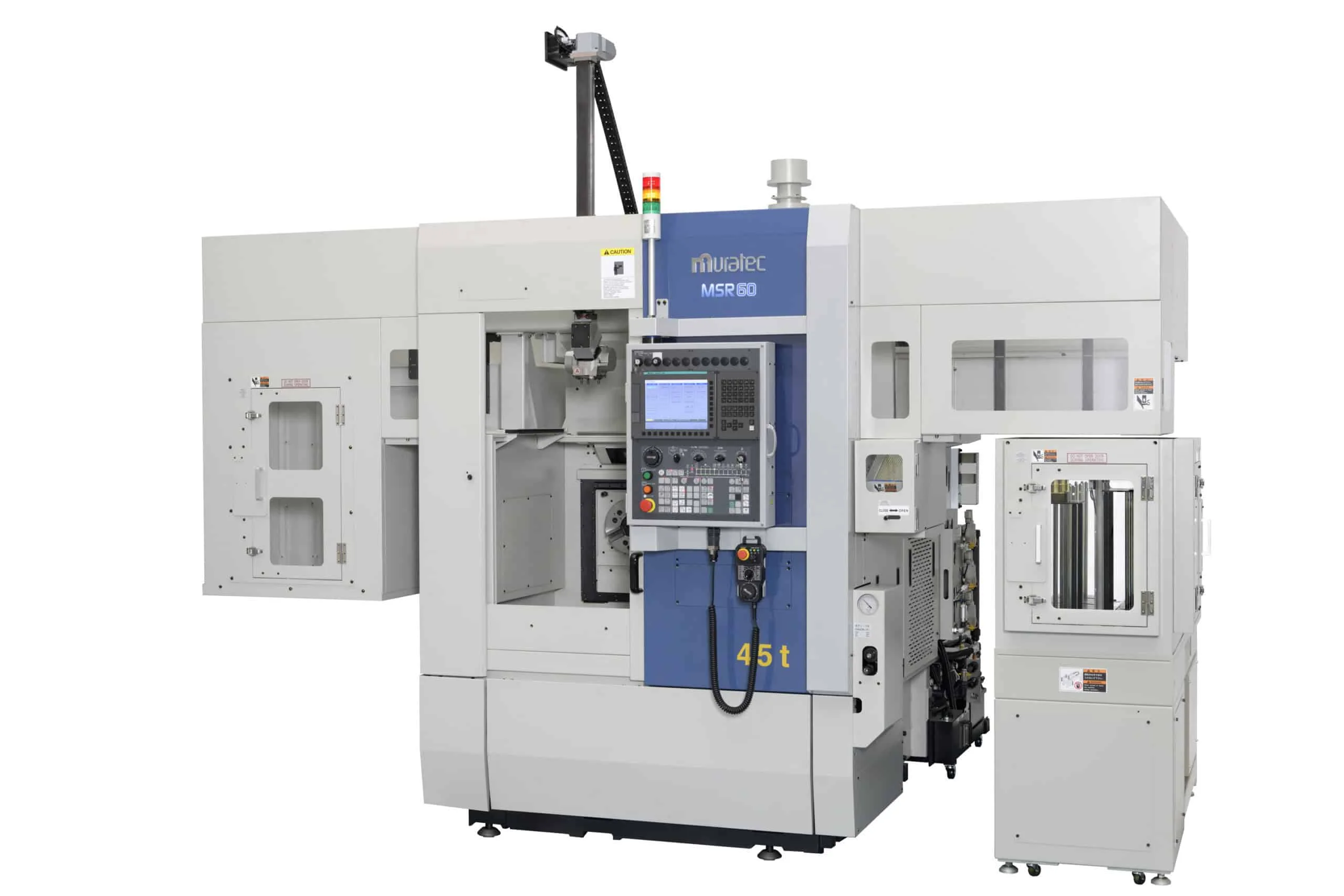

MSR60 is a front-facing single-spindle CNC Turning Center with Y-axis milling engineered for high-speed precision and a compact footprint. It maximizes productivity with built-in gantry loader automation and shares the same construction design and overall functionality as the twin-spindle MWR120 while being half the size. Configurations: (G) Gantry, (Y) Y-Axis, (MC) Live Tool; Chuck Size: 6", 8"; Number of Turret Stations: 10; Spindle Drive Motor/Maximum Speed: 11 kW S6 25%×2/6,000 rpm; Live Tool Drive Motor/Maximum Speed: 5.5 kW（S3/S6 25% )/8,000 rpm; Maximum Swing Diameter: Φ500mm; Maximum Turning Dimensions: φ230mm×145mm; Travel Distances: X-axis 240mm, Z-axis 200mm, Y-axis ±60mm (all guided by rollers); Live Tool Spindle Speed: 8,000-rpm. Gantry loading features a FANUC AC servo motor and an optional dual gantry loader for automated material handling. It accelerates the multitasking of complex shapes and eliminates the need for secondary operations by integrating turning and milling. Its compact design and built-in automation maximize productivity in high-mix, low-volume production through a space-saving layout. Gantry loading with a FANUC AC servo motor and an optional dual gantry loader enables efficient, automated production for diverse workpieces and medium lot-size runs. Industries: Aerospace & Government, Automotive & Transportation, Consumer Product Goods, Food & Beverage, Healthcare & Medical, Machine & Jobs Shops, Manufacturing & Industrial, Utilities.
