DWS wheel sets

Overview

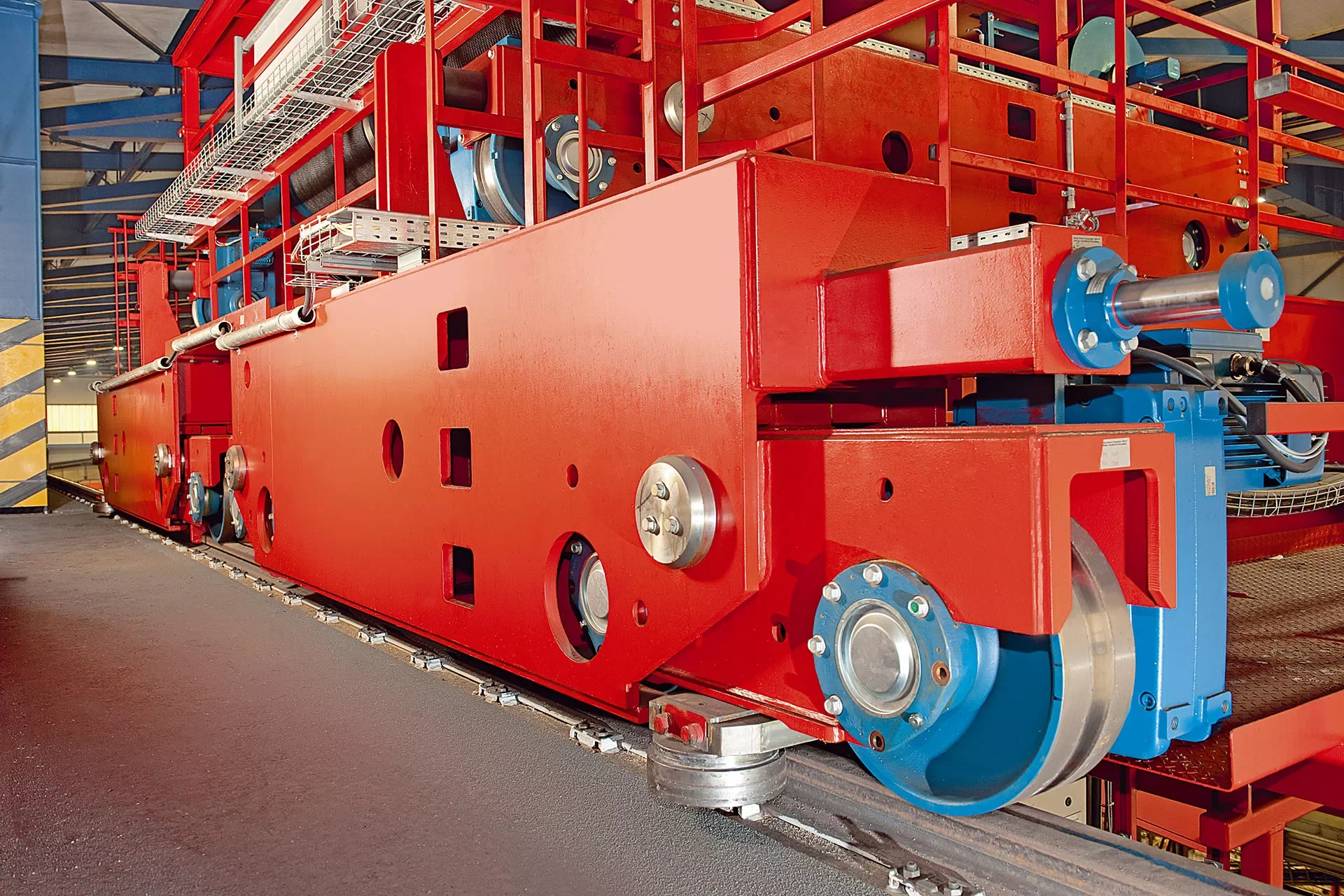

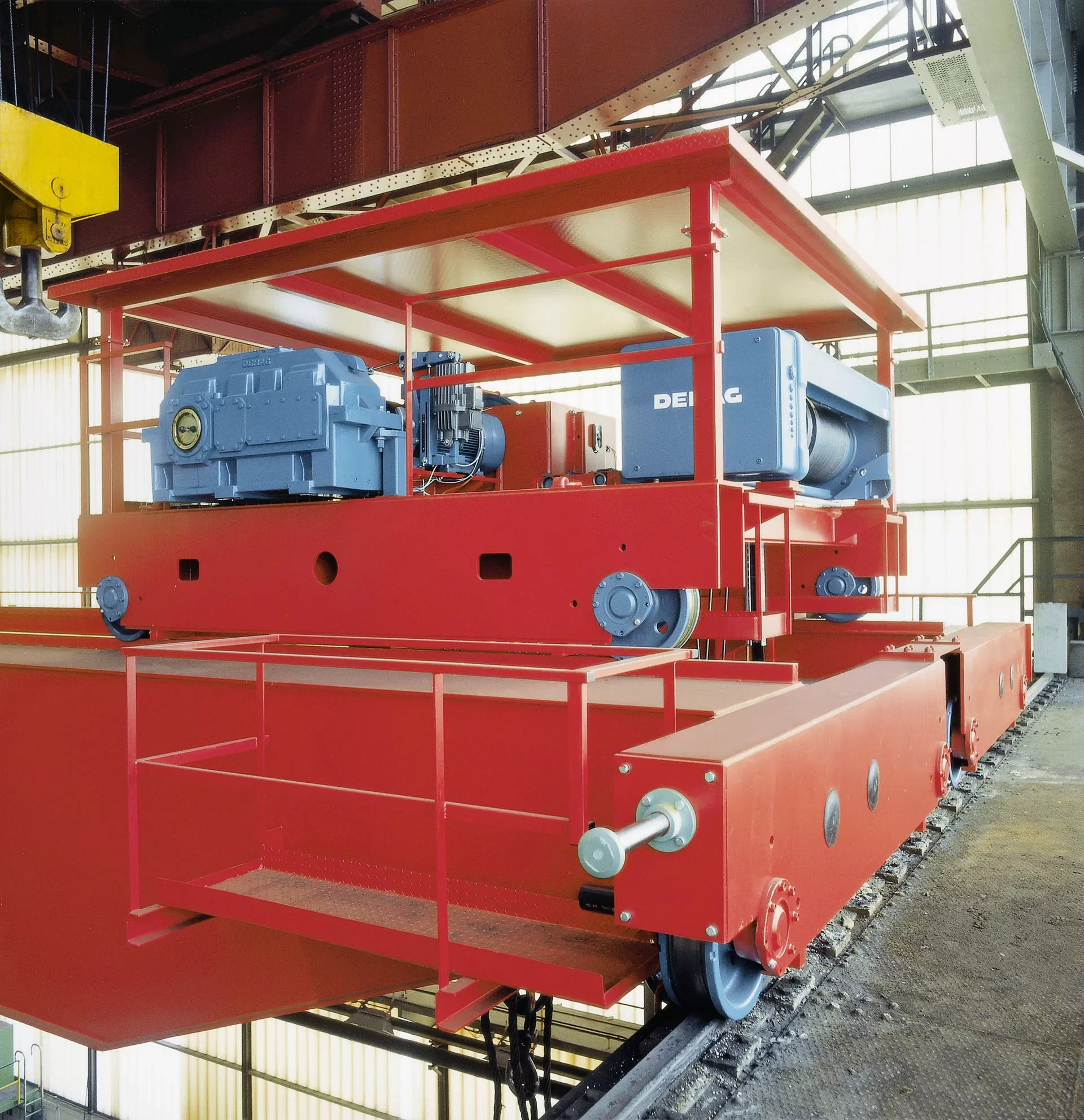

DWS wheel sets perform rail transport, including for heavier loads, and are used to build complete travel units of driven and non-driven design. They are equipped with Demag offset and right angle gear motors from the modular range of industrial drives and are manufactured as series components offering a high level of functional reliability and ease of installation when the wheel is replaced. DWS wheel sets can be installed in hollow profile sections, box-section girders and used as corner-bearing travel units, and the entire wheel set can be installed without the need for complicated alignment in corner bearing arrangements. Complete configuration options include a torque bracket and CAD drawings are available in numerous formats to support the design process. Service and maintenance features include interchangeable distance washers for simple track gauge adjustment, a re-lubrication facility for extended service life, rapid installation and removal of the travel wheel using conventional tools, flange-wear indicators on flanged wheels, and flange bearings with recesses to attach extractors; wheel sets are also available without a flange bearing for direct connection to a corresponding prepared superstructure. Three sizes are offered with load capacities from 61,000 to 132,000 lbs (28,000 to 60,000 kg). DWS 400 — Max. load capacity: 61,600 [28,000]; Travel wheel dia. d1: 15.7 [400]; Weight: 231 [105]; I5: 280; I6: 362; d2: 437; b1: 80 90; b2: 125 140. DWS 500 — Max. load capacity: 88,000 [40,000]; Travel wheel dia. d1: 19.6 [500]; Weight: 312 [142]; I5: 320; I6: 402; d2: 537; b1: 90 110; b2: 140 170. DWS 630 — Max. load capacity: 132,000 [60,000]; Travel wheel dia. d1: 24.8 [630]; Weight: 682 [310]; I5: 350; I6: 456; d2: 680; b1: 75 110; b2: 140 170. The DWS wheel set is used to perform rail transport and to build complete travel units in driven and non-driven designs. It can be used in the crane and materials handling sector and related mechanical engineering solutions. Provided application examples include flange-guided DWS wheel sets for end carriages and crab travel units on a double-girder overhead travelling crane, wheel sets with lateral guide rollers driven by Demag offset geared motors on a double-girder overhead travelling crane, and an installation of eight DWS wheel sets with flanges on a 150-tonne double-girder overhead travelling crane.
