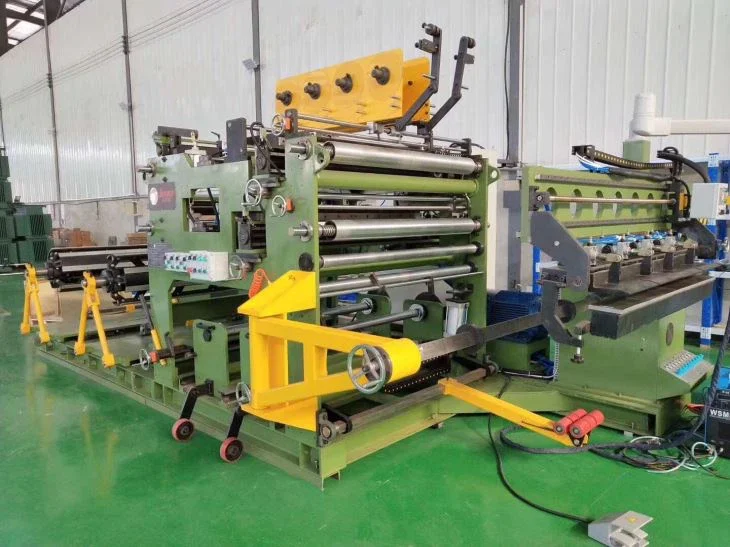

Foil Winding Machine for Cast Resin Transformer - Model NO.:BRJ-800

Overview

Model NO.: BRJ-800. Precision: High Precision. Certification: CE, ISO. Automatic Grade: Automatic. Condition: New. Customized: Customized. Warranty: 12 Months. Coil processing range: axial length 180-800mm and axial length (including leading wire) 330-950mm; outer diameter (not include bus bar) Diameter 700 and max. outer diameter Diameter 800; min. inner diameter Diameter 100; suitable coil shape Circular/rectangle. Coil material and dimensions: Material Copper/aluminum foil; width 180-750mm; thickness — Copper foil: 0.3-2mm; Aluminum foil: 0.5-3mm. Uncoiling and mandrel: Winding material inner diameter Diameter 400\\500; winding material outer diameter Diameter 1000; effective length of tube-shaped mandrel 850mm; tube-shaped mandrel expanded big or small Diameter 400-520; tube-shaped mandrel bearing 1500kg; tension strength 10000 N; working pressure 0-0.6(MP). Winding and processing: Working torque Higher 8000-N/M; winding power Single layer 11KW; speed adjusting method Frequency stepless speed adjusting; winding speed 0-30(r/min). Welding method TIG with welding speed Automatic 0-1M/MIN. Shearing method Electric rolling shearing with shearing speed 1.5M/MIN. Layer insulation: 2 sets with flatulence axis outer diameter, inner diameter 400mm/76mm. End insulation device: Quantity 6 sets (client required manufacture) with inner diameter 56MM, outer diameter 350MM, width 15-50MM. Accounting precision 0.1 circle. Error correct method, precision: Servo system 0.5mm. The product is a Foil Winding Machine for Cast Resin Transformer, Model NO.:BRJ-800, described as a Foil Winding Machine for Transformer. The listing also explicitly offers Hv&LV Coil Winding Machine for Transformer and Small Size Electric Motor Coil Winding Machine, indicating support for winding foil coils for transformers, HV and LV coils, and small electric motor coils.
