HxGN AgrOn Machine Monitoring

Overview

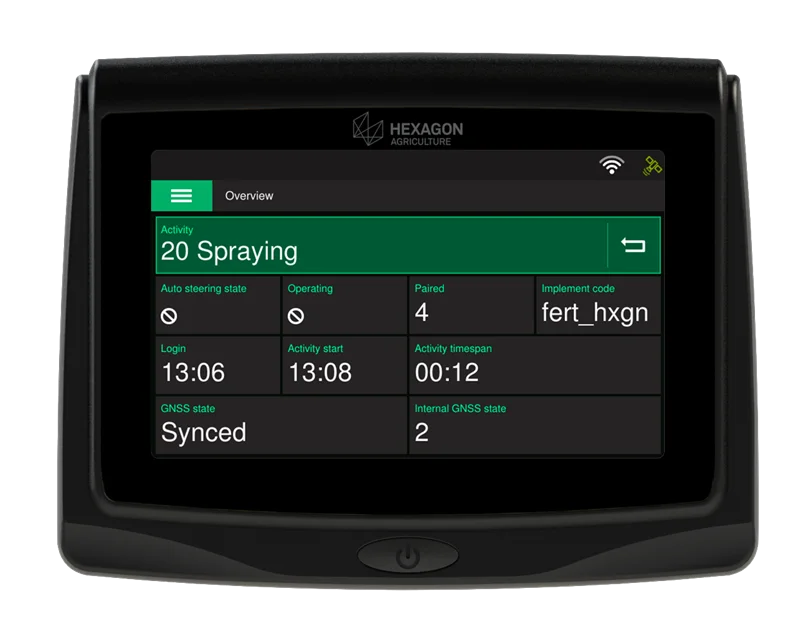

HxGN AgrOn Machine Monitoring is offered in three operator-display variants (Ti5, Ti7, Ti10) with variant-specific compute, I/O, communications, display and protection levels. Key per-variant technical points: - Ti5: ISOBUS: No. Processor: Single-core 800 MHz 1x ARM Cortex-A9. Interfaces: USB (x1), CAN (x1) and RS-232 (x1). Communication: None. Certifications: CE, RCM, RoHS, WEEE. Protection index: IP65. Screen configuration: 5" LCD 16M colors, 600 cd/m2 brightness and 600:1 contrast, 800x480. - Ti7: ISOBUS: Yes. Processor: Single-core 800 MHz 1x ARM Cortex-A9. Interfaces: USB (x1), CAN (x2) and RS-232 (x2). Communication: Bluetooth optional, 4G optional. Certifications: ANATEL, CE, RED, RCM, RoHS, WEEE. Protection index: IP64. Screen configuration: 7" LCD 265K colors, 1000 cd/m2 brightness and 400:1 contrast, 800x480. - Ti10: ISOBUS: Yes. Processor: Quad-core 1.2 GHz 4x ARM Cortex-A35. Interfaces: USB (x2), CAN (x3) and RS-232 (x2). Communication: Bluetooth 5.0, Wi-Fi, 4G. Certifications: ANATEL, CE, RED, RCM, RoHS, WEEE. Protection index: IP65, IP66, IP67. Screen configuration: 10" LCD 16M colors, 1000 cd/m2 brightness, 800:1 contrast, 1280x800 (HD). Guidance and implement-control capabilities: Ti5 is offered with Guidance and Auto Steering plus one additional product choice; Ti7 and Ti10 support high-precision positioning and can operate with Hexagon's implement control products simultaneously with the auto steering kit. Designed for industrial agricultural machine control and monitoring in production farming and farm equipment integration projects, HxGN AgrOn displays act as in-cab operator terminals for guidance, auto-steering and implement control workflows. ISOBUS-capable Ti7 and Ti10 variants support direct implement communications and simultaneous control of multiple implement products when used with Hexagon auto steering kits. GNSS positioning performance supports tasks from coarse-assisted navigation to centimeter-level precision: GNSS L1/L2 20Hz GPS/Glonass pass-to-pass repeatability of 10cm (pass to pass, 15min); GNSS L1 10Hz GPS with EGNOS/WAAS: 2,0 m (absolute); GNSS L1 20Hz GPS with EGNOS/WAAS: 15-20cm (pass to pass, 15min); GNSSL1/L2/Lband 20Hz GPS/Glonass/RTK: 2 cm (absolute); GNSSL1/L2/Lband 20Hz GPS/Glonass/TerraStar: 2,5cm (absolute). Choose the Ti5 for basic, rugged in-cab displays where onboard communications are not required; choose Ti7 when optional cellular/Bluetooth connectivity and ISOBUS are needed; choose Ti10 when a higher-performance CPU, larger HD display, full wireless connectivity (Bluetooth 5.0, Wi‑Fi, 4G) and broader IP protection are required for integrated precision-agriculture operations.
