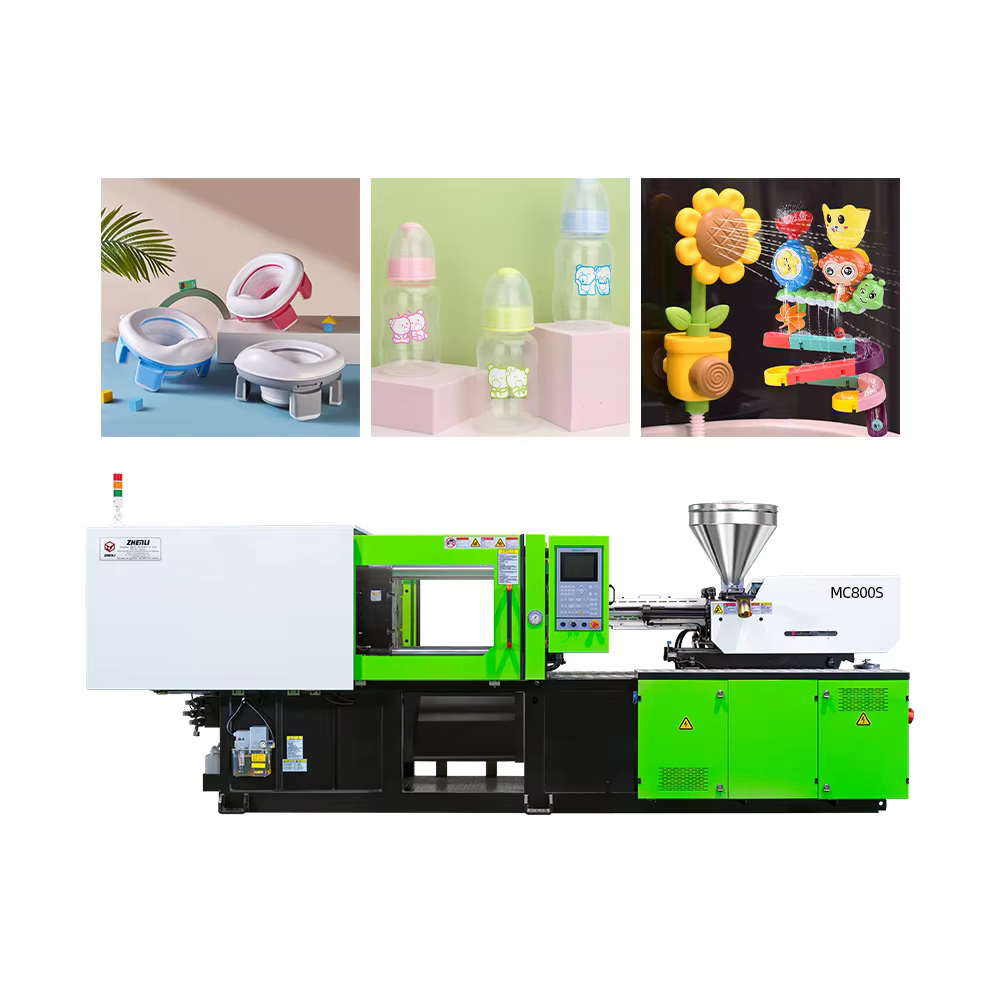

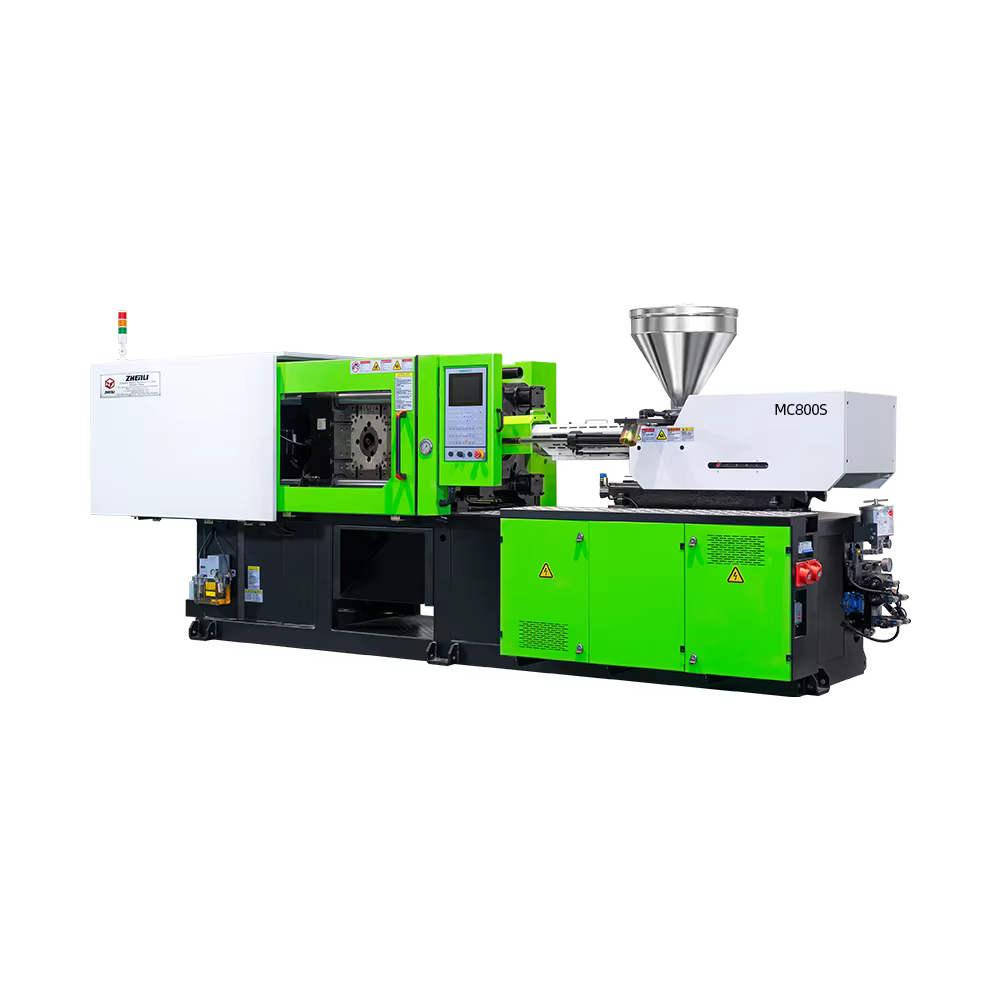

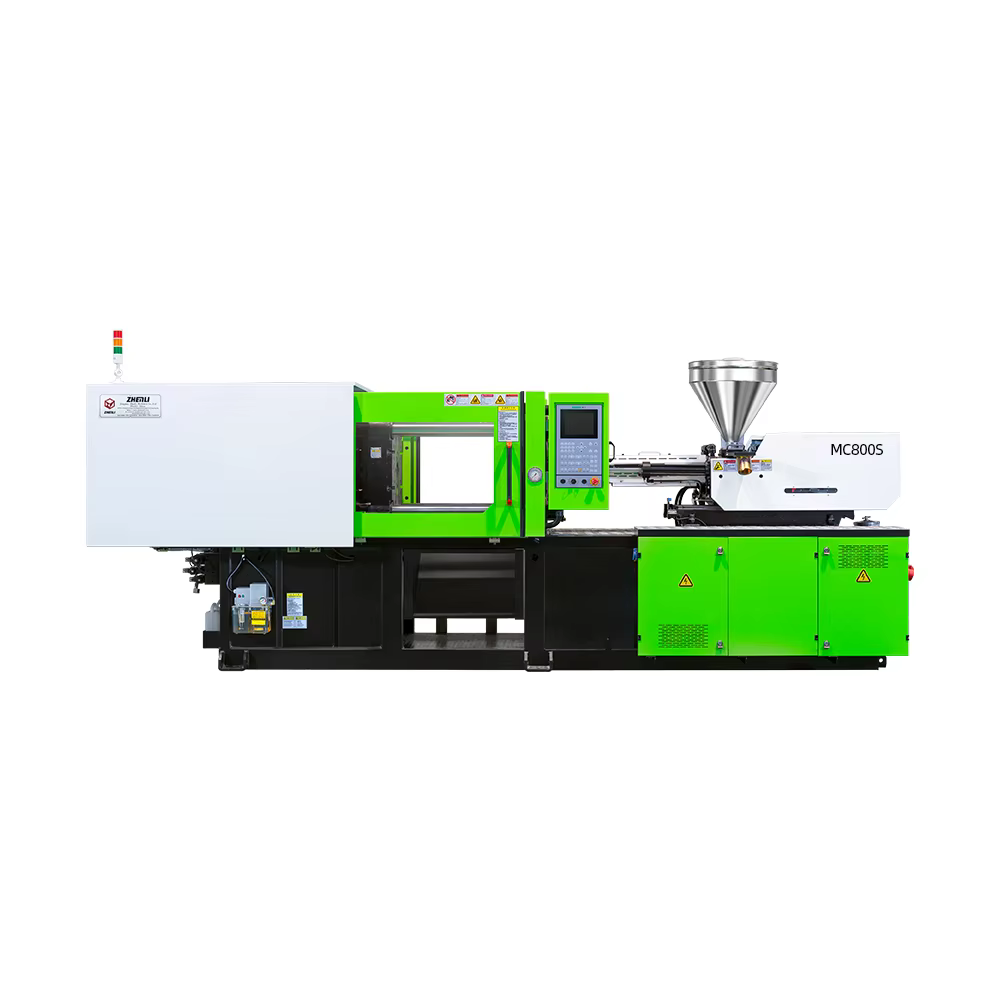

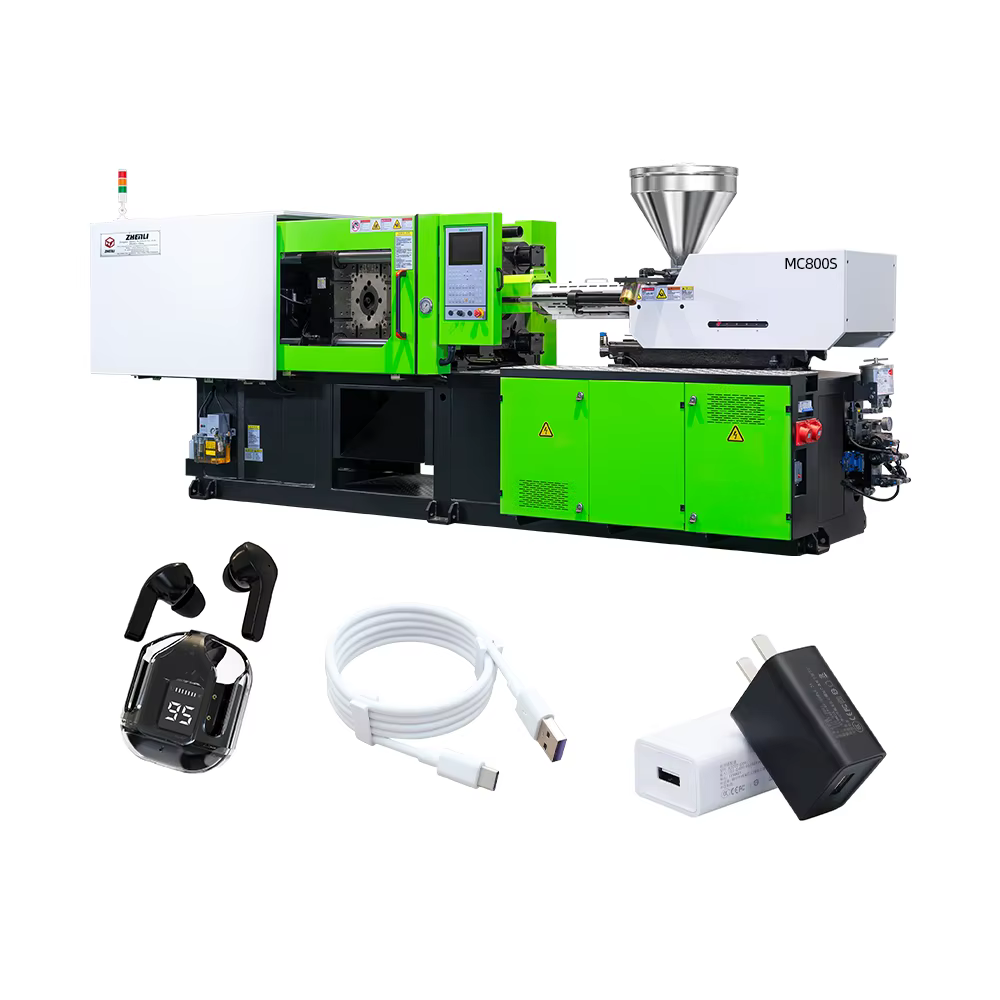

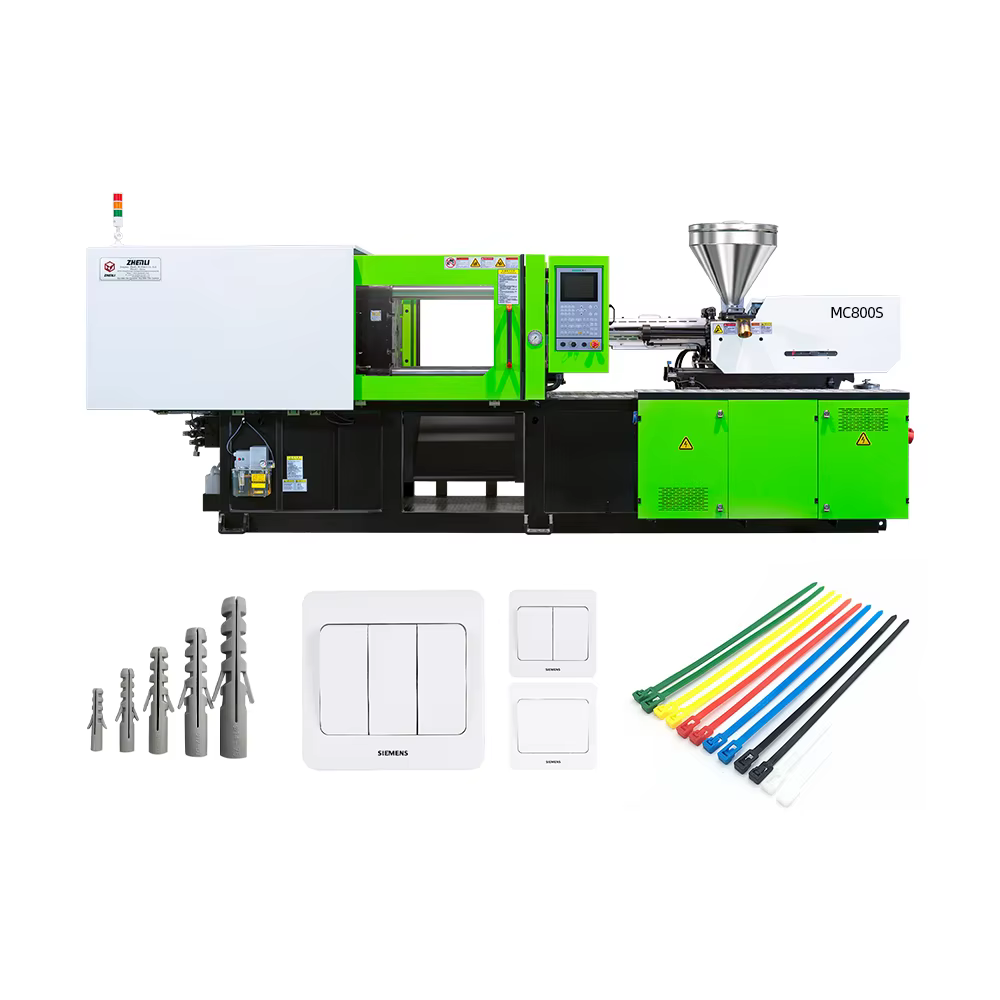

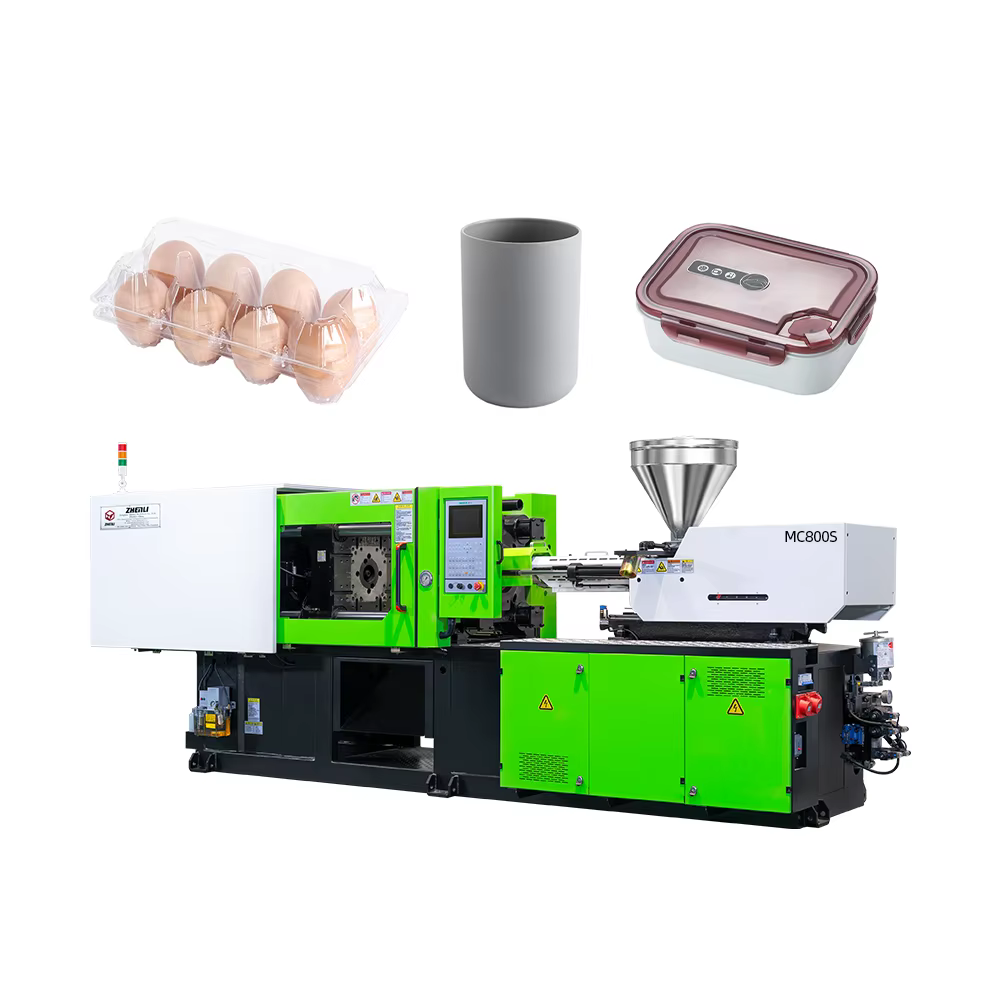

Top Selling Baby Plastic Injection Molding Machines Hydraulic 800 Ton Plastic Injection Machine Molding ZLMC800S

Overview

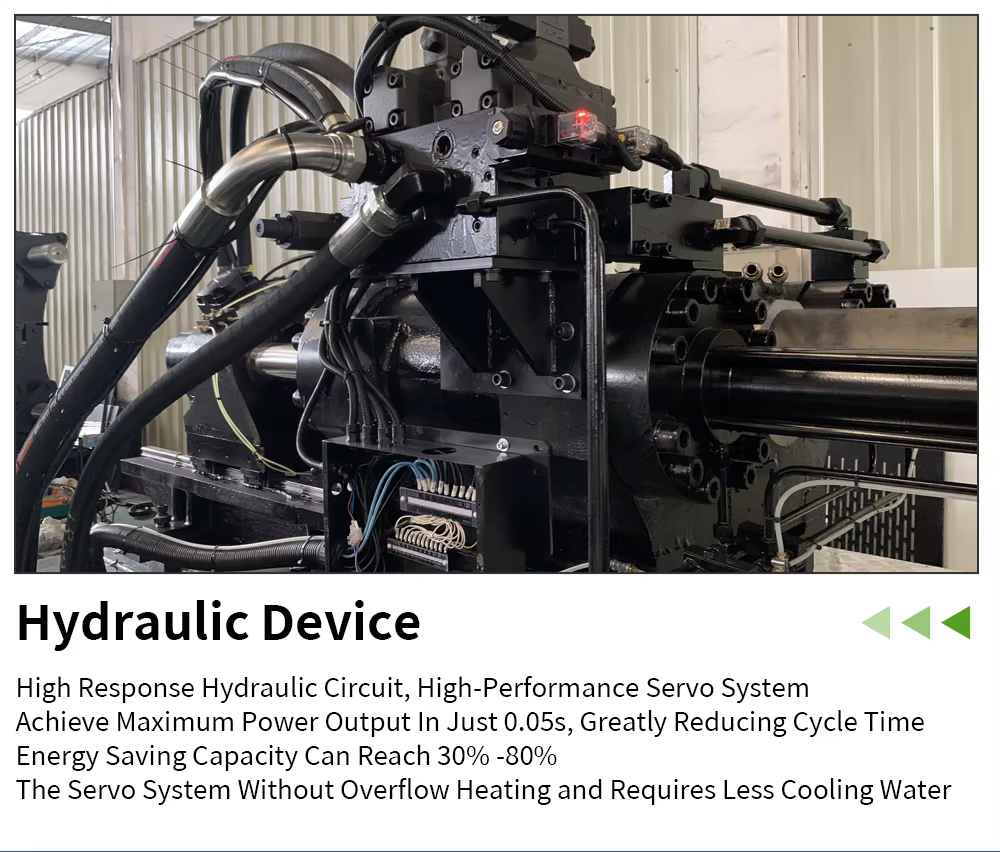

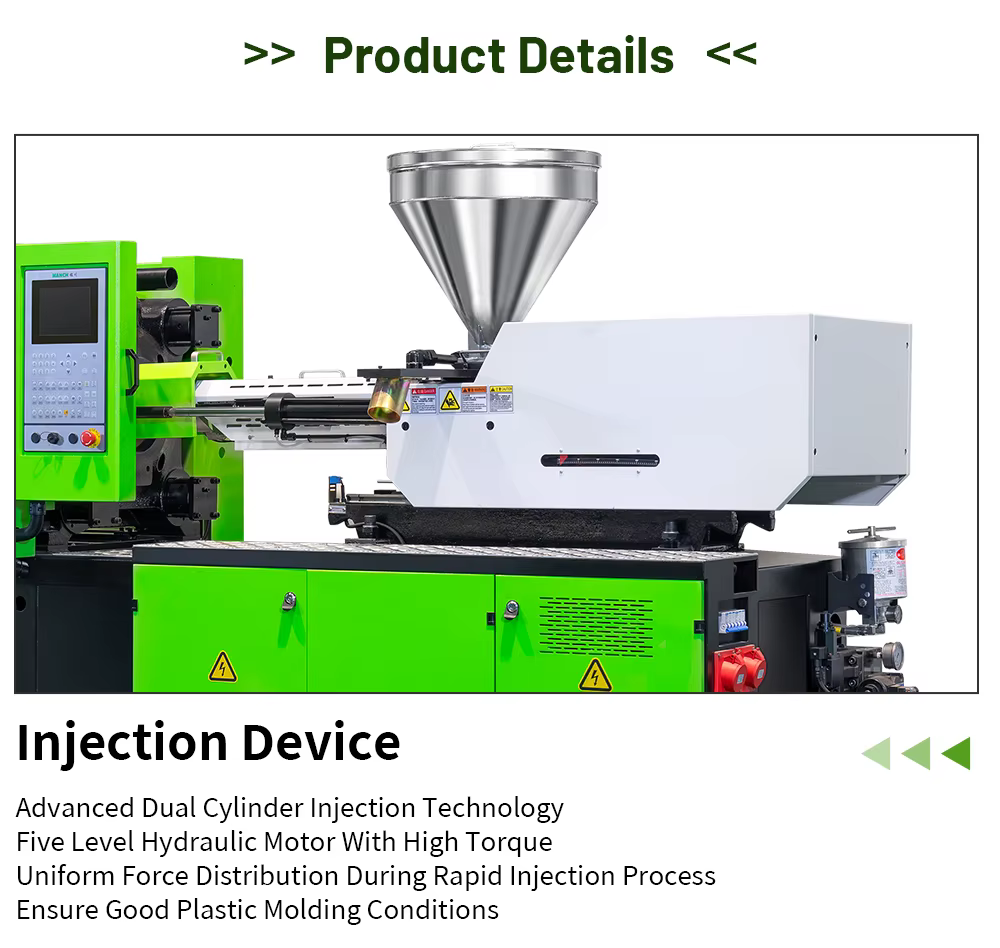

Model ZLMC800S is described as a hydraulic plastic injection molding machine titled "Top Selling Baby Plastic Injection Molding Machines Hydraulic 800 Ton Plastic Injection Machine Molding". Injection unit (unit: A | B | C): Screw diameter (mm): 90 | 100 | 110; Shot volume (cm³): 3179 | 3925 | 4749; Shot weight(PS) (g(ps)): 2957 | 3650 | 4417; Injection pressure (MPa): 201 | 163 | 135; Theoretical Injection rate (cm³/s): 605 | 743 | 900; Plasticizing Capacity(ps) (g/s): 93.2 | 116.5 | 136.9; Screw I/D ratio (I:D): 23:1 | 21:1 | 19:1; Screw speed(stepless) (rpm): 0-145 | 0-145 | 0-145; Screw stroke (mm): 500 | 500 | 500. Clamping specifications: Clamping force (KN): 8000; Opening stroke (mm): 1050; Max.daylight (mm): 2050; Mold thickness(min-max) (mm): 400-1000; Space between tie bars (mm): 1020x1020; Platen size (mm): 1430x1430. Hydraulic ejection force (kN): 180; Hydraulic ejection stroke (mm): 280; Hydraulic system pressure (MPa): 17.5. Power and auxiliary: Motor/Server (KW): 55+55; Heating capacity (KW): 42; Oil tank capacity (L): 1000; Machine weight (Kg): 37000. The ZLMC800S is a hydraulic plastic injection molding machine intended for plastic injection molding operations, with three injection unit configurations (A | B | C) and shot volumes of 3179 | 3925 | 4749 cm³. Its clamping force of 8000 KN, mold thickness range of 400-1000 mm and maximum daylight of 2050 mm define the mold sizes and clamping loads supported by this model.
