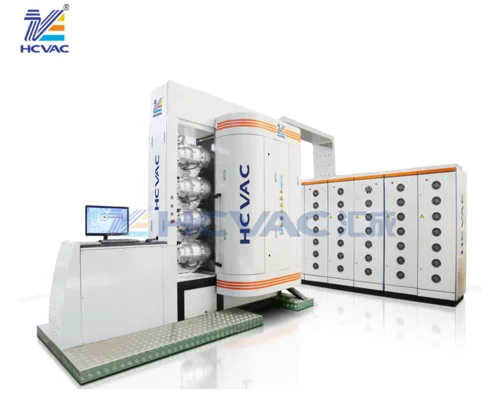

HCVAC Bathroom Fitting PVD Vacuum Coating Machine

Overview

HCVAC Bathroom Fitting PVD Vacuum Coating Machine is a Coating Production Line constructed from Stainless Steel and classified as an Industrial Coating Machine / Metal Coating Machine. Reported weight is 5-8 Ton, dimension (L*W*H) is customized, voltage is 380V and power consumption is 45-150KW. The machine is computerized and automatic, with PLC Control as the control system, and comes with One year warranty and lifetime maintenance. Colors available include Silver, Golden, Black, Rose Gold, Pink, Bronze and Coffee. The system integrates MF magnetron sputtering and electric arc ion evaporation, combines the ion source and the pulse bias voltage, and operates with full automation control when coating films. It is equipped with a new target and arc power supply; the arc spot is described as stable, with low current and small ionparticles. Process parameters for each color are stored in software recipes and relevant process parameters are continuously monitored and controlled by on-board computer software. Coatings that can be deposited include ZrN, CrCN, TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films, and films are classified into multiple color series such as imitation gold (TiN, ZrN, TiN+Au, ZrN+Au), rose gold (TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu), silver white (CrN, CrSiN, Zr (micro N)), grey (Ti, stainless steel (S.S), (S.S) N), coffee (TiCN, TiAlCN, ZrC), blue (TiO, CrO, TiALN) and black (TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC). Reported coating performance characteristics include uniform and dense films with good adhesion, high hardness and low friction factor; color stability for 2-3 years meeting ROHS environmental standard; good abrasion resistance and non-stick surface properties; and qualified results for perspiration resistance, salt mist, abrasion, bend and RCA tests. The product holds CE and ISO certifications, FOB port is FOB SHENZHEN, delivery time is 60 Days and packaging options are Wooden Package or carton package. The machine is stated as being widely used for sanitary ware, bathroom fitting and faucet coating applications. It is applied to metal, ceramics, glass and other materials for deposition of hard metal films and metal compound films. HCVAC decorative PVD films from this machine are routinely used as a replacement for electroplated chrome, can be applied directly over almost any substrate material and can be deposited in a wide variety of colors according to stored software recipes.
