SAMA Series

Overview

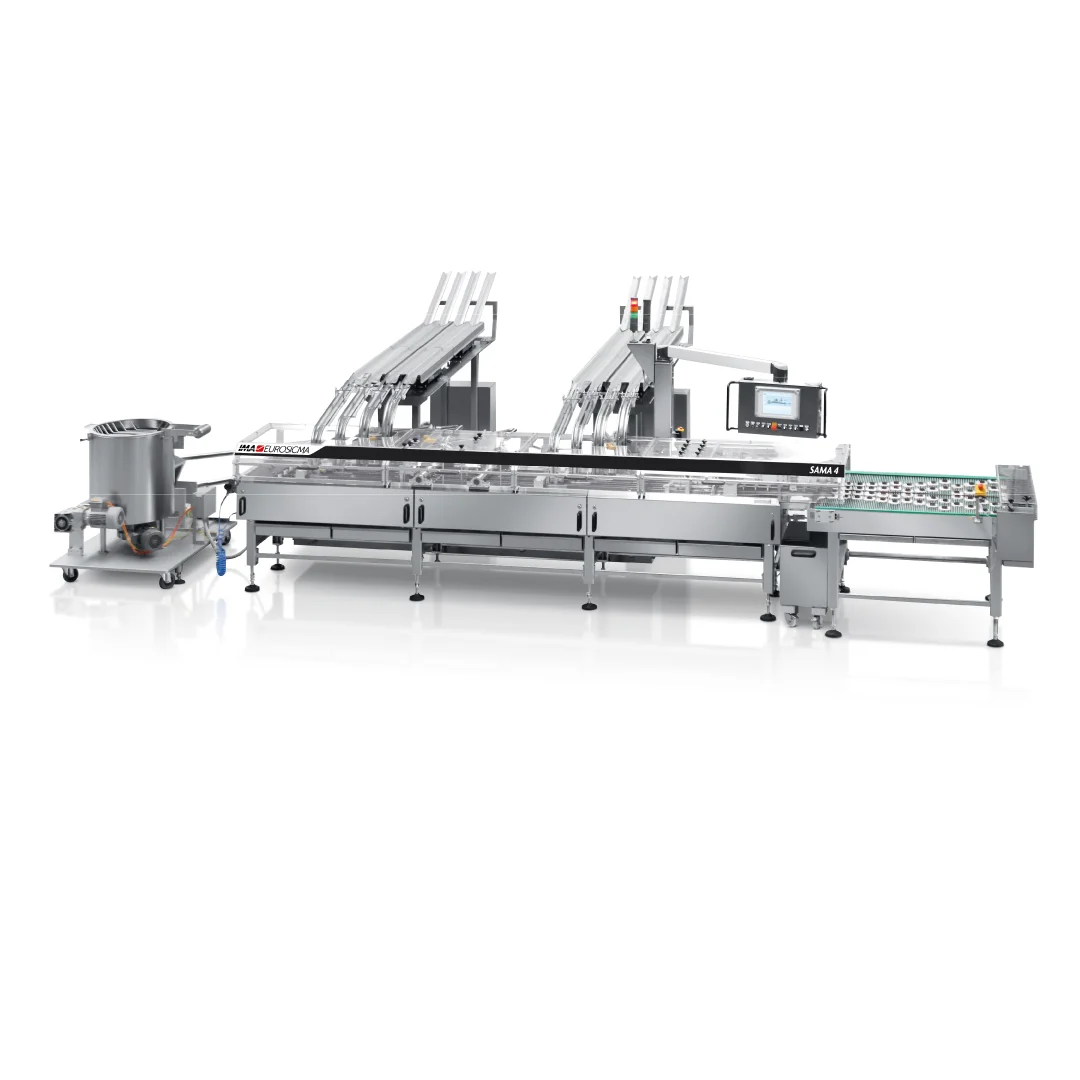

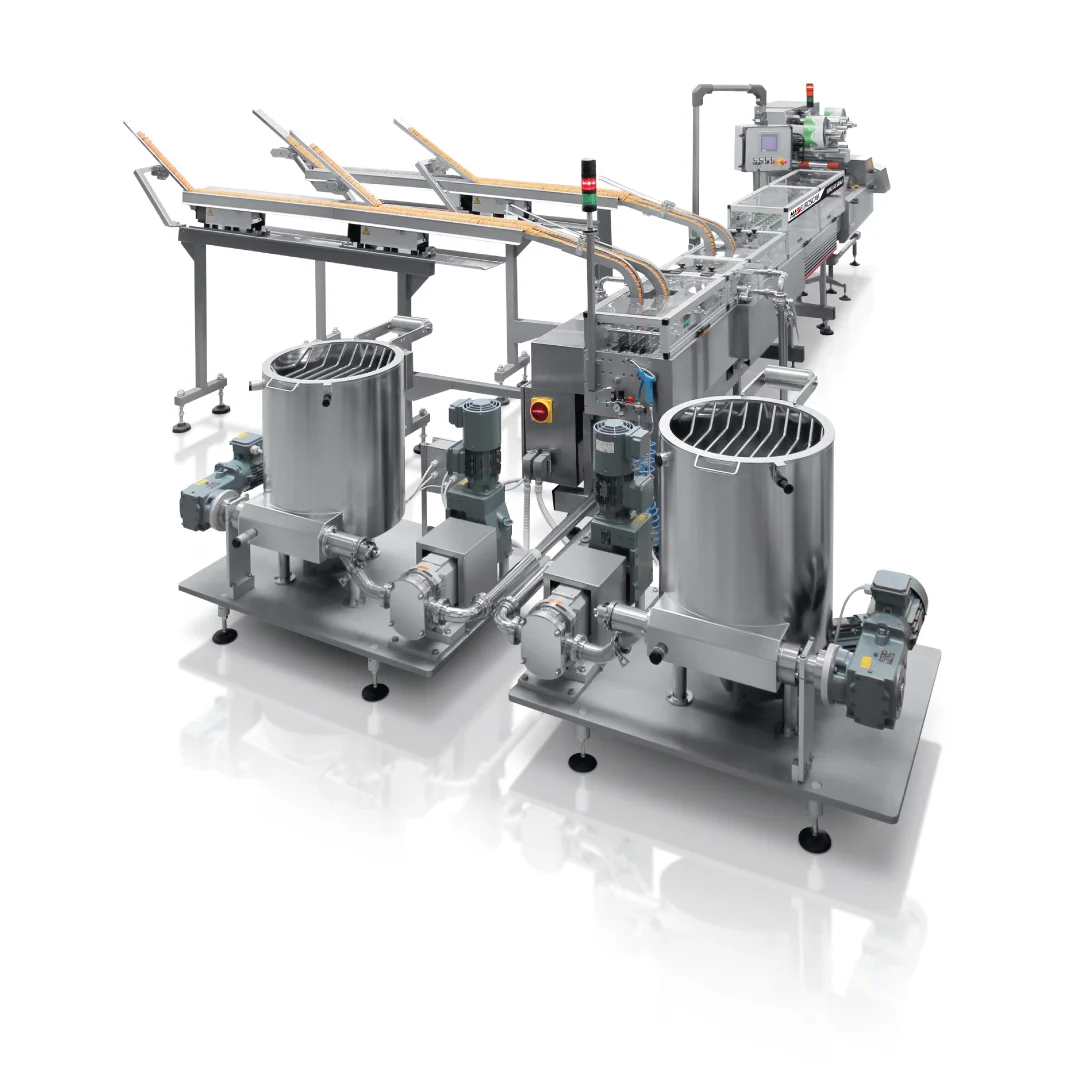

The SAMA Series consists of fully automatic, electronically controlled sandwiching machines for high-precision production of cream-filled biscuits or crackers, using servo-driven wire-cut dosing technology for accurate and consistent cream deposition. Available models are SAMA 2 and SAMA 4; SAMA 2 features two production lanes and achieves an actual output of 1.400-1.500 sandwich biscuits per minute, while SAMA 4 has four production lanes and reaches up to 2.800-3.000 sandwich biscuits per minute. The machines are compatible with collection and handling systems including rows multipliers, rotary and penny stackers, exit conveyors and portion feeders, and can synchronize in real time with the EURO 88 flow wrapping machine for compact layouts and direct product transfer for pile pack applications. Film reel dimensions: inner diameter Min: 70 mm Max: 79 mm; external diameter Min: 6 Max: 380 mm; reel width: 350/500 (opt) / 650 (box motion); Max weight (kg): 25. Product size range SAMA 2/SAMA 4 — Lenght (mm) Min: 40 Max: 70; Width (mm) Min: 40 Max: 70; Diameter (mm) Min: 40 Max: 70. The SAMA Series is used for high-precision production of cream-filled biscuits or crackers, delivering precise and consistent cream deposition via servo-driven wire-cut dosing. SAMA 2 and SAMA 4 support medium to high-capacity lines with outputs of 1.400-1.500 and 2.800-3.000 sandwich biscuits per minute respectively, and can be combined with the EURO 88 flow wrapping machine for real-time synchronized direct transfer in pile-pack configurations while interfacing with rows multipliers, rotary and penny stackers, exit conveyors and portion feeders.
