ALZTRONIC i9

Overview

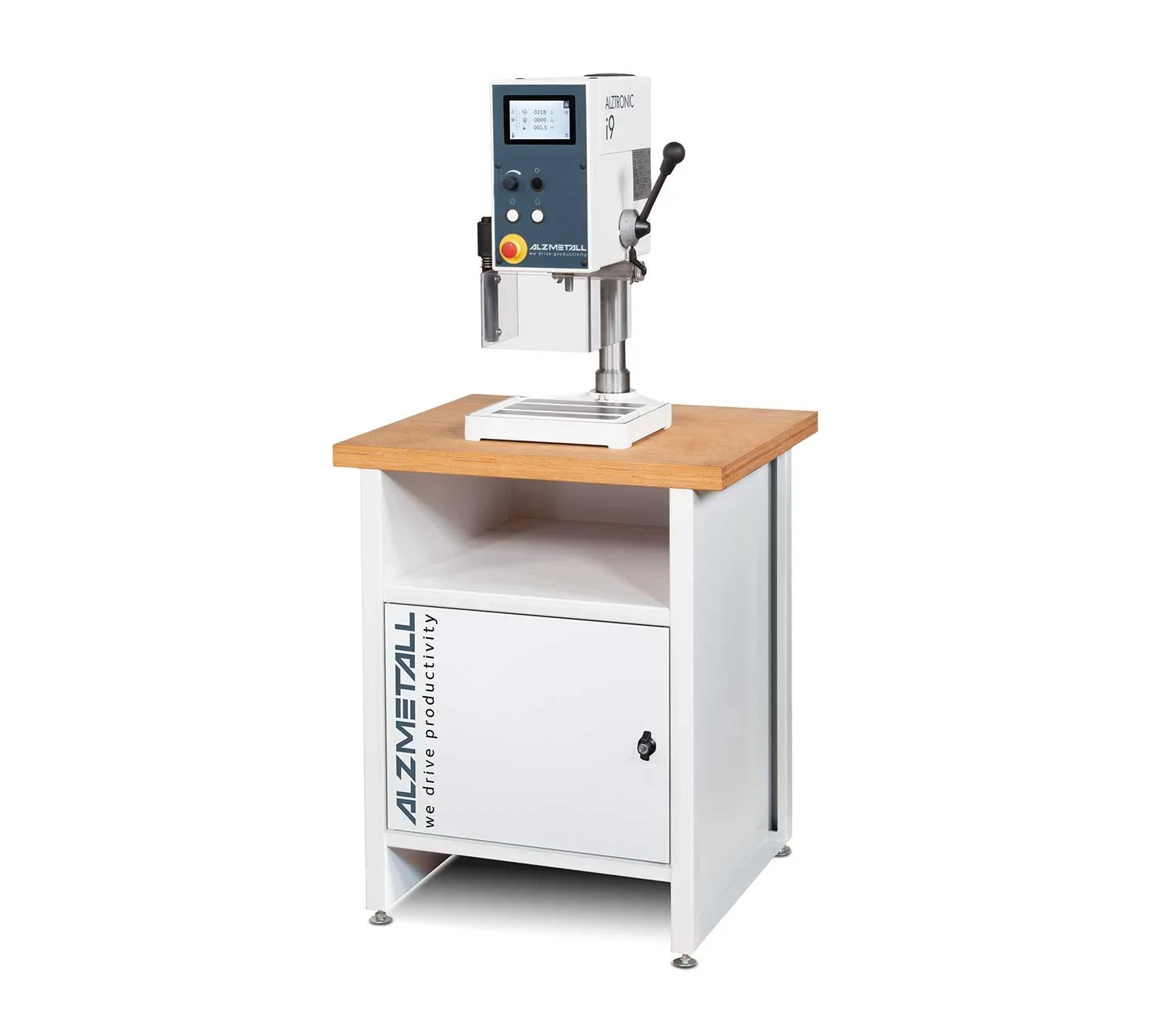

ALZTRONIC i9 is a Table Bench Drilling Machine (TABLE DRILLING MACHINES) rated for 230 V and equipped with a touchscreen. The machine concept is stated as Table Bench Drilling Machines and the model includes a touchscreen control. Drilling and mechanical specifications: Drilling Capacity Steel E335 (St 60) 9 mm; Tapping performance steel E335 (St 60) M 8; Distance spindle to column 200 mm; Table clamping area 300 x 240 mm; Distance spindle - table min./max. 110 / 250 mm; Column diameter 50 mm; Z-travel of spindle 40 mm; Feed manual; Spindle speed range 390  6.500 rpm; Power 0,7 kW. Standard equipment includes an AC motor, plug, stepless speed setting, push button for starting the Right turn (CW), push button for starting the Left turn (CCW), push button for Spindle off (Spindle stop by brake function), spindle protection electrically secured, EMERGENCY-OFF switch, main switch, Control Tension 24 Volts, Protection Clas IP 54, and lacquer finish. Optional items listed include Table/Bench for ALZTRONIC, LED machine light, Technology Calculator in the Touch Display, Maximum Drill Depth Readout in the Touch Display, quick action drill chuck SPIRO SK 10, quick action drill chuck SPIRO SK 13S, and packing for the Table/Bench (Pos. 09.). The product description explicitly states the machine is for schools, trainees, laboratories, institutes and manufacture. It is presented as a fast, precise table drilling machine positioned at a top entry-price for those settings.
