Vibratory Tubs TVB(A)

Overview

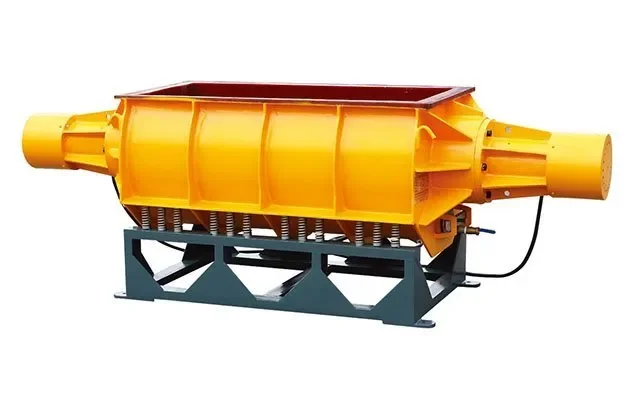

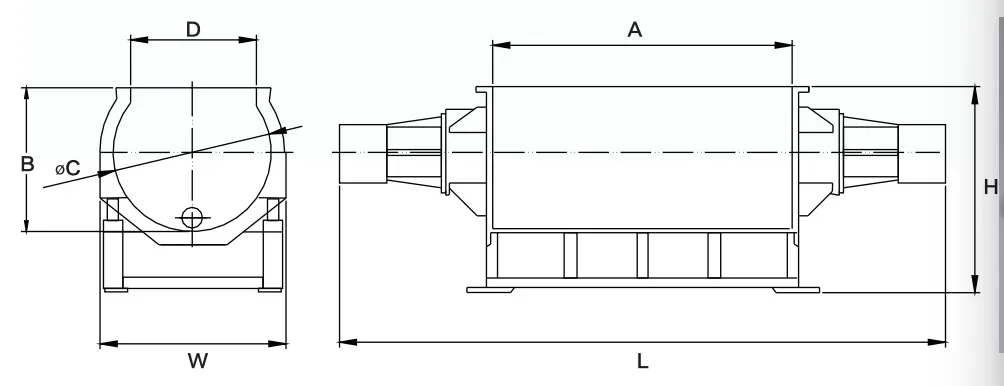

TVB(A) Vibratory Tubs are rectangular tub vibrators with a curved inner wall and heavy gauge all welded steel construction; the curved wall is stated to strengthen tumbling performance and reduce process time and the lining is described as well suited for ball burnishing. The series includes models TVB(A)240, TVB(A)500 and TVB(A)750 with total volumes of 240 L, 500 L and 750 L respectively. Reported chamber and machine dimensions are: Max overall dimension (mm) 1880x880x920 | 2870x880x920 | 3354x880x920; Chamber length A (mm) 690 | 1310 | 2000; Chamber Height B (mm) 625 | 625 | 625; Chamber Diameter C (mm) 670 | 670 | 670; Feeding entry width D (mm) 524 | 524 | 524. PU lining thickness is 16 mm across the range and weights are 450 | 1000 | 1600 kg for the three models. Power ratings are given as 1.1×2 kW | 2.2×2 kW | 2.2×2 kW corresponding to the three models. Key built-in features listed include a heavy-duty motor, PU lined bowl, and adjustable speed controls, and the machine is described as compatible with standard vibratory tumbling media including ceramic, plastic, steel, and porcelain. Optional accessories mentioned include a soundproof cover that reduces noise from 95 db to 70 db and a dosing pump for controlled compound and water metering. Certifications and quality marks cited are ISO 9001:2015, CE (Directive:2006/42/EC), SGS test reports for performance & safety, and RoHS Compliance (Standard:2011/65/EU). The TVB(A) is described for surface finishing of long, flat, or delicate parts that are not suitable for bowl-type machines and is stated to perform deburring, polishing, descaling, and edge radiusing on metal, plastic, or composite workpieces. The product overview explicitly lists large and heavy parts vibratory tumbling examples such as ceramic coated (cerakote) headers polishing, exhaust pipes, and engine housing. Stated key application areas include Automotive, Aerospace, Hardware, and 3D Printing.
