Yamato BOG and BOS Series Laboratory Oil Bath

Overview

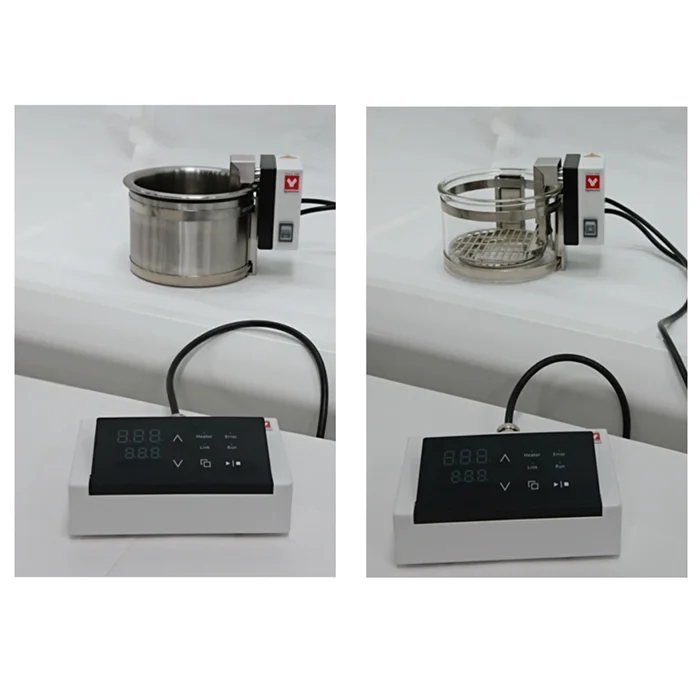

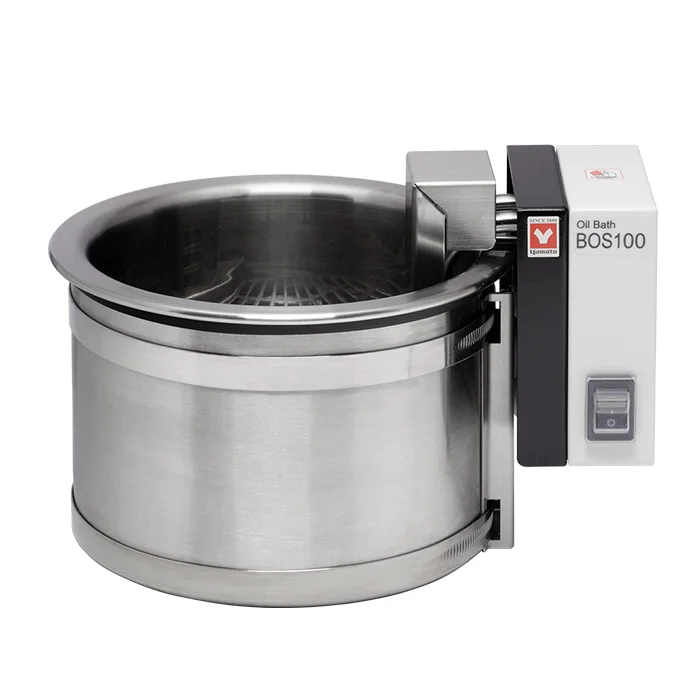

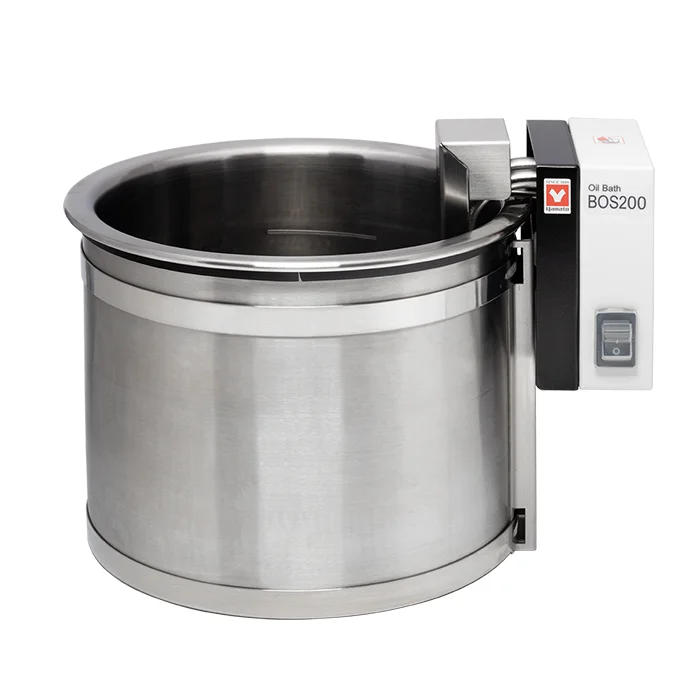

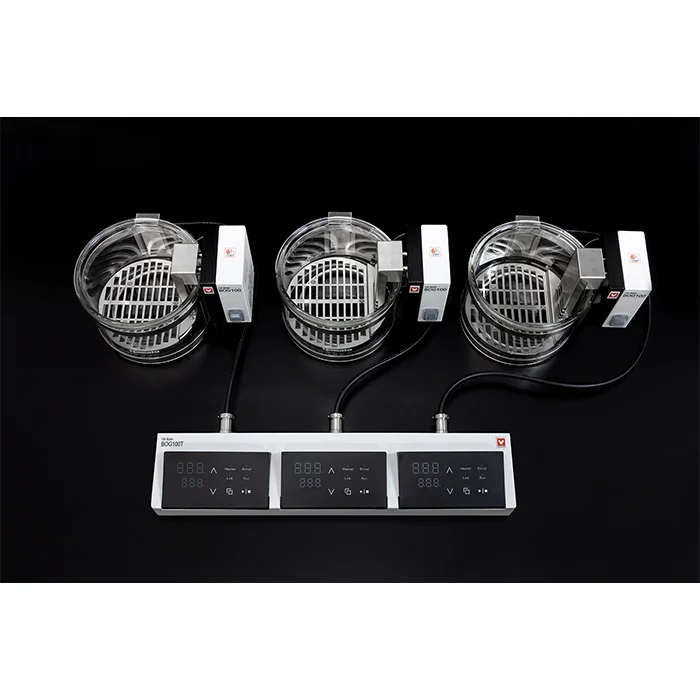

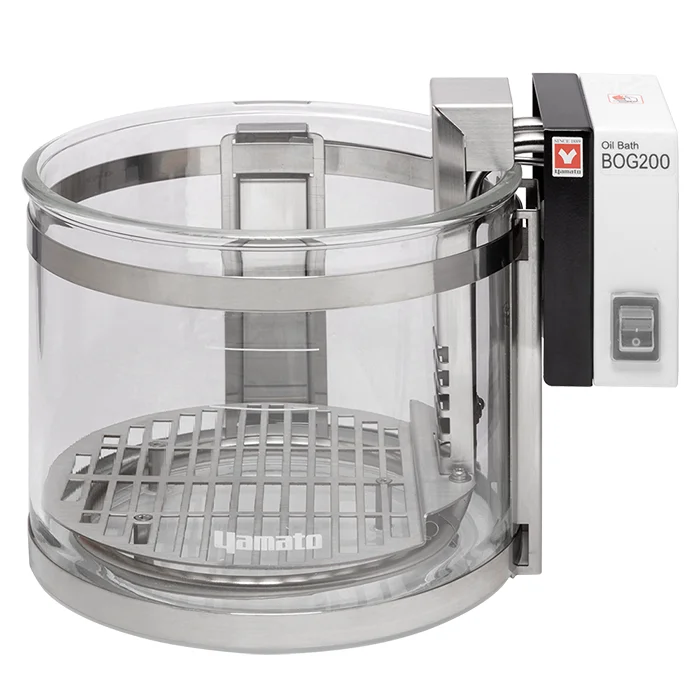

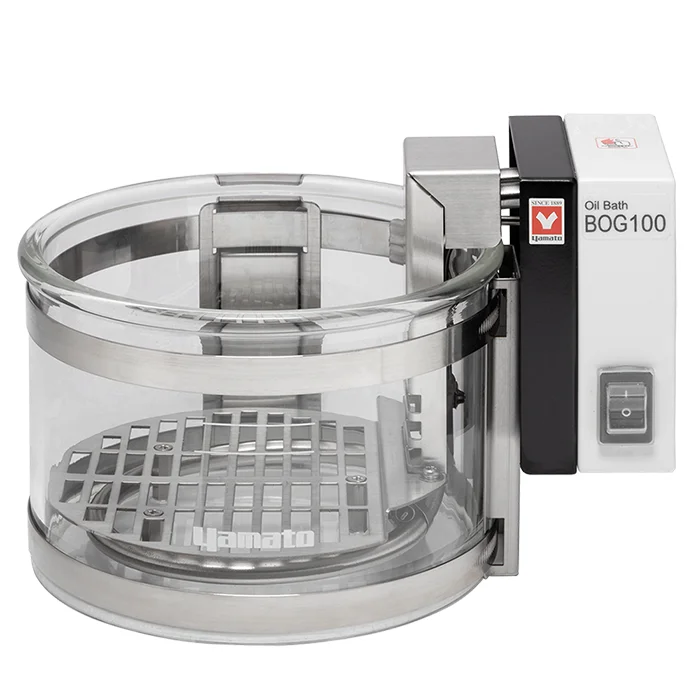

Models listed: BOG100, BOG110, BOG200, BOG210, BOS100, BOS110, BOS200, BOS210. Temperature setting range is 0~260B0C and temperature control ranges are given as: Room temp. +5~240B0C | Room temp. +5~250B0C | Room temp. +5~240B0C | Room temp. +5~250B0C. Temperature control accuracy is B1 0.3B0C (at 200B0C, when stirring) using PID control and digital setting/display with 5B25BC keys (display in units of 1B0C). The temperature sensor is Pt100A9 and the heater circuit uses a triac zero cross method. BOG models use a hard transparent glass bath for high visibility while BOS models use a stainless steel bath for temperature stability. The bath includes an indent at the bottom to allow integration of a stirrer's hot plate and to prevent the bath from sliding; compatibility with Yamato MFD800/MFH800 magnetic stirrers is stated. Controller operation can be performed from a distance for safe and secure bath operation, and an optional temperature sensor inserted into the flask used together with the in-tank sensor enables highly accurate and rapid temperature control in the flask.
