HRT310SS-BM

Overview

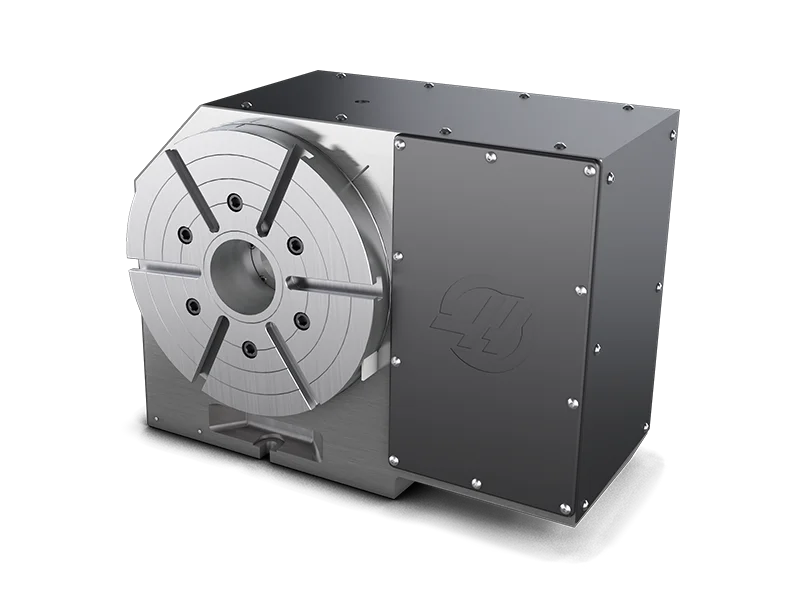

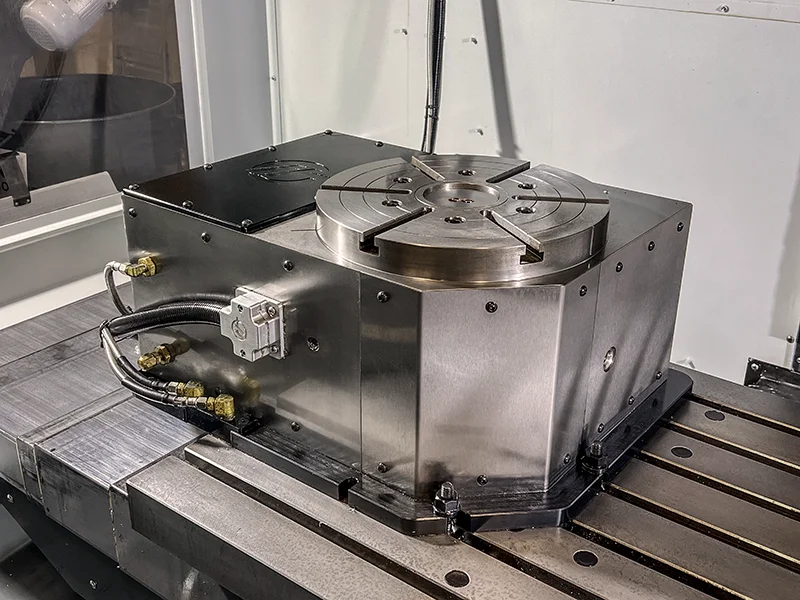

HRT310SS-BM starting price US$25,995 CNY ONLY and is listed as Not Currently Available In Your Region. The unit is a 310 mm (12.20 in) high-speed rotary table with a platter diameter of 12.20 in | 310 mm, a max weight on platter of 435 lb | 197.3 kg, and 6 T-slots at 60° (6 @ 60°). It is modified to mount horizontally and is specially designed to mount on its back to provide high-speed C-axis positioning. The rotary uses a heavy-duty cycloidal rotary drive system with a gear ratio of 36.75:1 and timing of 2:1, and the gearbox has a shock-load capacity of 5 times the rated torque and is a simple drop-in replacement. Performance specifications include a max speed of 240 °/sec, continuous torque 400 ft-lbf | 542 Nm, and brake torque @ 100 psi/6.9 bar of 940 ft-lbf | 1270 Nm. Indexing and precision specifications are indexing accuracy ± 30 arc-sec, repeatability 10 arc-sec, resolution 0.001 °, backlash 30 arc-sec, and spindle runout max 0.0010 in | 0.025 mm. Additional spindle dimensions include pilot bore diameter 3.2500 in | 82.550 mm and through-bore diameter 2.3250 in | 59.055 mm, with max rotation/step (with rotary control) 999.999 °. General requirements and physical data list power requirement 115 VAC ±10% @ 15 A, operating temp (max ambient) 100 °F | 38 °C, air pressure max 150 psi | 10.3 bar, shipping export pallet 25.5 in x 27.5 in x 26.0 in | 65 cm x 70 cm x 66 cm, and shipping weight 440 lb | 200.0 kg. Standard control is Direct Control by Mill CNC and available options and accessories include Sigma 7 servomotors, rotary controls, cabling, quill switches, cable support, and various workholding options with listed prices. The HRT310SS-BM is designed to mount on its back to provide high-speed C-axis positioning and to add 4-axis capabilities to a machine. Its compact size and high-speed 240 °/sec indexing are presented as making it a complement to the VF-3SS and other high-speed Haas machines. The unit connects plug-and-play to Haas machines and requires a Haas mill with 4th-axis drive and NGC software version 100.21.000.1130 or later for full 4th-axis operation; stand-alone operation requires a Haas rotary control box shipped after November 10, 2021 with software version 26.38 or newer. It is not compatible with CHC machines and is not intended for continuous platter rotation.
