SPEEDLINER 710 HYBRID

Overview

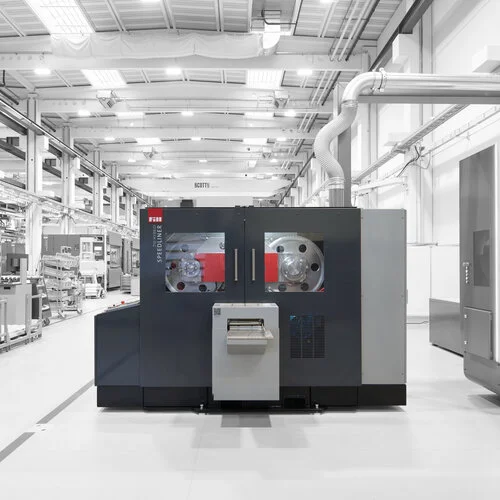

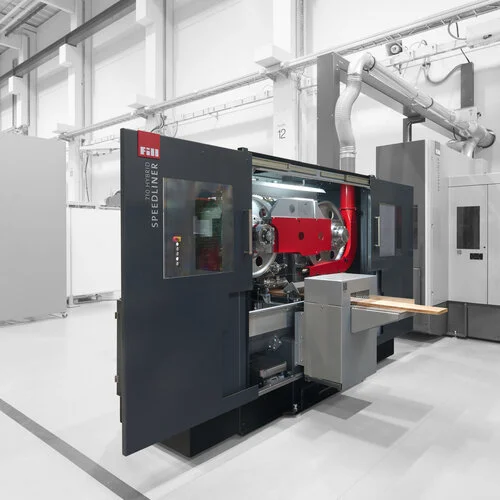

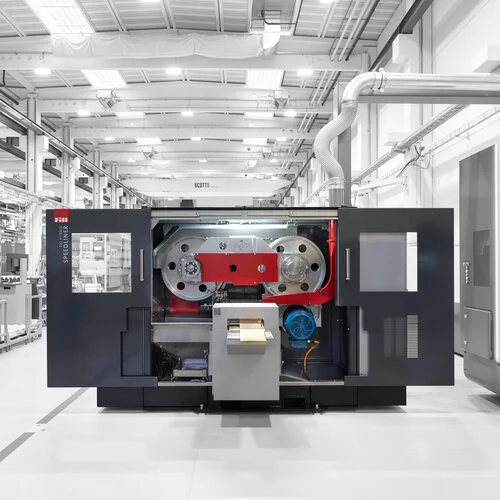

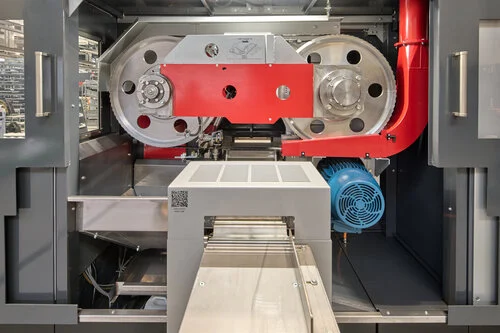

The SPEEDLINER 710 HYBRID is the entry-level model of the SPEEDLINER horizontal bandsaw family and uses a horizontal fine-cutting bandsaw module with a high-precision metal transport chain to guide workpieces and divide them into lamellae. Key specifications: - Cutting width 50 - 300 mm - Max. block height 95 mm - Roller diameter 710 mm - Feed rate up to 20 m/min - Kerf from 1.1 mm - Saw motor 22 kW - Weight per module approx. 4,100 kg - Up to 6 modules possible Servo-controlled drives and high clamping forces enable high sawing precision, deflection rollers are mounted in bearings on both sides, and the servo-drive is combined with precision guides. Operation is by touchscreen with program preselection, and the machine features a space-saving, easily accessible enclosure with simple cleansing especially for wet cutting. High-precision saw bands can be used optionally for wet and dry cutting. The SPEEDLINER 710 HYBRID is described for production of lamellae for parquet, multilayer boards, doors, and furniture components, and its application spectrum also lists ski and snowboard components. It is designed to cut even the hardest types of wood and supports wet and dry cutting with optional high-precision saw bands. The machine may be operated as a freestanding unit or as a multi-head system with several in-series, automated modules.
