SBI - EN 13823

Overview

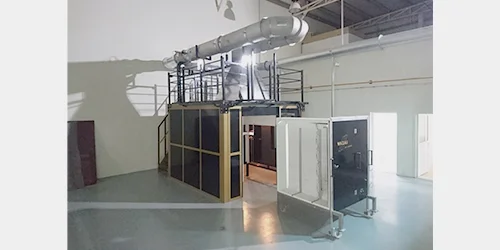

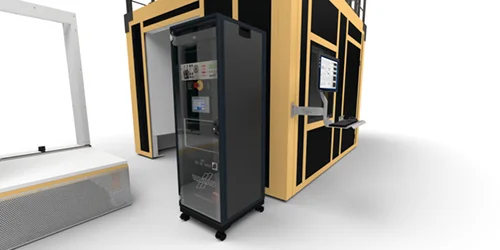

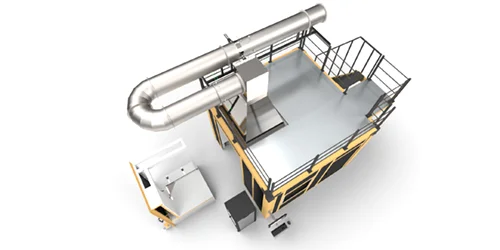

SBI - EN 13823 performs a reaction test to a thermal attack of a single burning item on construction products other than floor coverings. Two specimen wings are mounted vertically at a 90 ° angle on the specimen trolley; in the lower corner formed by the specimen wings a sand bed burner simulates a burning item and a second identical burner, ignited shortly before the main burner, serves to determine the burner's heat development and heat release, and the test determines whether parts of the specimen drip off or fall off. Sensors include gas analyzer O2 (Type paramagnetic) and CO2 (Type infrared), temperature measurement section 3 x, temperature test room, temperature heptane tray, air pressure, ambient temperature, humidity, differential pressure, optical light measuring system, and heat flux meter type Schmidt-Boelter. Supplies required are electrical voltage 230 V AC 50/60 Hz, propane gas, nitrogen gas, calibration gas - CO2-content 5-10 %, heptane, and water. Features include device control and measurement data recording and evaluation via integrated PC, largely automated test and calibration runs, and sample gas processing without use of chemicals; dimensions (width x depth x height) are Approx. 3260 x 4210 x 4500 mm* and weight is Approx. 6000 kg. The test is used to classify building materials according to DIN EN 13501-1 for the European classes A2, B, C and D. The equipment is used to perform reaction-to-fire testing on construction products (other than floor coverings), including assessment of heat development and heat release from the burner and observation of whether specimen parts drip off or fall off.
