POWER-BEND PRO

Overview

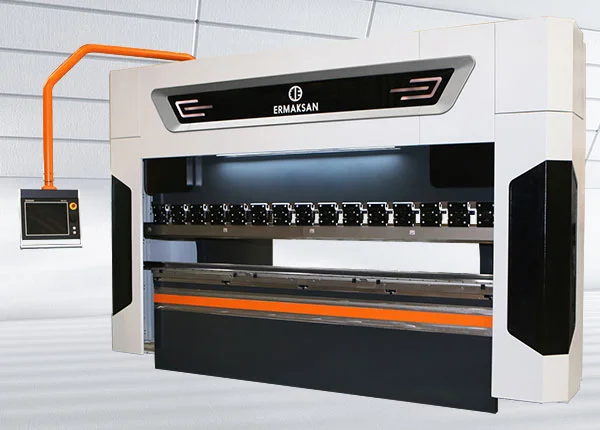

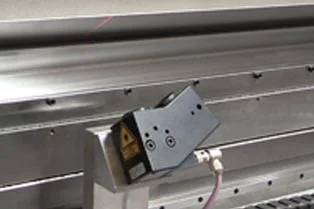

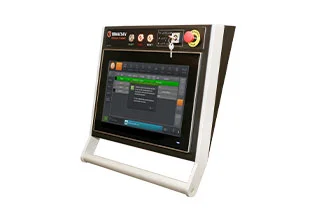

POWER-BEND PRO is a hydraulic press brake available in length options 1 - ... - 6 m and capacity options 40-…- 400 ton. Strokes range 170 - … - 375 and daylight options are 387- … -650. The high speed cycle is (180 - 10 - 135 mm/s); throat depth options are 350 -…- 510 with 410 mm throat depth standard. Standard axes are 3 axes - Y1, Y2, X. The frame is built from high-strength monoblock ST44-grade steel and is stress-relieved. It features a rigid upper beam with bearings from 12 points providing bending precision of 0.01 mm. The machine uses a low-maintenance hydraulic system and the HAWE hydraulic system is specified to ensure precise oil circulation at the correct pressure for all critical rollers. Motorized crowning is available between 26020 tons, and motorized crowning plus oil cooling is provided for tonnages 400 and above. Available measurement, control and accessory options listed for this model include DATA-M LASER PROTRACTOR, Fiessler Angle Measurement System, IRIS PLUS LASER PROTRACTOR, KEBA DIGITAL ANGLE GAUGE, MITUTOYO UNIVERSAL ANGLE GAUGE, numerous CNC controllers (ERTOUCH, CYBELEC, DELEM, ESA families), backgauge configurations from single-axis to 4-axis and the X5 Backgauge Finger Group with 5 servo motors and 0.05 mm positioning accuracy, safety devices such as LEUZE MLC510 rear safety light curtain and rear guard systems, and automation options including cobot-integrated and fully automated robotic bending systems. The Power-Bend Pro is described as engineered to meet the evolving needs of the metal forming industry and to deliver bending results on standard, stainless, thin, or thick sheet metals. It is presented for narrow, wide, or complex bends while providing consistent accuracy and repeatable performance. The product is positioned as a long-term investment for high-speed production and lasting quality and offers a high speed cycle (180 - 10 - 135 mm/s). It can be equipped with angle measurement and correction systems and with cobot-integrated or fully automated robotic bending systems to support automated and precision-controlled bending processes.
