TOOLROOM MILLING MACHINE FPK 4.3

Overview

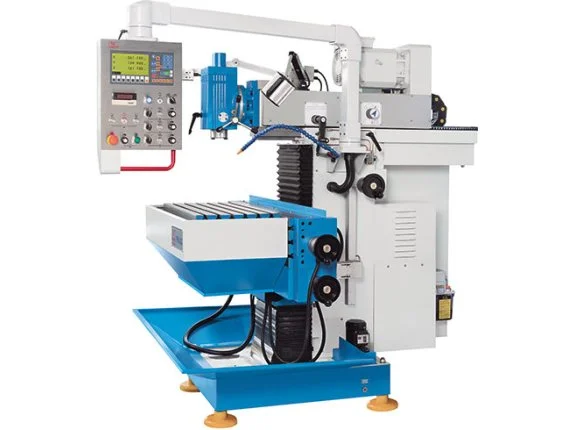

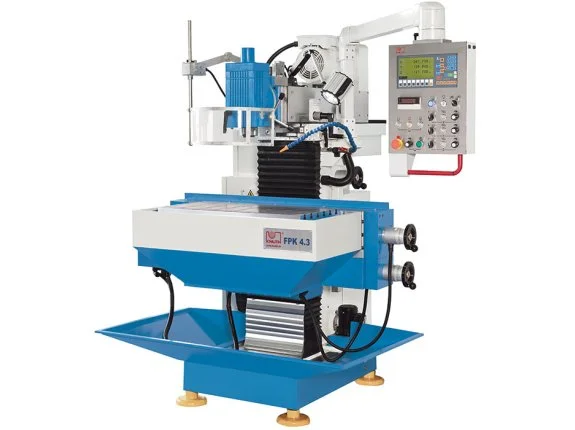

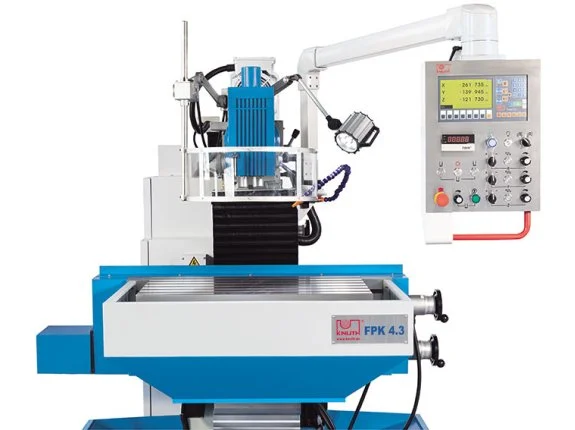

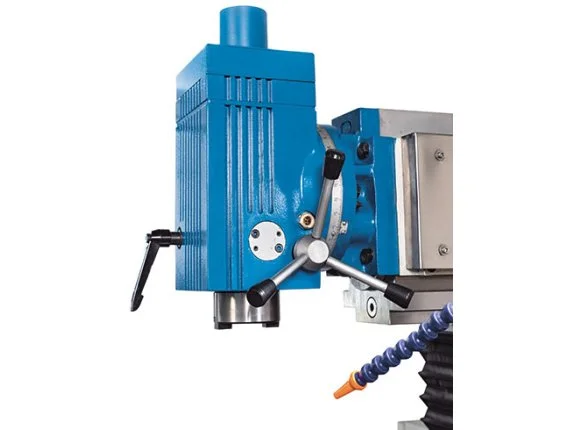

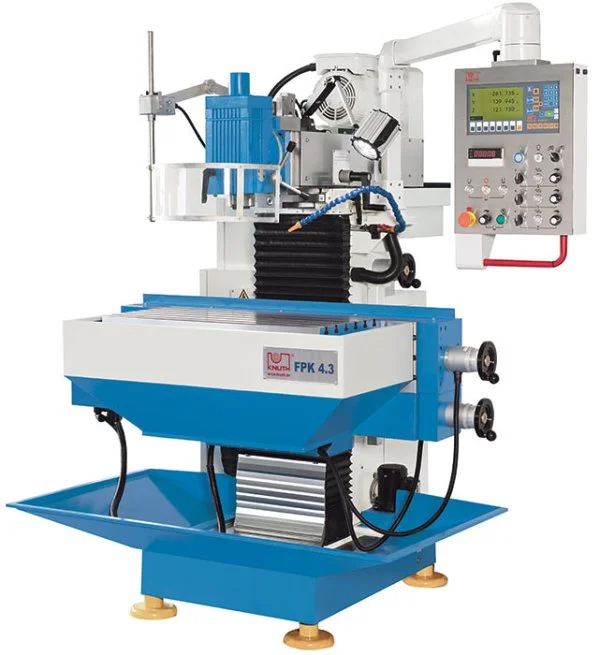

TOOLROOM MILLING MACHINE FPK 4.3 (SKU : 302340) is a compact, versatile tool-milling machine with vertical and horizontal spindle; servo drives and ball screws are fitted to increase power and precision. The compact design is described as flexible and very easy to use. The machine column is made of premium cast-iron to ensure maximum dynamic rigidity and constant precision, and precise preloaded ball screws are fitted on all axes. Ergonomically arranged controls and a swivelling control panel are provided along with a standard digital position indicator, and the price includes a fully assembled 3-axis position indicator. The vertical cutter head swivels and the quill can be moved manually, both machines feature rigid outer arbor supports for horizontal milling, automatic feed on all axes is infinitely variable with fast rapid feed, and a central lubrication system is standard equipment. The main spindle has an infinitely variable drive with counter gear to provide a wide speed range with high torque, and an extensive accessory package is included. Table dimensions are 16 in x 31 in with a vertical table of 9 in x 40 in and a maximum table load capacity of 440 lbs; the table has 6 T-slots (0.55 in x 2.48 in) and the vertical table has 3 T-slots (0.55 in x 2.48 in). Travels are X: 19.7 in, Y: 16 in, Z: 16 in with a travel pinole of 2 in and spindle center - column (min.): 6 in, (max.): 22 in; angular adjustment of vertical head: ± 90°. Rapid feed on X/Y/Z is 47.24 in/min and work feed on all axes is 0.394 in/min - 39.37 in/min; speed range is 40 rpm - 2000 rpm and spindle mount is SK 40 DIN 2080. Motor rating main drive is 4.3 Hp and motor rating coolant pump is 0.1 Hp; overall dimensions (length x width x height) are 60 in x 67 in x 71 in and weight is 3410 lbs. The FPK 4.3 is described as an indispensable part of mechanical production in tool and mold making. The series is stated to be ideally suited for the construction of tools and molds in repair shops as well as training and manufacturing departments.
