Radyne CorporationRadyne TFD Induction Power Supply

Radyne TFD Induction Power Supply

Radyne Corporation

Categories:
Low Pressure Chemical Vapor Deposition (LPCVD) Systems
Atmospheric Pressure Chemical Vapor Deposition (APCVD) Systems

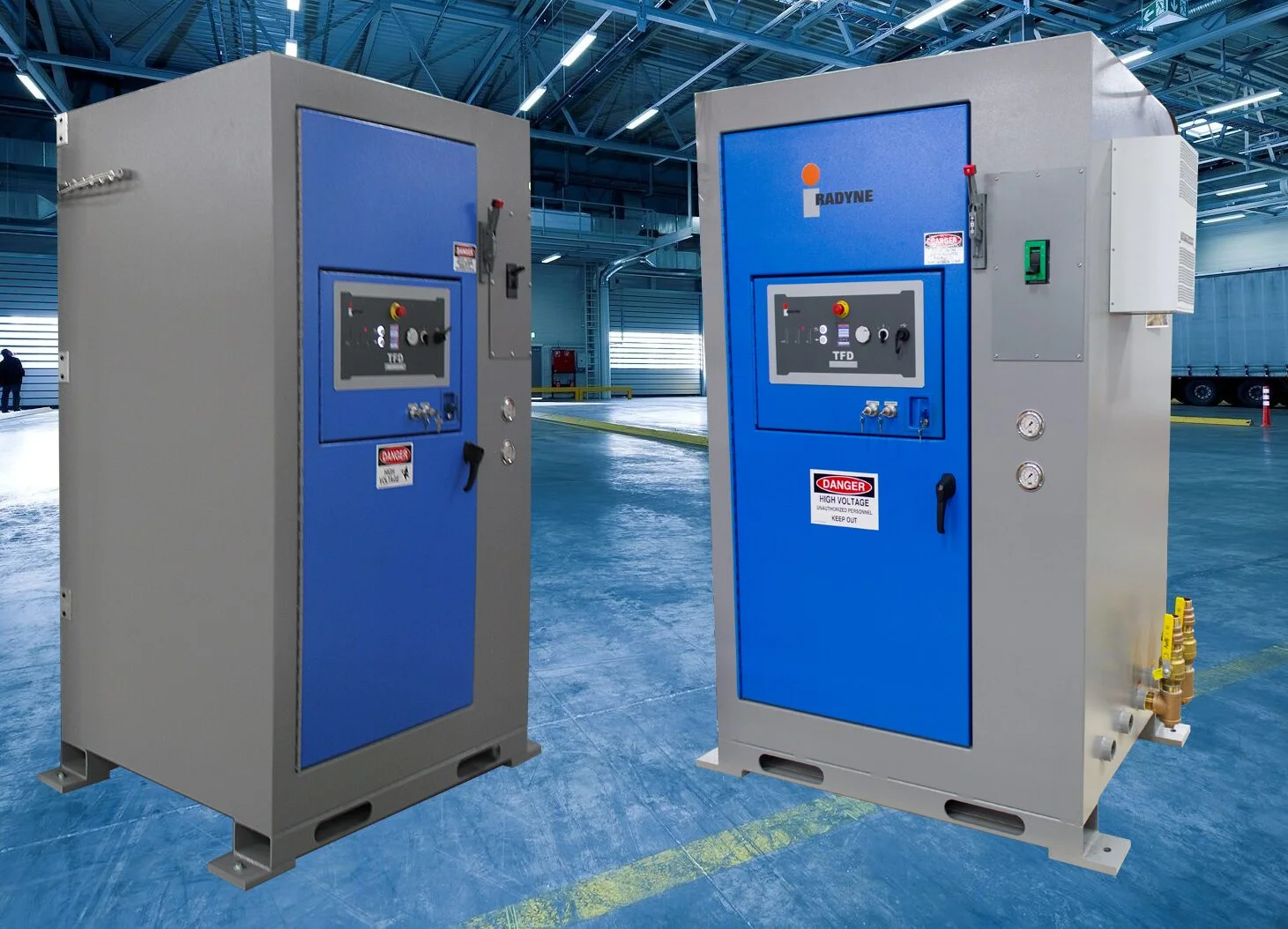

Equipment main view

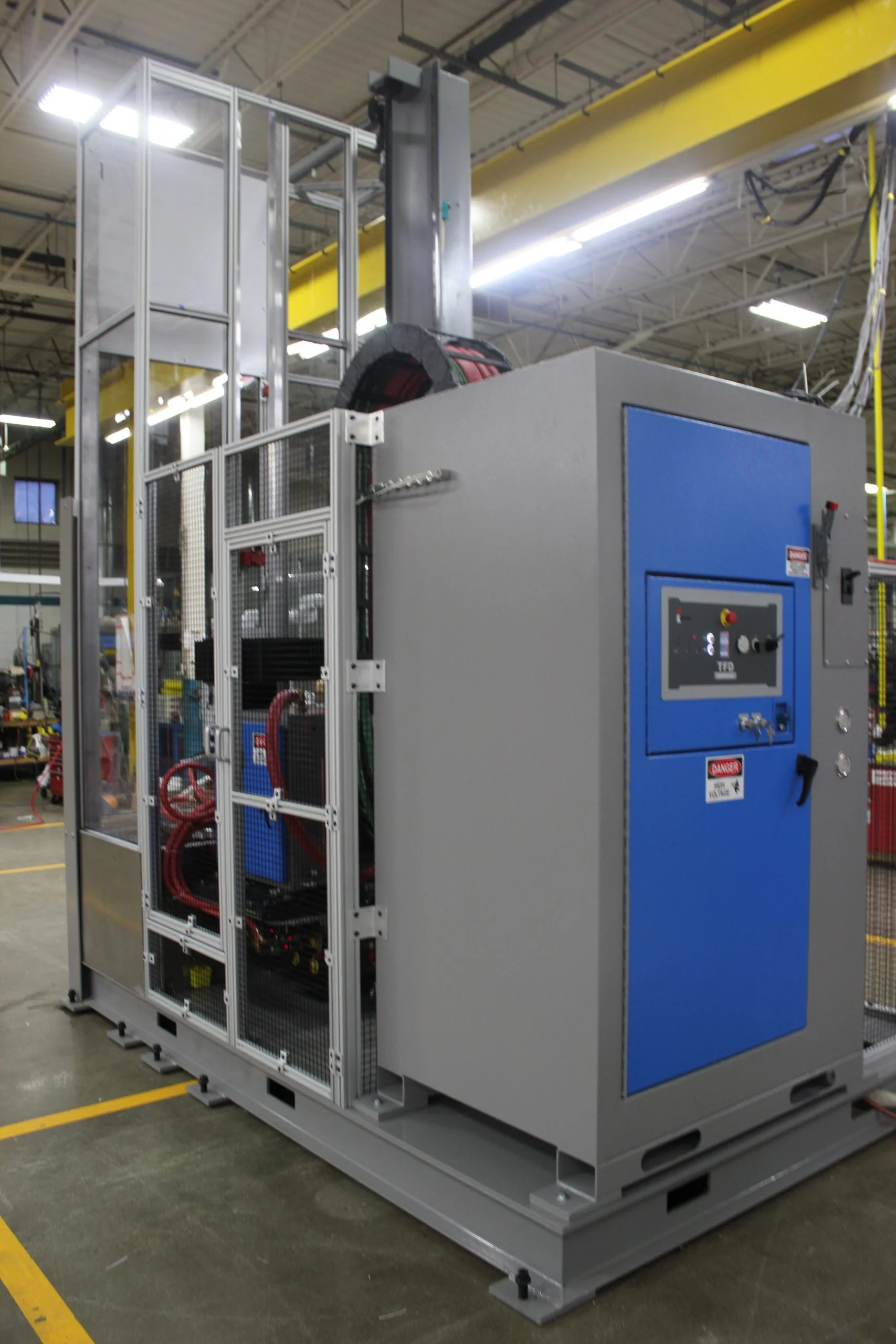

Equipment view 2

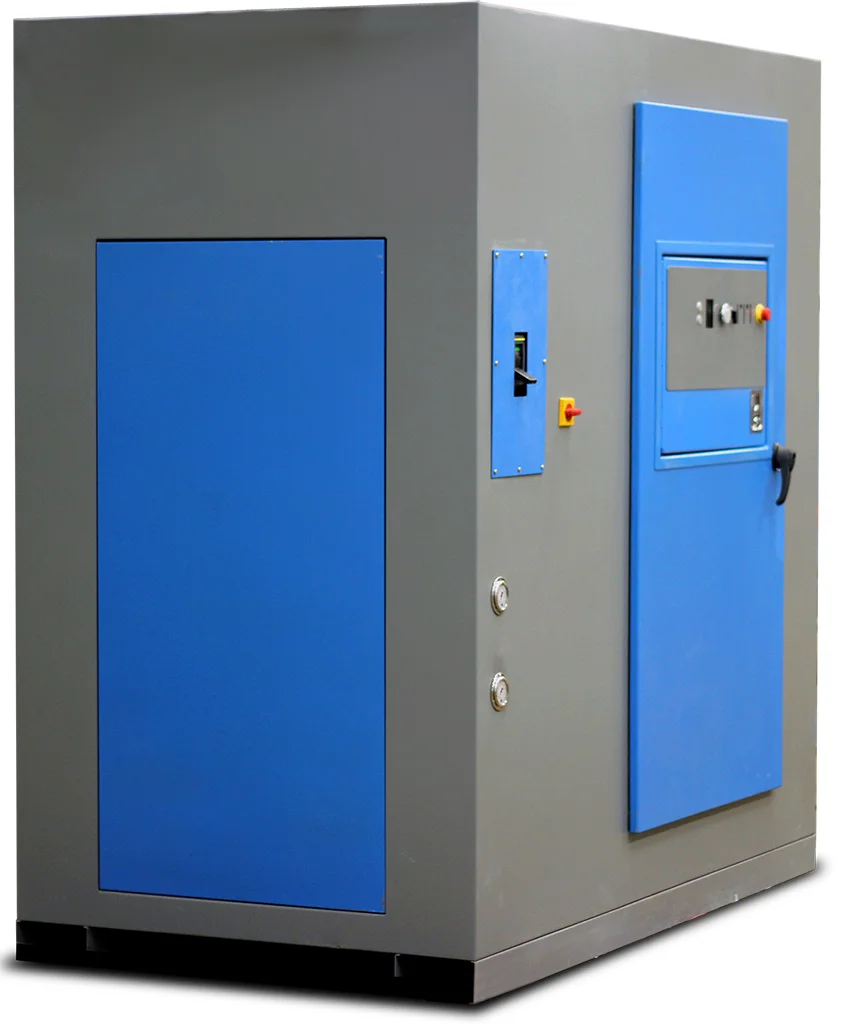

Equipment view 3
Equipment view 4

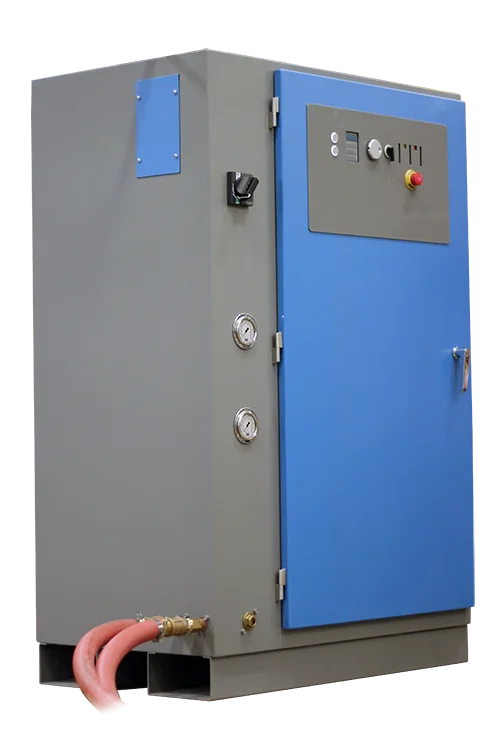

Equipment view 5

Model Overview

The Radyne TFD Induction Power Supply is an induction heating power supply with fully digital controls, programmable recipes, and remote operation capabilities. Digital iQ control firmware provides an LCD screen displaying all vital parameters and includes Ethernet and USB connectivity for remote se...

Technical Specifications

PowerSmall Cabinet TFD: 50 – 100 kW; Medium Cabinet TFD: 150 – 300 kW; Large Cabinet TFD: 300 – 600 kW
FrequencySmall Cabinet TFD: 3, 10, 30 or 50 kHz. Multi-Frequency Selectable Models optional, e.g. 3/10 kHz, 10/30 kHz, 3/10/30/75 kHz, 3/10/50/85 kHz; Medium Cabinet TFD: 3, 10, 30 or 50 kHz. Multi-Frequency Selectable Models optional, e.g. 3/10 kHz, 10/30 kHz, 3/10/30/75 kHz, 3/10/50/85 kHz; Large Cabinet TFD: 3, 10, 30 or 50 kHz. Multi-Frequency Selectable Models optional, e.g. 3/10 kHz, 10/30 kHz, 3/10/30/75 kHz, 3/10/50/85 kHz
DimensionsSmall Cabinet TFD: 36.00 x 30.00 x 76.00 in. [914.4 x 762 x 1930.4 mm]; Medium Cabinet TFD: 72.00 x 36.00 x 90.00 in. [1828.8 x 514.6 x 914.4 mm]; Large Cabinet TFD: 90.00 x 36.00 x 90.00 in. [2286 x 914.4 x 2286 mm]
Line VoltageSmall Cabinet TFD: 240 VDC or 480 VDC; Medium Cabinet TFD: 240 VDC or 480 VDC; Large Cabinet TFD: 240 VDC or 480 VDC
Input RequirementSmall Cabinet TFD: 62-186 kVA; Medium Cabinet TFD: 250-375 kVA; Large Cabinet TFD: 375-745 kVA
