DOLPHIN VL 0100–0270 A Total Recirculation

Overview

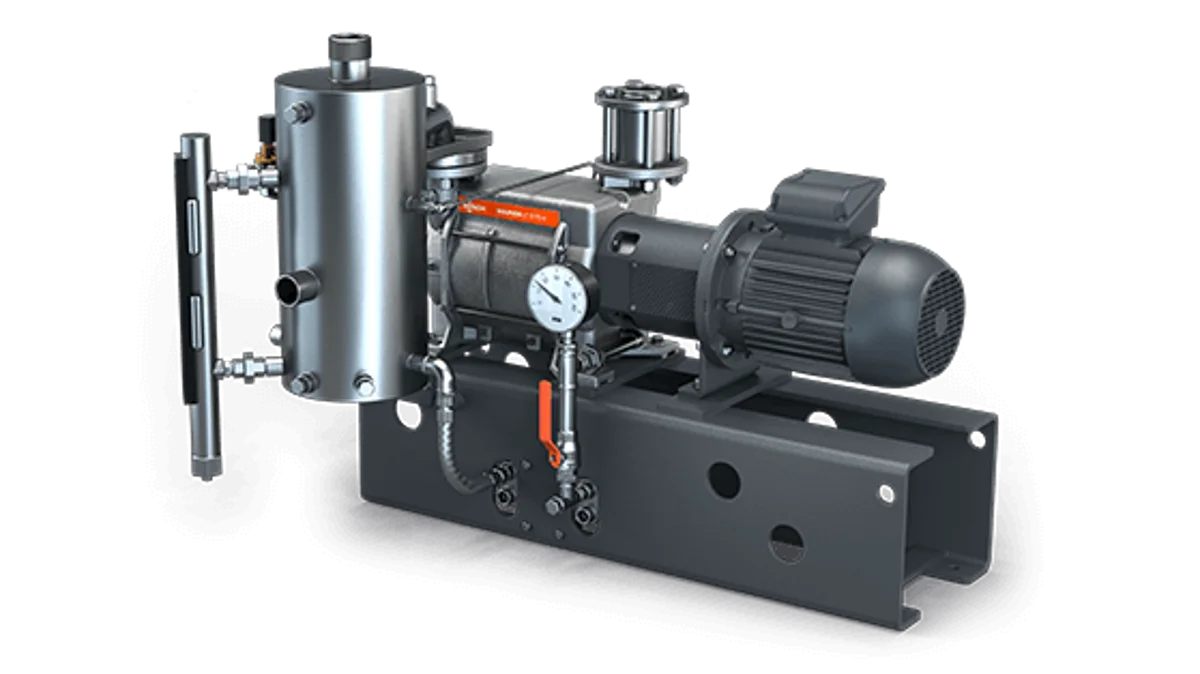

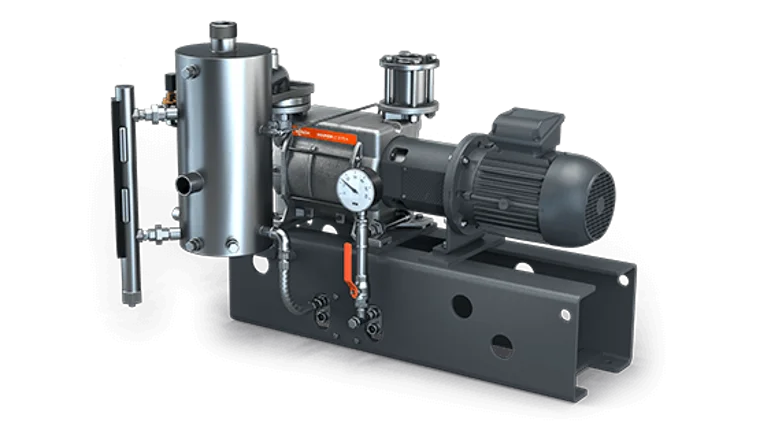

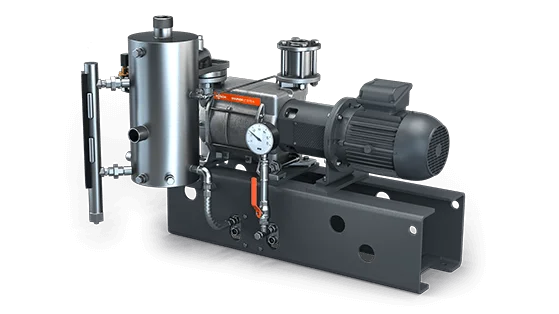

The DOLPHIN VL 0100–0270 A Total Recirculation is a family of liquid ring vacuum pump units. Proven technology with a corrosion-free stainless steel impeller provides extremely high vapor and particle tolerance, and housings are available in cast iron (EN-GJL-200) or 316 grade stainless steel; an ATEX-certified version is available (Cat. 1(i) / cat 2(o) IIB T4). The unit is supplied as an all-in-one assembly with base frame, operating fluid separator, heat exchanger and control system, and it includes an inlet check valve, fresh liquid supply kit, level indicator with switches, temperature and pressure indicators, and cavitation protection. Operating characteristics include full recirculation of operating fluid, low operating fluid consumption, recovery of condensed vapors and process gases, isolation of cooling liquid from operating fluid, and the possibility to use operating fluids other than water. Key technical data by model (ISO 50 Hz): - DOLPHIN VL 0100 A Total Recirculation: Nominal pumping speed 82 m³/h; Ultimate pressure 130 hPa (mbar); Max. overpressure 0.5 bar(g); Nominal motor rating 2.2 kW; Nominal motor speed 1450 min⁻¹; Sound pressure level (ISO 3744), 1 m distance, at medium load 70 dB(A); Weight approx. ATEX 231 kg, Safe Area 206 kg; Dimensions ATEX 1020 x 737 x 960 mm, Safe Area 983 x 730 x 819 mm; Gas inlet G 1d". - DOLPHIN VL 0180 A Total Recirculation: Nominal pumping speed 144 m³/h; Ultimate pressure 130 hPa (mbar); Max. overpressure 0.5 bar(g); Nominal motor rating 4.0 kW; Nominal motor speed 1450 min⁻¹; Sound pressure level (ISO 3744), 1 m distance, at medium load 70 dB(A); Weight approx. ATEX 256 kg, Safe Area 214 kg; Dimensions ATEX 1090 x 737 x 960 mm, Safe Area 1033 x 730 x 819 mm; Gas inlet G 1d". - DOLPHIN VL 0270 A Total Recirculation: Nominal pumping speed 220 m³/h; Ultimate pressure 130 hPa (mbar); Max. overpressure 0.5 bar(g); Nominal motor rating 5.5 kW; Nominal motor speed 1450 min⁻¹; Sound pressure level (ISO 3744), 1 m distance, at medium load 70 dB(A); Weight approx. ATEX 293 kg, Safe Area 256 kg; Dimensions ATEX 1208 x 737 x 960 mm, Safe Area 1136 x 730 x 819 mm; Gas inlet G 1d". Listed markets and applications include Carbon Capture (Membrane Capture); Chemical (Packaging; Filtration, Degassing; Distillation, Solvent Recovery; Evaporation, Drying); Confectionary (Pneumatic Conveying; Molding and forming; Vacuum extrusion; Mixing Preparation and cooking); Dairy (Milk Powder - Evaporation; Milk Powder - Powder handling); Fish farming (Retaining vacuum for filleting; Fish meal impregnation; Pneumatic transportation of live fish); Packaging (Liquid packaging); Pharma and Biotech (Distillation, Solvent Recovery; Filtration, Degassing; Evaporation, Drying; Packaging); Plastics processing (Pyrolysis; Extruder and Melt Degassing); and Woodworking (Impregnation).
