POWERFLOW ONE

Overview

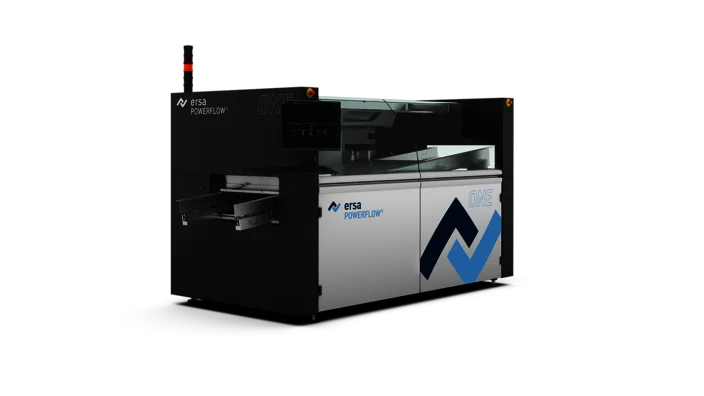

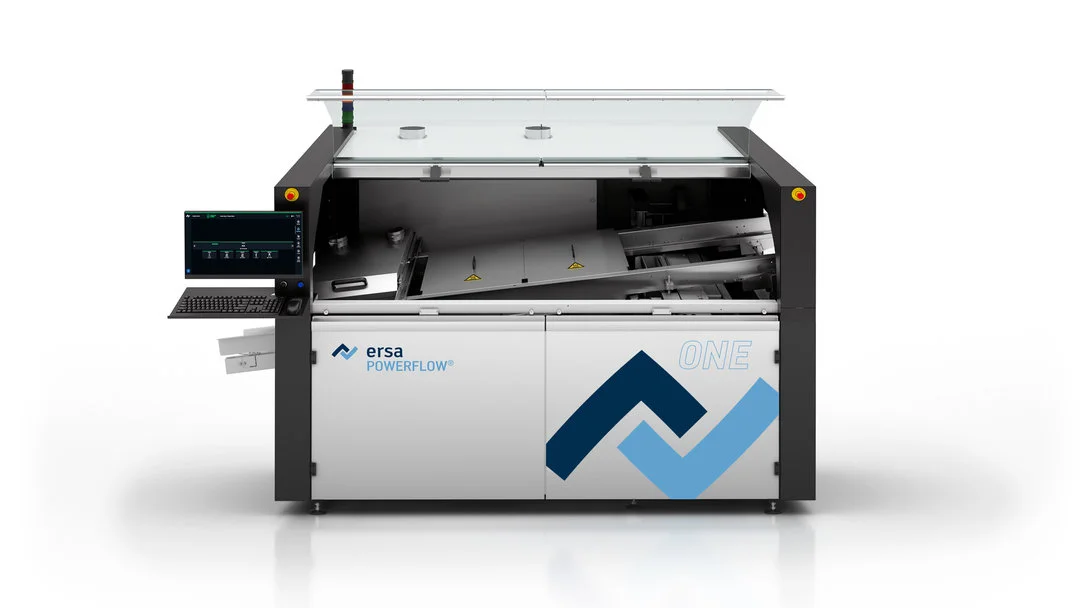

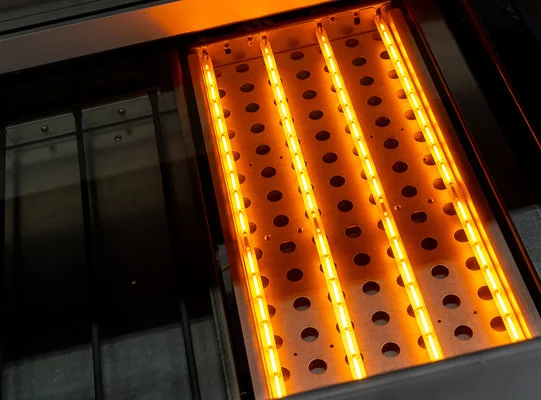

The POWERFLOW ONE is described as an entry-level wave soldering machine for small electronics manufacturers, offering a compact footprint and reduced downtime through the use of established components such as solder pots and heaters. The machine length is 2,900 mm with a width of 1,481 mm and a height of 1,590 mm (with inlet height 635 mm; outlet height 1,066 mm); weight is 1,500 kg. Transport and PCB handling specifications include PCB width finger transport 406.4 mm, PCB width frame transport 400 mm, PCB length 120-500 mm, PCB structures 100 mm, and a transport speed range of 0.5 m/min to 1.8 m/min. The preheating system is described as powerful with 3 cassettes (2x medium wave, 1x bright radiator) and preheating module bottom dynamic power 5.2 kW with medium wave power 2x 4 kW. The soldering module uses proven Ersa pot technology and is listed with a soldering module power of 9.2 kW; solder content is specified as 630 kg for SnPb37 and 525 kg for SAC305 with an optional 345 kg configuration, and the product text also cites a filling volume of only 345 kg. Heating time (to 260 °C) is approx. 210 min (optional 180 min at 345 kg) and max. solder temperature is 300 °C. Optional features and highlights noted include a Nitrogen option, optional finger transport, optional inline capability, a precise spray fluxer for flux application, and a modular state-of-the-art software architecture with optimized machine data acquisition, a modern intuitive user interface, and comprehensive user management. The POWERFLOW ONE is positioned as a cost-effective entry point into the Ersa wave soldering portfolio for small electronics manufacturers and focuses on the essentials of wave soldering. The basic version is designed for stand-alone operation with a soldering frame. Optional extensions allow upgrades and adaptations up to high-performance inline operation, and the machine can be equipped with options such as finger transport and a Nitrogen option as indicated in the product information.
