PRO MIG® 140 (K2480-1)

Overview

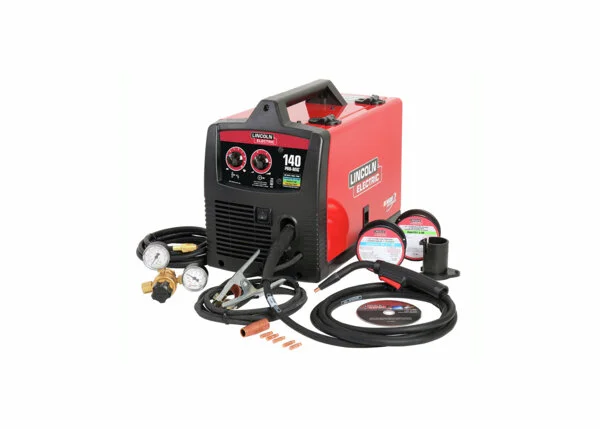

PRO MIG® 140 (K2480-1) is a portable MIG/Flux‑Cored welding power source and wire feeder configured for MIG (GMAW) and Flux‑Cored Self‑Shielded (FCAW‑S) processes with DC polarity and CV (constant voltage) output control. Output welding range is 30-140A and the unit carries a Wire Feed Duty Cycle of 20%. Maximum wire thickness is .035 and minimum wire thickness is .025, fed through a single driven roll (1 roll). Intended for light fabrication, maintenance/repair and production tasks that fall within a weldable thickness range from 24ga up to 5/16in, the PRO MIG 140 suits shop-floor and on‑site work where portability and simple MIG or flux‑cored welding are required. Its portable feeder design, 10 FT work cable and 10FT welding gun cable assembly provide reach for assembly-line stations or field fixtures. The machine runs from standard single‑phase 120 V service (listed as 120/1/60 and compatible with 110/115/120 V), draws 20A at 60 Hz, and is appropriate for intermittent duty applications rather than extended continuous heavy production given the 20% duty cycle.
