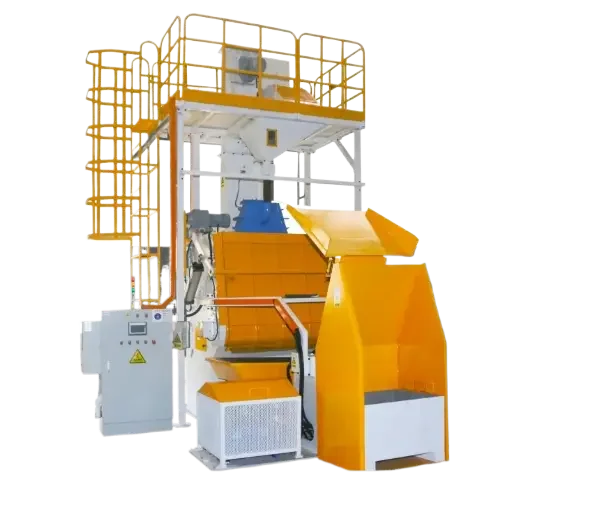

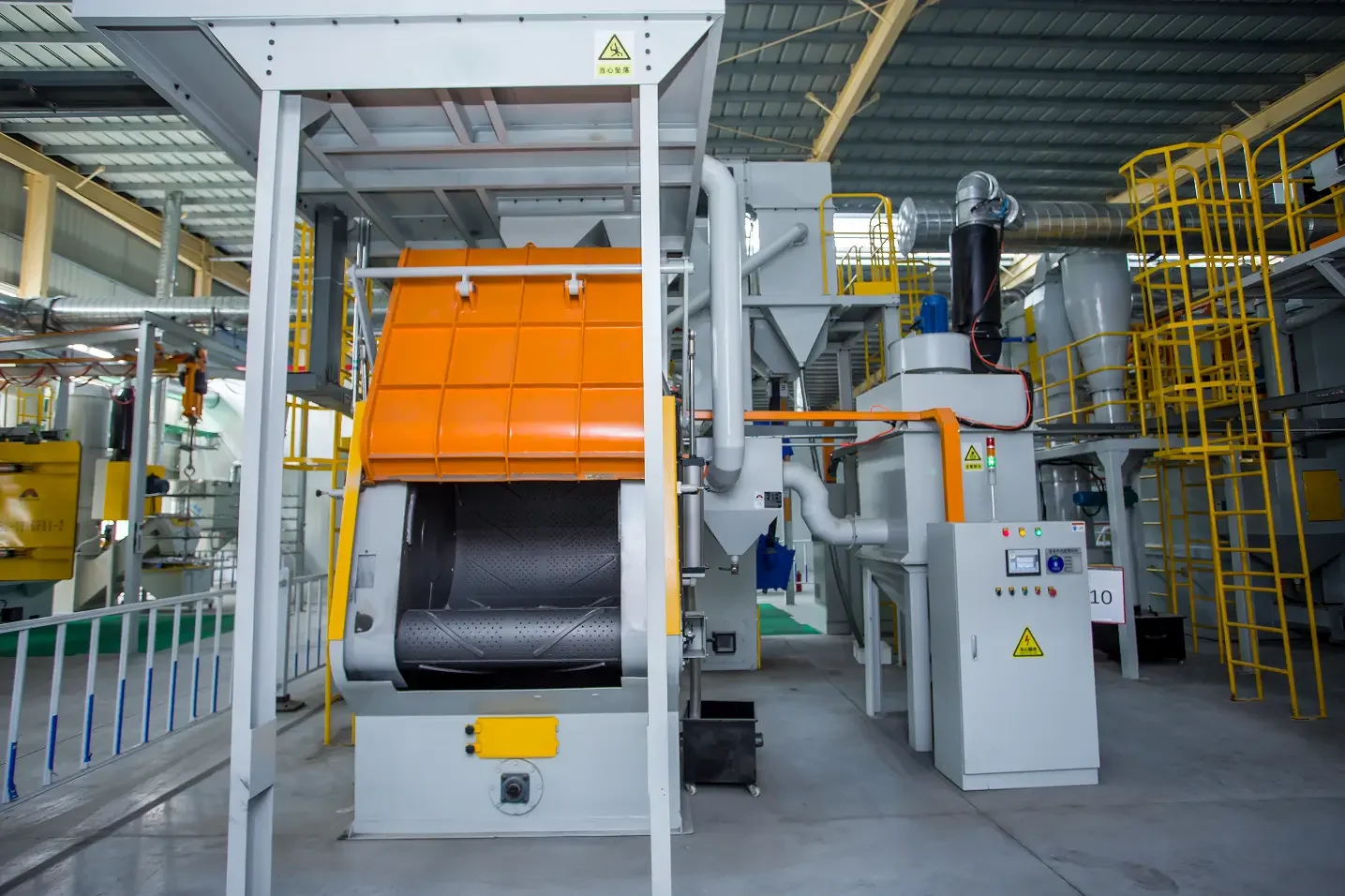

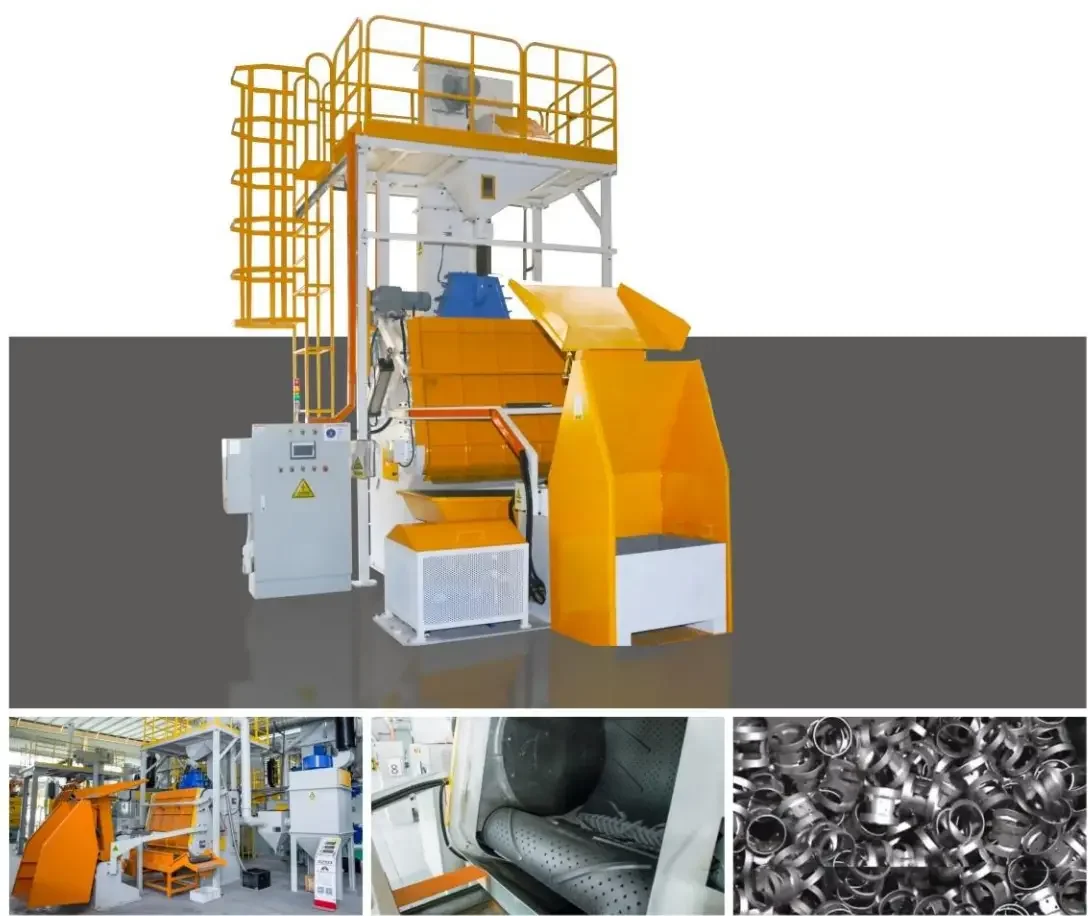

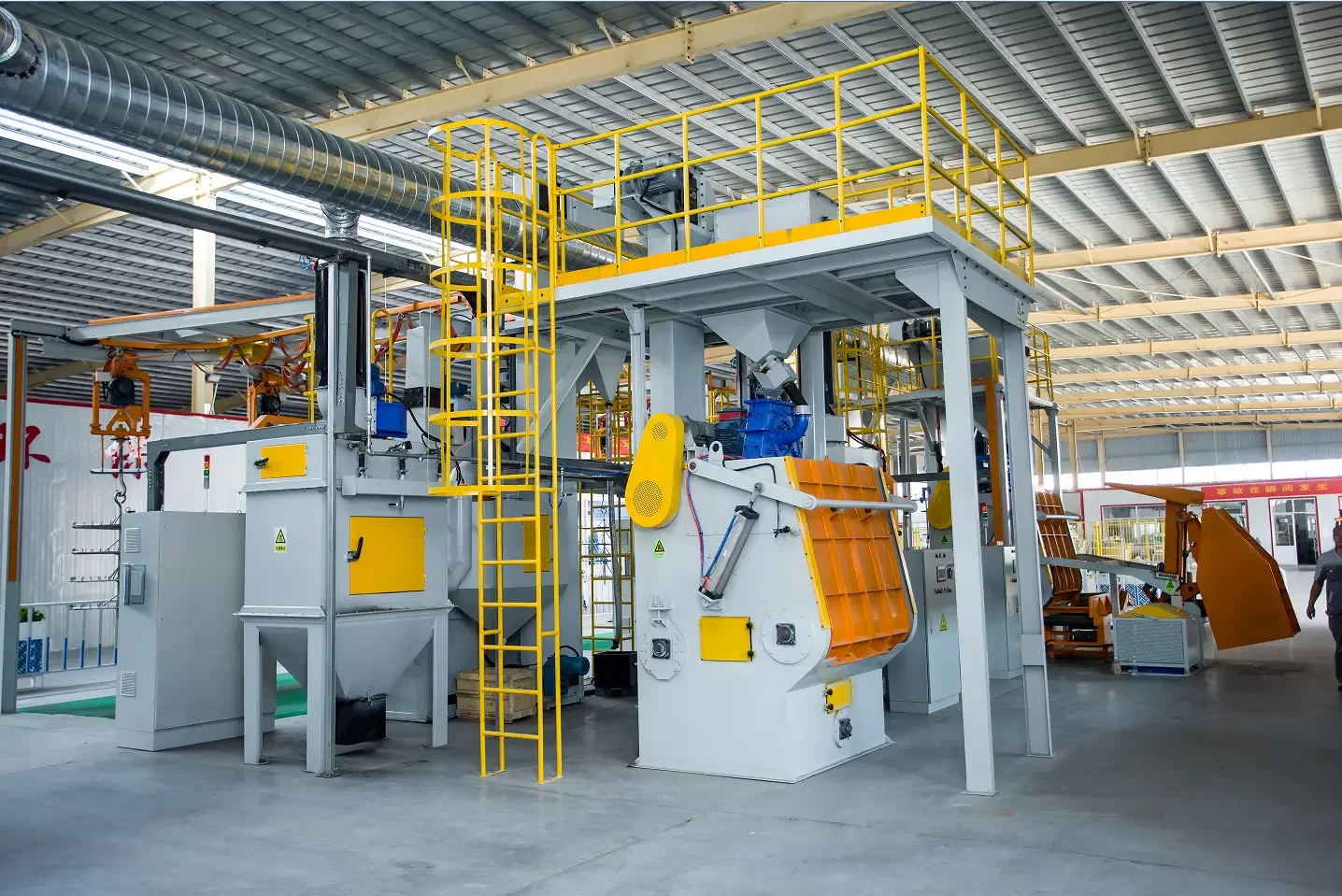

TUMBLE BELT SHOT BLASTING MACHINE

Overview

TUMBLE BELT SHOT BLASTING MACHINE features Daseon high-performance blast wheels that guarantee homogeneous blasting results in extremely short cycle times. The machine uses an endless belt available as top-quality perforated rubber or hardened steel slats and can be configured as a roller-style design with rubber belt or steel belt. The shot blasting chamber is made of 4mm Q235 steel bending and welded structure and includes a wear plate chamber wall with 10mm Mn13 to prevent wear. The system includes an air separator conveyor to separate steel shot, crushed steel shot, and dust; a mesh screen separator connected to a hoist filters fine materials while coarse materials and impurities are transported to a waste tank via a screw conveyor; the front has an open-access door for daily observation and maintenance and a multipole adjustable plate structure adjusts the smoothness of the sand curtain. The machine uses a high-resistance rubber track with uniform drive forward rotating parts to achieve a uniform cleaning effect and the main door is controlled by a pneumatic cylinder that can automatically open and close. OEM is Available; Sample: Refuse; Payment: L/C,T/T; Place of Origin: China; Shipping: Sea freight  Land freight; Supply Ability: 5000 unit per Year. The machine is designed for tumbling batch operations where work pieces continuously cascade and tumble over each other to provide all-around blasting coverage and cleaning of every side. It is an option for blasting and cleaning work pieces in batches to achieve optimum blasting results on small delicate metallic parts, heavy castings, and parts partially covered with sand or scale. Customization options for perforated rubber belts or hardened steel belts support descaling, deburring, desanding, and core sand removal for all types of castings and heat-treated workpieces, and the automatic loading and unloading system provides constant, stable blasting results while increasing overall productivity and reducing unproductive times.
