Explorer WSW

Overview

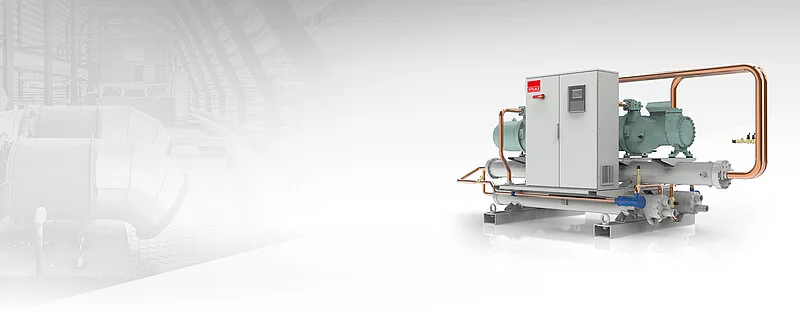

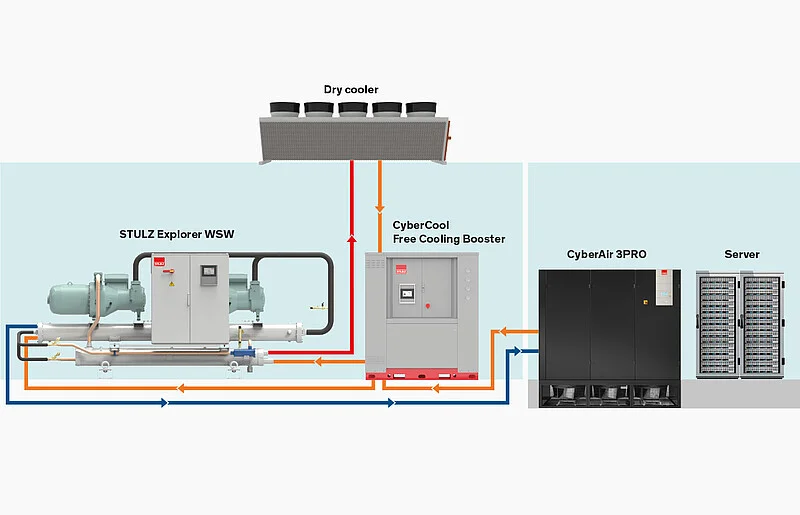

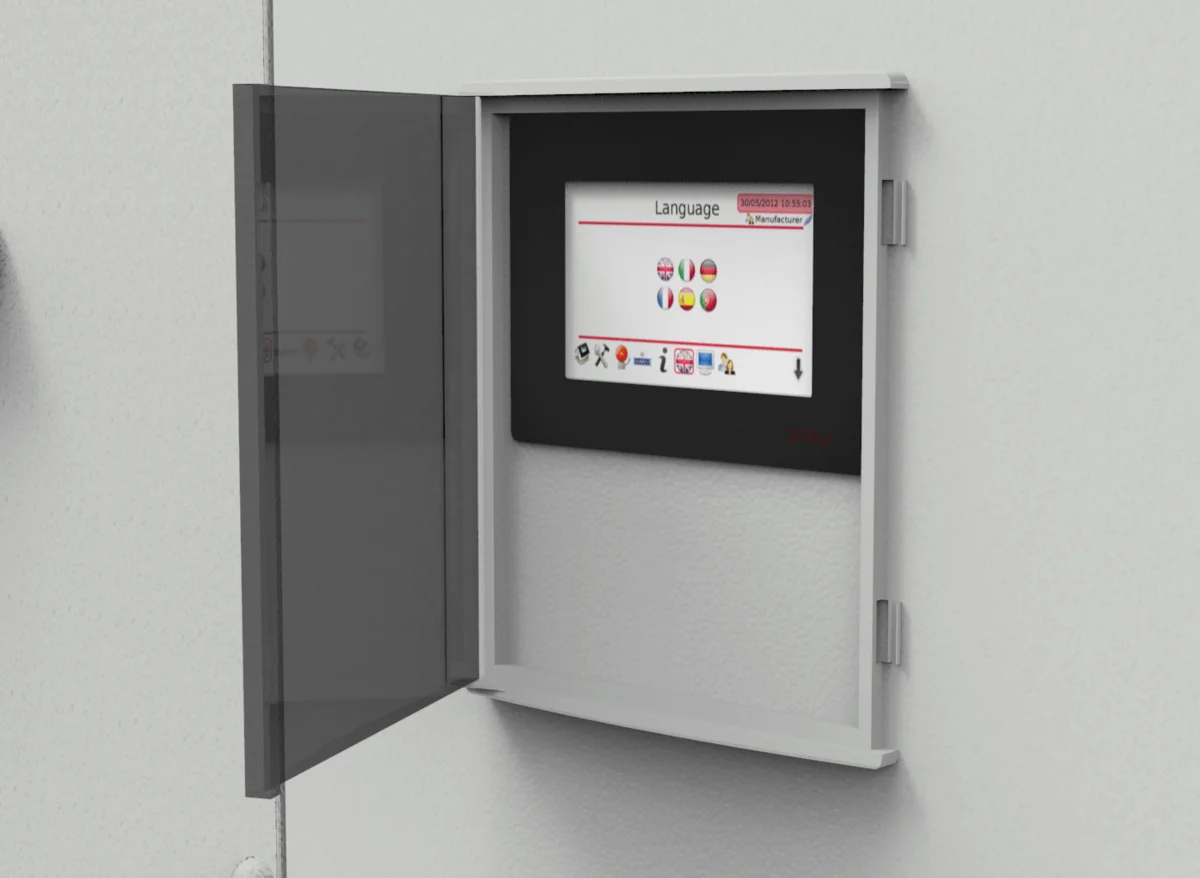

Explorer WSW is a water-cooled chiller for mission critical systems. The unit is offered in 16 sizes with a total cooling capacity of 230 30 61,530 kW. Refrigerants specified are R513A (GWP: 573) and R134a (GWP: 1,430). Dimensions range as follows: Length (mm): 3,010 30 5,390; Depth (mm): 1,340 30 1,931; Height (mm): 1,880 30 2,165. The Explorer WSW is available in single or dual circuit chiller versions and uses a direct evaporator. Key functional components include an electronic expansion valve, microprocessor control and infinitely adjustable power control. Optional and related equipment includes the CyberCool Free Cooling Booster and a dry cooler for Free Cooling operation. Control and monitoring are provided by the STULZ SEC.blue controller with touchscreen in two sizes, integrated control of up to 6 units, and communications including Modbus TCP/IP, RTU and Webserver. The design emphasizes compact footprint, high-quality components with easy access for maintenance, and use of the non-flammable refrigerant alternative R513A to minimize refrigerant quantities. The Explorer WSW is specified for Industrial Process Cooling with flexible connection options for integration into existing systems and Free Cooling for efficient year-round operation. The unit is presented for facilities requiring compact indoor installation in noise-sensitive environments and is cited for use in hotels, office buildings, shopping centers and hospitals. For Data Centers, the product supports automatic switchover for connecting dual mains supply, quick-start via a UPS buffered controller and year-round efficiency using Free Cooling.
