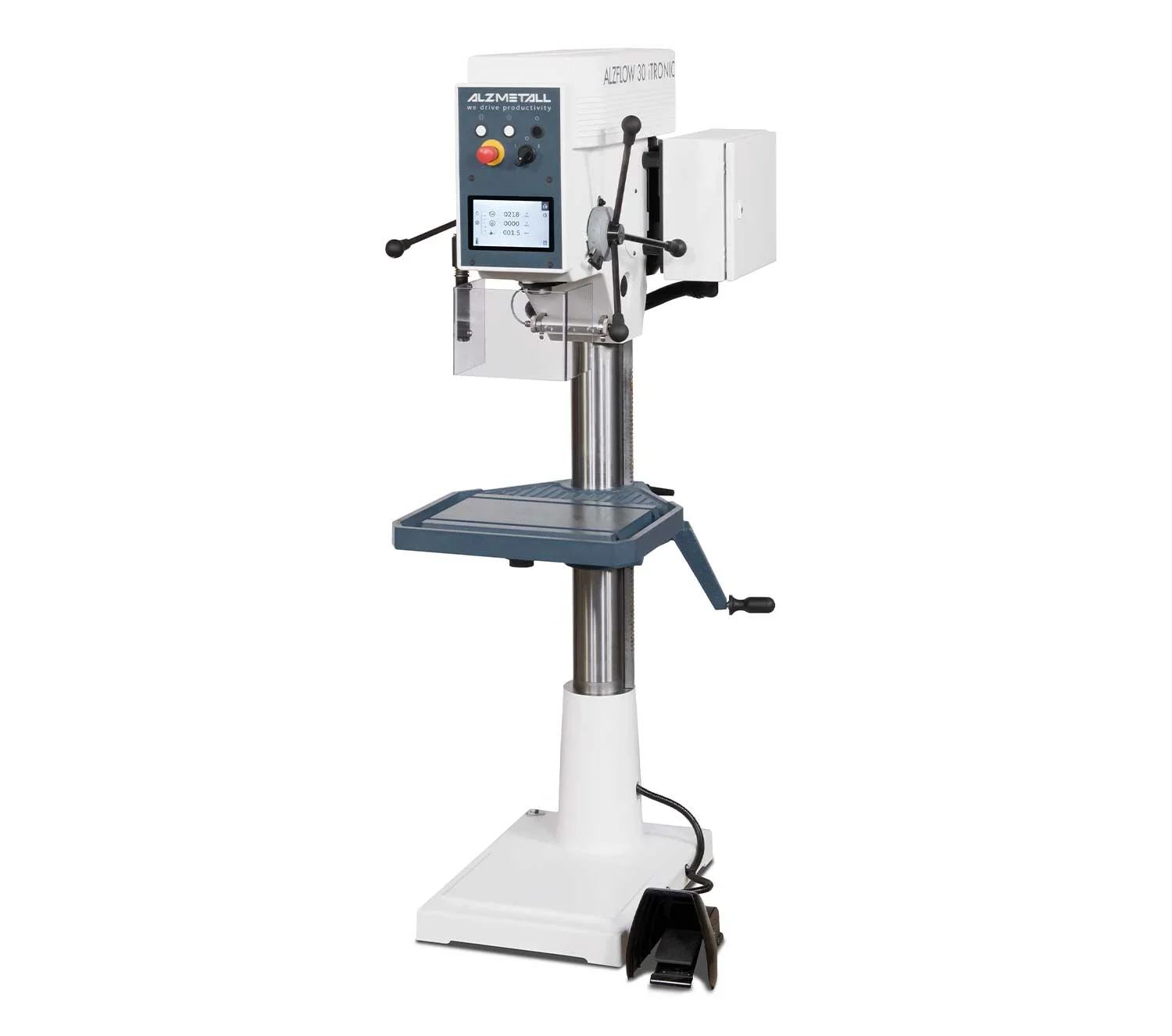

ALZFLOW 30 iTRONIC

Overview

ALZFLOW 30 iTRONIC (Product variant: ALZFLOW 30/S) is a Flow Drilling Machine listed under the machine concept Column Drilling Machines, Flow Drilling Machines and described with keywords flowdrilling, chipless drilling. Drilling Capacity Steel E335 (St 60) [mm]: 30 and Tapping performance steel E335 (St 60) [mm]: M 16. Spindle, short: MT 3 and Z-travel of spindle [mm]: 140 with Distance spindle to column [mm]: 293 and Column diameter [mm]: 115. Table clamping area [mm]: 515 x 360 and Distance spindle - table min./max. [mm]: 132 / 724. Feed: manual. Power [KW]: 1,0 / 1,6 with Motor 1 [MIN-1]: 750 / 1500 and Spindle Rpm range | Option 1 [U/MIN-1]: 225-4300. Standard equipment includes 7” TFT – LCD-MULTI-TOUCH Display, tapping auto-reverse w/o foot switch, infinitely variable speed drive, spindle protection, push button for starting the Right turn (CW), push button for starting the Left turn (CCW), push button for Spindle off, EMERGENCY-OFF switch, main switch, Control Tension 24 Volts, Protection Clas IP 54, Motor Isolation Class ”F” (155°) and Lacquer. Touchscreen: Yes. Options listed are LED machine light; Foot Pedal Reverse Switch for CW and CCW rotations during the tapping process; Coolant Attacment B; Maximum Drill Depth Readout in the Touch Display; Anchoring set; and Packaging. The machine is used for flowdrilling (chipless drilling) operations and for tapping, as indicated by the flowdrilling and chipless drilling descriptors and the tapping performance specification. It can drill steel E335 (St 60) up to 30 mm and perform tapping up to M 16, with manual feed and an infinitely variable speed drive. Tapping operations can use the auto-reverse function without a foot switch and can be executed in Right (CW) and Left (CCW) rotations.
