PRESS SYSTEMS

Overview

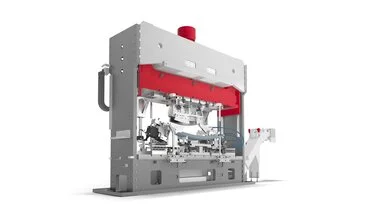

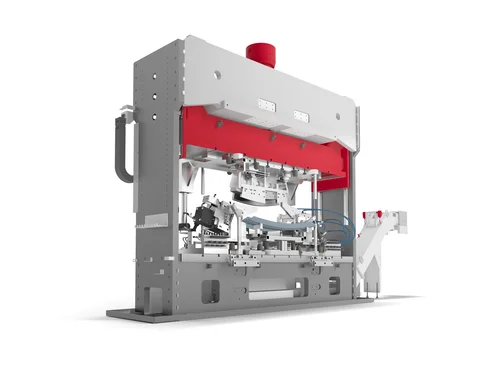

Profiles are formed and punched on state-of-the-art hydraulic presses with solid base frames, precise guides, and servo-hydraulic positioning systems for main and auxiliary functions. - Max. working pressure: 320 bar - Upper TDC (mm): 1,300 - Lower TDC (mm): 800 - Min. tool height (mm): 800 - Table dimensions (mm): 3,100 x 1,000 - Table height (mm): approx. 870 - Rapid traverse speed: 0 200 mm/s, continuously adjustable - Forming speed: 0 35 mm/s, continuously adjustable - Positioning accuracy (mm): b10.1 Punching and forming operations are performed vertically in a cycle specified by the program, with regulated output and speed; the presses offer a wide variety of tool-replacement and clamping systems and can be loaded manually or automatically. Components listed for the system include CYBERNETICS PRODUCE, CYBERNETICS SIMULATION, and CYBERNETICS VISION. The machine is designed according to customer-specific requirements and the resulting technical data are defined in collaboration with the customer. Aluminum profiles are punched and formed in the press, with punching and forming operations performed vertically in a program-specified cycle and with regulated output and speed. The presses can be loaded manually or automatically. The machine is designed according to customer-specific requirements and resulting technical data are defined in collaboration with the customer.
