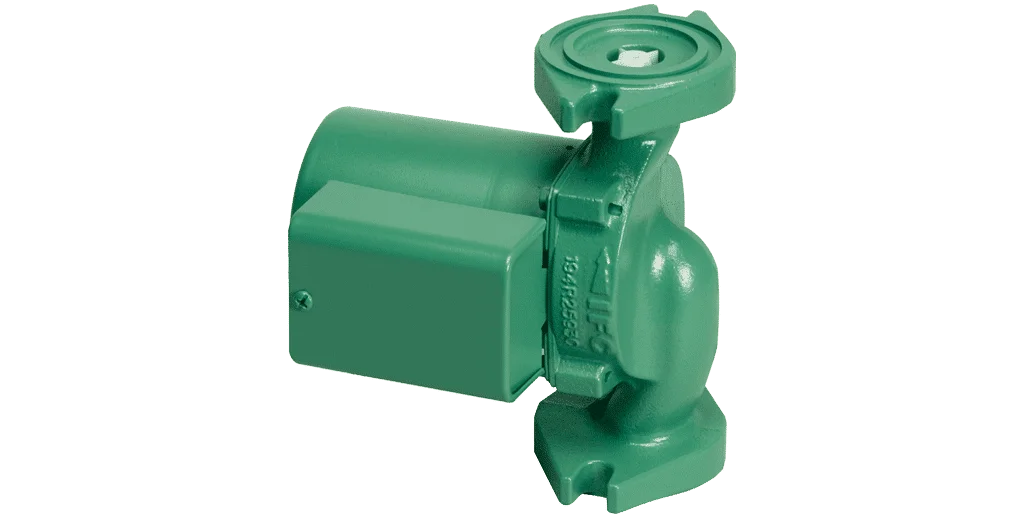

00R-IFC Radiant Heating Circulator

Overview

The 00R-IFC Radiant Heating Circulator is specifically designed for the flow and head requirements of radiant heating systems. Its performance curve delivers flow you can use in a wide combination of tube diameters and lengths of run. The unit includes a removable, spring-loaded Integral Flow Check (IFC®) that prevents gravity flow and eliminates the need for a separate, in-line check valve; the IFC is located in the discharge port for easy access and service. The pump is available in cast iron or stainless steel construction and the casing can be purged using standard piping configurations. Performance data: Flow Range: 0-12.5 GPM; Head Range: 0' – 15'; HP: 1/25; Min. Fluid Temp.: 40°F. (4°C); Max. Fluid Temp.: 230°F (110°C); Max. Working Pressure: 125 PSI; Connection Sizes: ¾”, 1″, 1 ¼”, 1 ½” Flanged. Additional features include an LED indicator light to show when the pump is operating, a unique replaceable cartridge design that is field serviceable, compact quiet operation, direct drive with low power consumption, self-lubricating operation, no mechanical seal, and availability in cast iron or stainless steel construction. Intended application stated for radiant heating systems. The pump’s performance curve supports use with a wide combination of tube diameters and lengths of run, and the Integral Flow Check prevents gravity or reverse flow while eliminating the need for a separate in-line check valve.
