Airlock module for mill pneumatics MPPA

Overview

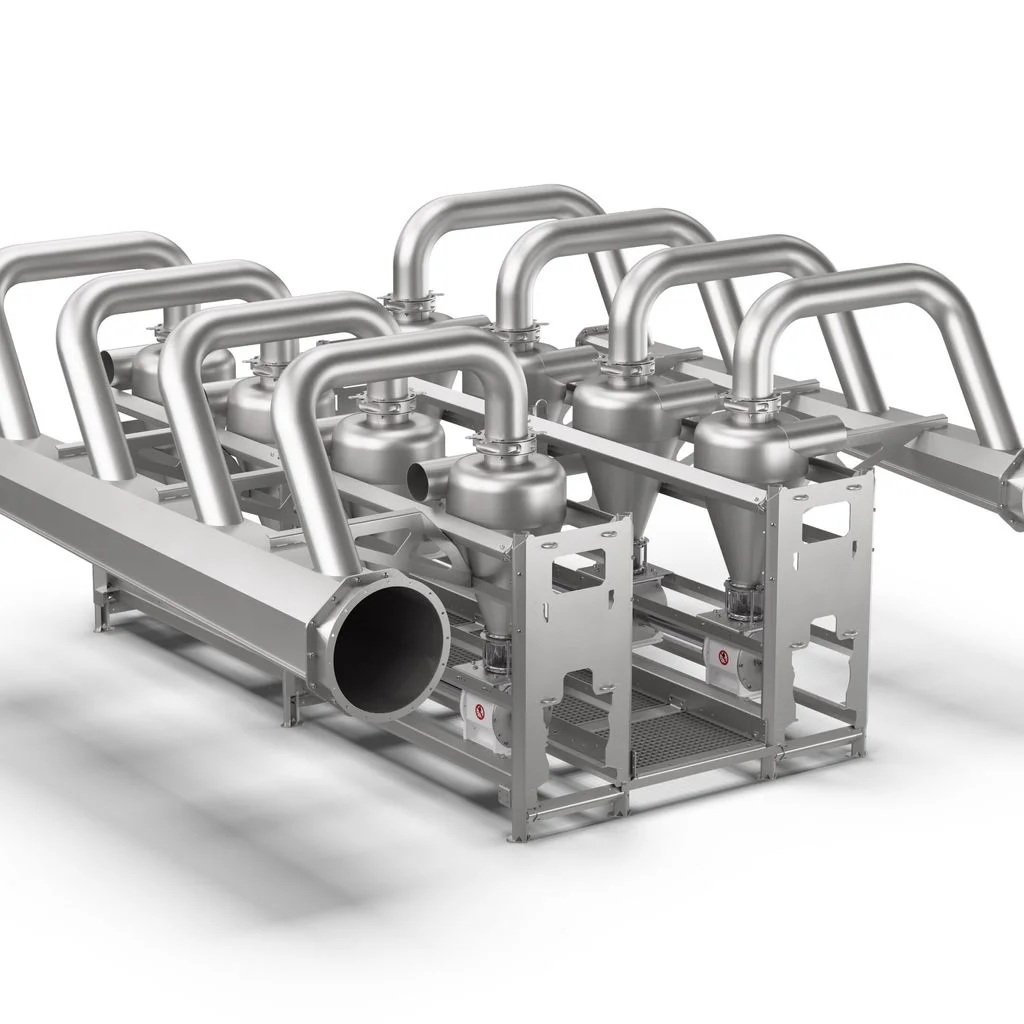

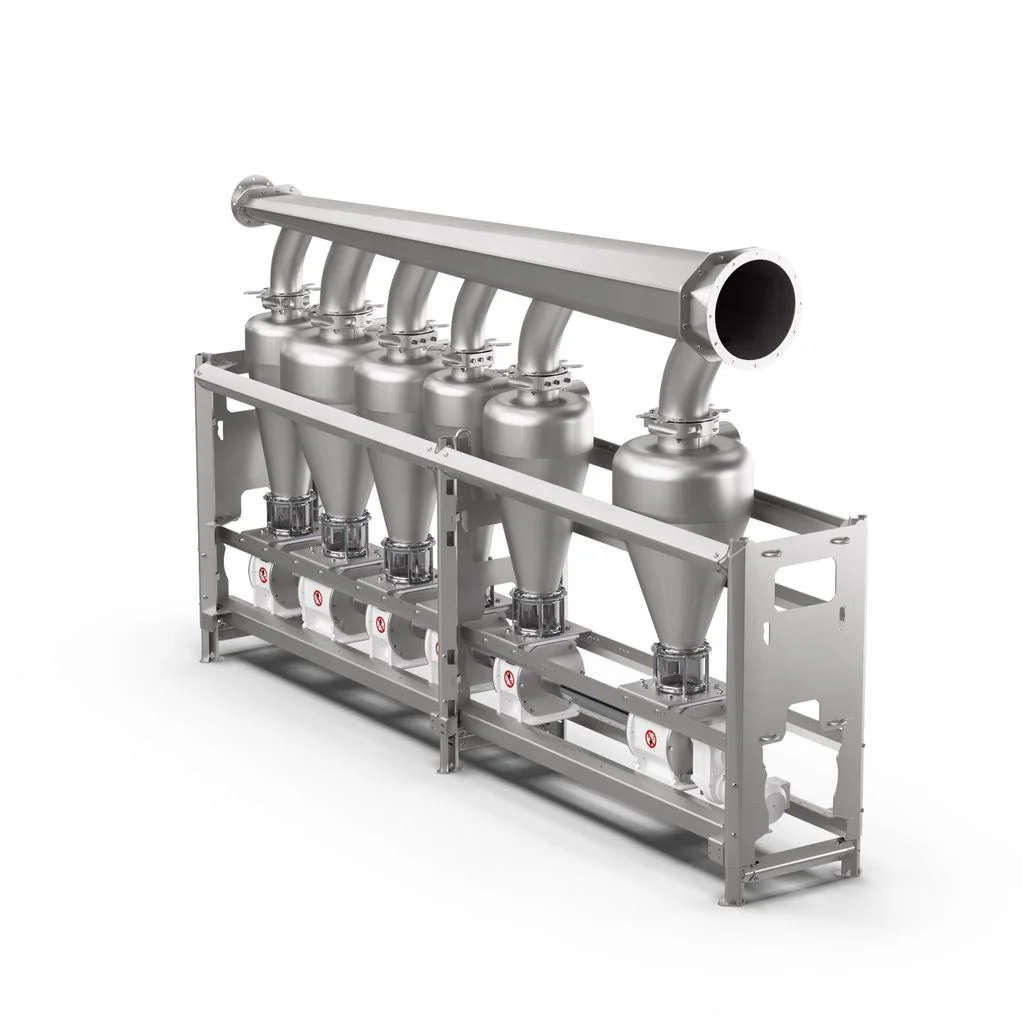

The Airlock module for mill pneumatics MPPA is a modular airlock table that is pre-assembled and tested and can be placed directly on top of sifters or on the cyclone floor. The module consolidates airlocks, cyclones and air collecting ducts into one complete pre-assembled module, enabling up to six times faster on-site installation compared with conventional systems delivered as separate components. Positioning the air collecting manifold laterally saves 700 mm of height, allowing installation of a sifter with airlock table on the same standard 5-m floor; the suspended MPPA design includes a module walkway for access to components. The unit features an optimized airflow and new duct design, is made of stainless steel with a seamless connecting pipe, and has quality-class-2 weld seams that are food-use approved, with fewer weld seams contributing to its hygienic design. Product flyer: https://dam.buhlergroup.com/asset/e3ab8cebf6ca4a74b56888fb5372b911/BUZ_MS_Flyer%20Airlock%20module%20MPPA%2016-9_en.pdf The MPPA module is used in flour mills to separate conveying air from the product by combining airlocks, cyclones and air collecting ducts into a single pre-assembled module. It can be installed directly on top of sifters or on the cyclone floor and, by saving 700 mm of height via a laterally positioned air collecting manifold, allows a sifter with airlock table to be installed on the same standard 5-m floor; the suspended MPPA design provides a walkway for component access. Delivered pre-assembled, the module reduces on-site installation time by up to six times, and its stainless-steel construction with food-use approved, quality-class-2 weld seams supports hygienic requirements in food-processing applications.
