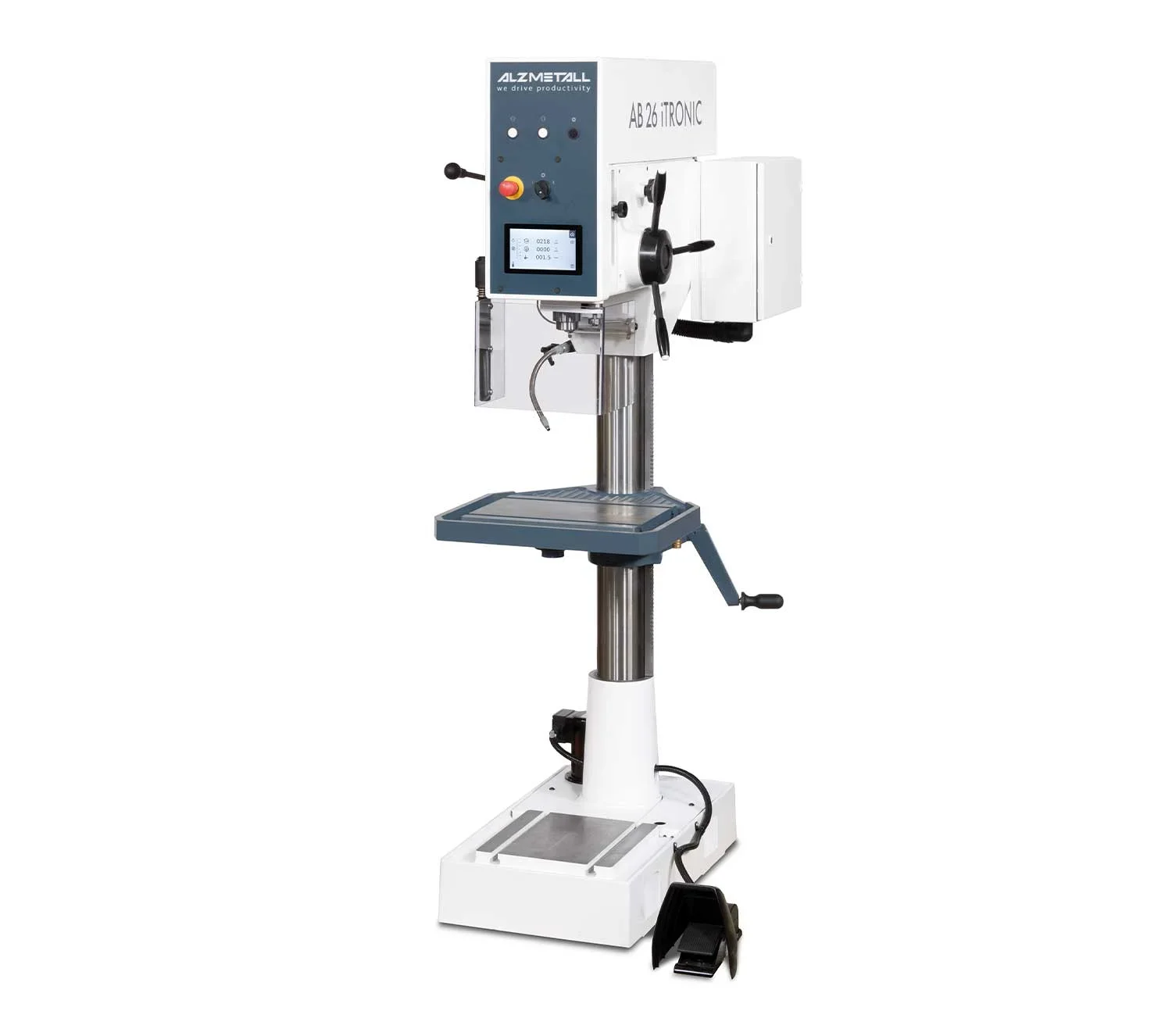

AB 26 iTRONIC

Overview

AB 26 iTRONIC is a Column Drilling Machine. Product variant: AB 26/SV is listed in the product information. Distance spindle to column [mm]: 293; Table clamping area [mm]: 515 x 360; Distance spindle - table min./max. [mm]: 90 / 675; Column diameter [mm]: 115; Z-travel of spindle [mm]: 160. Drilling Capacity Steel E335 (St 60) [mm]: 30; Tapping performance steel E335 (St 60) [mm]: M 20; Spindle, short: MT 3; Feed: automatic. Power [KW]: 1,0 / 1,6; Motor 1 [MIN-1]: 750 / 1500; Spindle Rpm range | Option 1 [U/MIN-1]: 120  2.200; Touchscreen: Yes. Standard equipment includes a 7 TFT  LCD-MULTI-TOUCH Display, tapping auto-reverse w/o foot switch, infinitely variable speed drive, spindle protection, push buttons for starting Right turn (CW), Left turn (CCW) and Spindle off, EMERGENCY-OFF switch, Main switch Right (CW) and Left (CCW) rotation, Control Tension 24 Volts, Protection Clas IP 54, Motor Isolation Class F (155), lacquer finish, Electro-Magnetic Feed Clutch with three Cross Handle, switches and overload feed protection, and a separate bin for machine oil. The product is described as for high performance drilling and as being unmatched and highly precise. The machine supports drilling and tapping operations, with tapping auto-reverse provided as standard and optional foot pedal reverse switch for CW and CCW rotations during the tapping process.
