MILL DRILL SBF 40 TV 1000

Overview

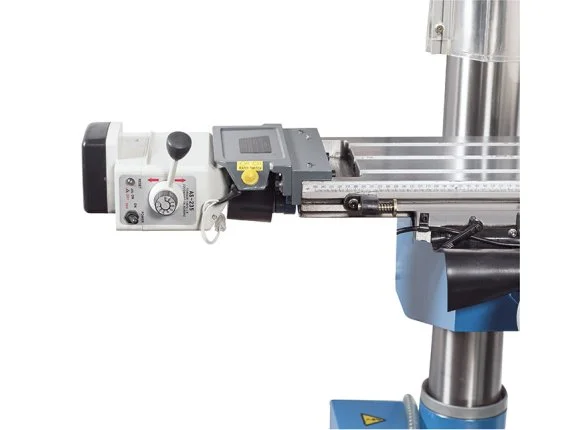

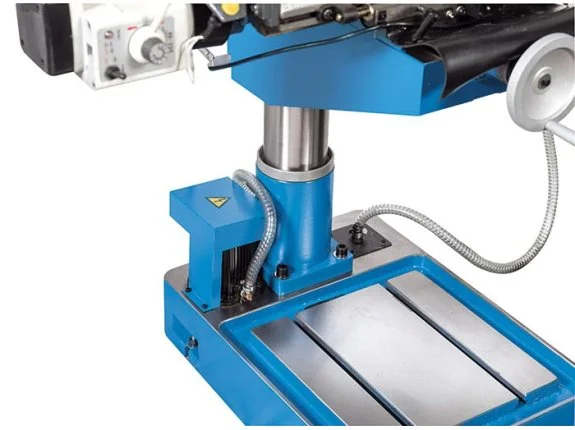

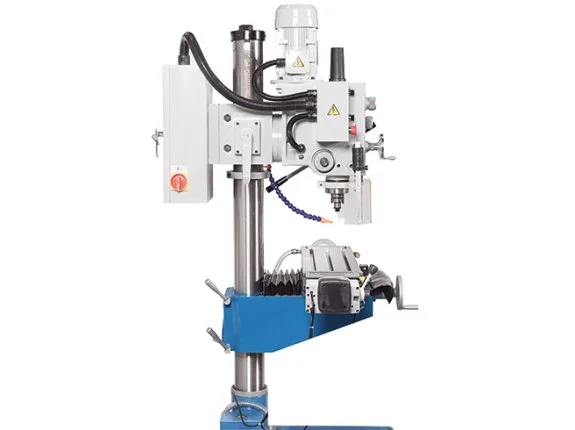

The MILL DRILL SBF 40 TV 1000 (SKU: 101573) is a drilling and milling machine. Table set up area is 29 in x 8 in with a maximum table load capacity of 220 lbs and 3 table T-slots; the T-slot table measures 0.55 in x 2.48 in and the T-slot foot layout is 2 positions at 0.55 in x 7.87 in. Quill stroke is 5 in with a throat depth of 11 in and a column diameter of 5 in; spindle nose-to-table surface distance is 24 in and spindle nose-to-foot distance is 46 in. Travel values are Travel X-axis: 19.7 in, Travel Y-axis: 7 in, Z1 / Z2 axis travel: 21 in, and head swivel range is ± 45°; drilling capacity in steel (ST37) is 2 in and tapping capacity in steel (ST 37) is M16. Speed range is 75 rpm - 3200 rpm with a spindle mount of MT 4 DIN 228. Rapid feed is 24 in/min and work feed ranges from 0 in/min to 17 in/min. Main motor rating is 2 / 1.5 Hp and motor rating for the coolant pump is 0.1 Hp; overall dimensions are 33 in x 30 in x 73 in and weight is 858 lbs. Features include infinitely variable feed on the X axis, automated drilling feed with depth display, a gearbox milling head, a swiveling/tilting head, oil-bath lubricated gears, a high-quality spindle bearing, manual drill feed that can be switched to high-precision hand-wheel feed, a controllable automatic feed with 3 gear steps, adjustable height of gear head and table, table guides adjustable via taper gibs, cutter mounts secured by a drawbar, a tapping feature, and an integrated coolant system. Standard equipment listed includes Table feed TV 1000, draw bar, drill chuck, tool-holder bits, coolant system, and operator manual. The product description states the SBF 40 TV 1000 is ideal as a drill with a powerful drive and a wide speed range and can also be used to mill steel and non-ferrous metals. The large compound sliding table with automatic infinitely variable feed on the X-axis is presented for coordinate drilling and light milling work. A thread cutting/tapping function is provided: tapping mode can be selected from the control panel and, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle.
