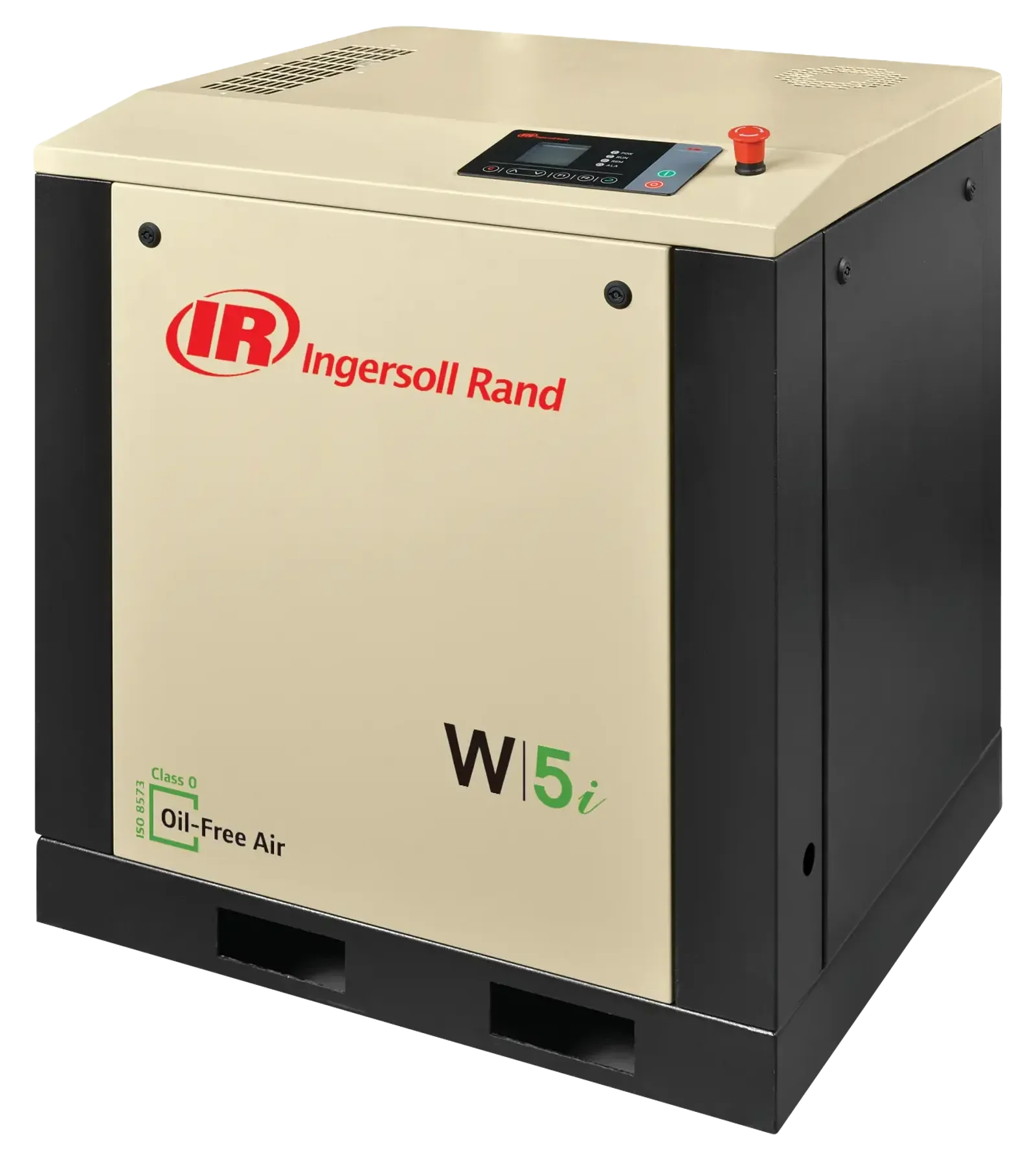

Oil-Free Scroll Air Compressor Systems 2-33 kW

Overview

Oil-Free Scroll Air Compressor Systems 2-33 kW feature a compact, quiet design with low maintenance and a small footprint. The simple tip seal design ensures no metal-to-metal contact anywhere, so the technology does not require lubrication and delivers high-quality, oil-free air. The compressors are designed to deliver more flow per kW and reach pressures up to 10 barg in a single stage of compression. Built-in features include start/stop control to minimise wasted energy in unloaded conditions, a dual-inlet airend design for stable and efficient compression, and an aluminum shell to reduce overall product weight. The design supports multiplexing for part-load efficiency, a generously sized fan for cool operation, microprocessor control to manage discharge pressure and measure key operating parameters, and an aftercooler included in all packages with forced air fans in enclosed models to remove heat. The W-Series 50 Hz performance table lists models W2i-A8 through W33i-A10 with per-model values for Max Pressure(barg), Nominal Power(kw), Air Flow(m3 / min), Weight(kg), Sound Level(db (A)), Connection Size(BSPT) and Dimensions (LxWxH)(mm). Nominal Power(kw) values in the table range from 2.2 to 33, Air Flow(m3 / min) values from 0.21 to 3.78, Max Pressure(barg) values of 8 or 10, Weight(kg) values from 204 to 1000, and Sound Level(db (A)) values from 58 to 64. The product is described as ideal for commercial applications where reliable, oil-free air is required and where quiet operation, low maintenance and a small footprint are critical. The multiplex design enables operating the exact number of compressors to match demand for part-load efficiency, and the microprocessor control manages discharge pressure to meet air demand. All packages include an aftercooler and enclosed models include forced air fans, supporting applications that require cooler discharge air and active heat removal.
