Radyne CorporationFastener Heat Treating System

Fastener Heat Treating System

Radyne Corporation

Categories:
Surface Treatment
Equipment main view
Equipment view 2
Equipment view 3
Equipment placeholder
Equipment placeholder

Model Overview

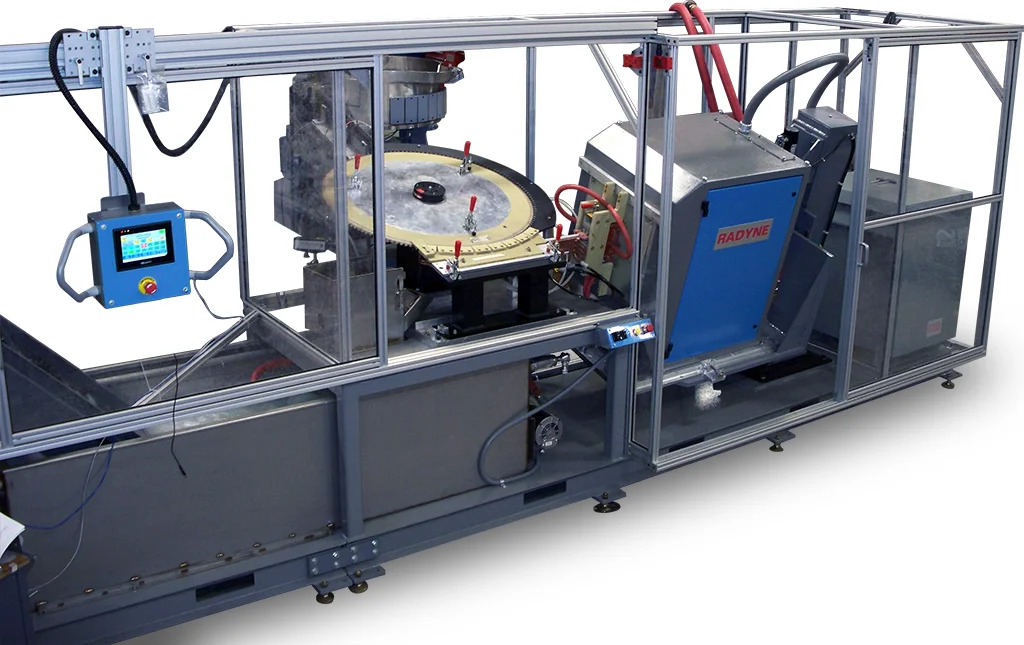

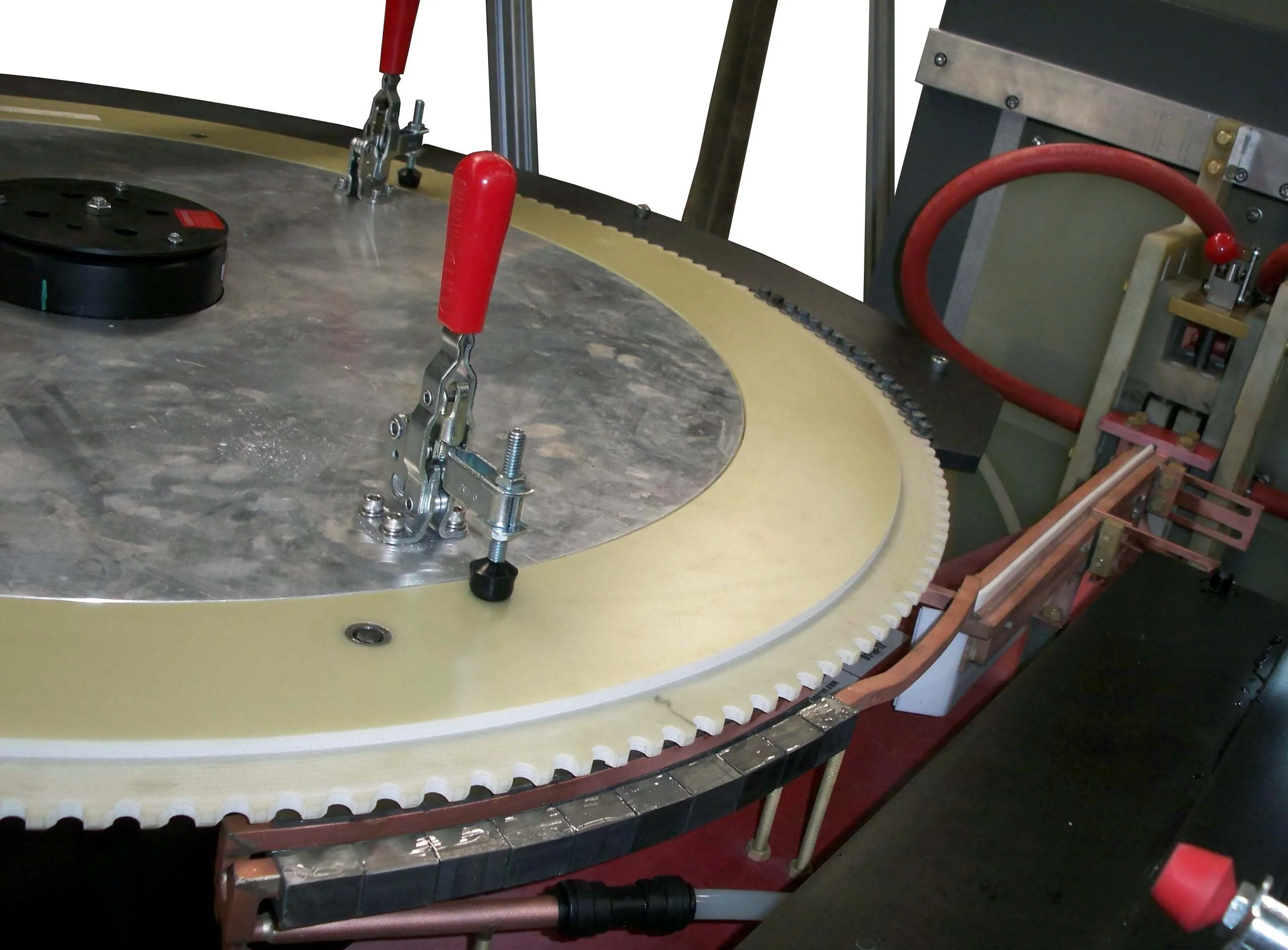

Radyne’s Fastener Heat Treating System is a fully automatic induction-based heat-treating line that includes a vibratory bowl feeder, rotary part indexing, recipe-based Servo Controlled Positioning, a range of induction heating coils, integrated quench, conveyor unload, Color Touch Screen Control Pa...

Technical Specifications

Hardness:52 – 55 HRC after induction hardening as quenched for the first 3 threads
Duty Cycle:100%
Bolt Length:12 mm – 101.6 mm [.05 – 4.0 in.]
Bolt Diameter:M6, M8, M10 & M12 headed 4037 steel fasteners
Maximum Power:100 kW

Similar models

Dry Charge Oven 1

Dry Charge Oven

The Dry Charge Oven is designed for the drying of lead-acid battery plates during the formation phase, supporting various configurations and integration for industrial applications.

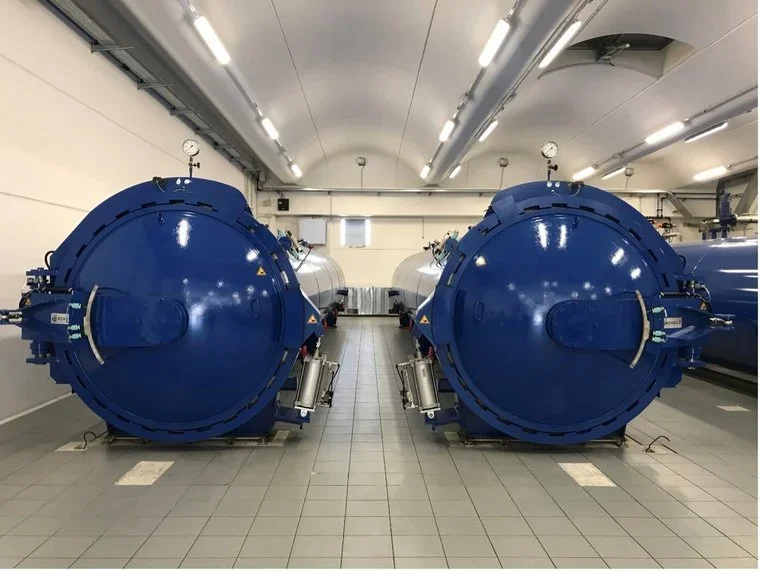

CO2 pressure autoclaves 1

CO2 pressure autoclaves

CO2 pressure autoclaves provide pressure disinfestation for various raw materials, effectively eliminating insect pests without residues, while being customizable in size and features.

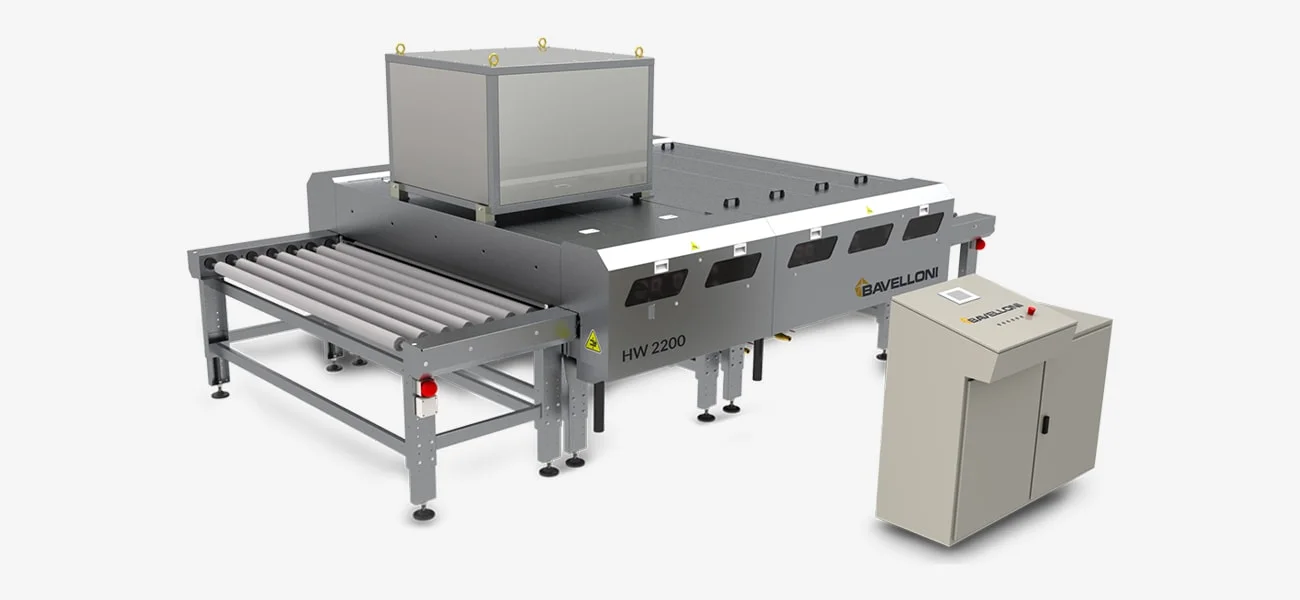

HW 1300 / 1600 / 2200 / 2600 / 3000 / 3300 1
