Calcium carbonate grinding machine AVS-100

Overview

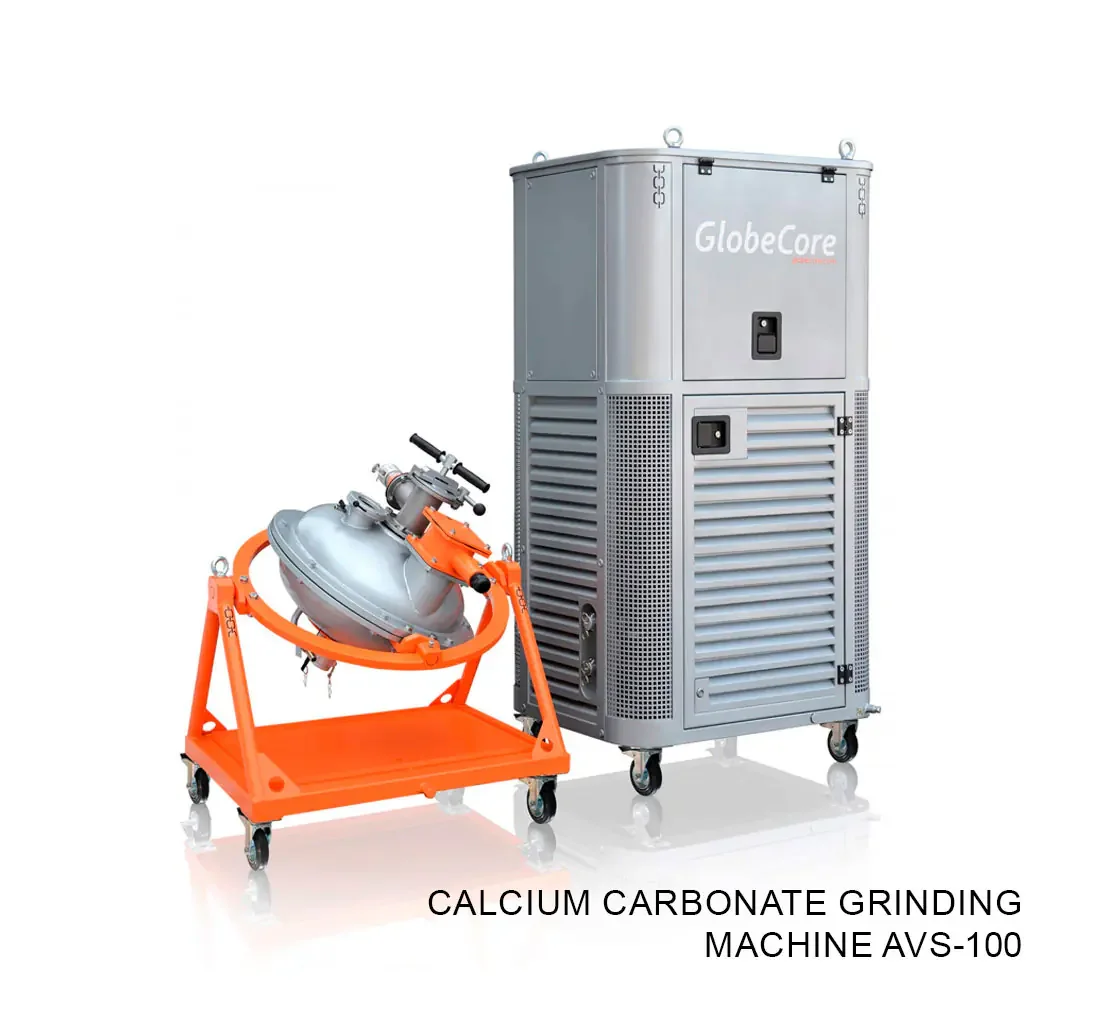

The AVS-100 is GlobeCore’s calcium carbonate grinding machine that uses a vortex bed to produce vigorous mixing and impact on calcium carbonate particles, yielding highly homogeneous and fine material. Energy efficiency is stated as one of the main benefits of the AVS-100. Specifications: - Model: AVS-100 - Max processing rate, m3/hour – water water treatment: 12 - Max processing rate, m3/hour – suspension production: 5 - Operating pressure, MPa (kg/cm2), max: 0,25 (2,5) - Work zone diameter, mm: 90 - Magnetic induction in work zone, T: 0,15 - Electric supply: From AC network - Frequency, Hz: 50 - Voltage, V: 380 - Rotation of magnetic field in work area, RPM: 3 000 - Power consumption, kW: 4,5 - Dimensions, mm: 1200×900×1610 - Weight, kg: 520 The AVS-100 is intended for grinding calcium carbonate intended for use in the food, chemical, and construction industries. The machine supports water treatment processing at up to 12 m3/hour and suspension production at up to 5 m3/hour. High processing speeds are provided to increase productivity for businesses that process large amounts of raw materials.
