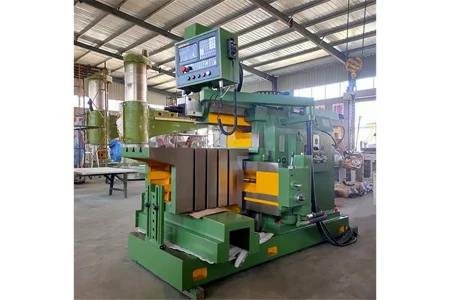

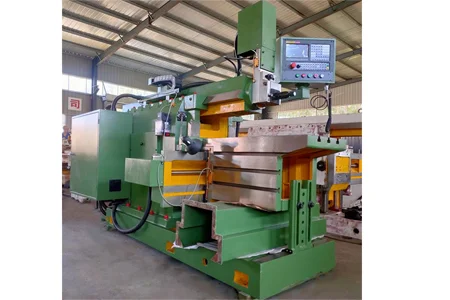

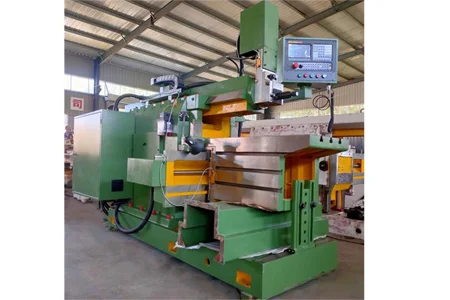

Shaping machine BK60100

Overview

Forming machine BK60100. Warranty: 1 year on equipment. Delivery: In stock; delivery to RF and CIS countries. The supplier indicates availability 24/7. Maximum planing length (values provided): ['1000 mm', '3.2']. Ram working stroke speed (continuous): 3-38 m/min. Maximum distance from lower part of plunger to working surface: 400 mm. Maximum cutting force: 28 kN. Maximum stroke of the tool post (CNC servo): 160 mm. Working surface size on the table (length×width): 1000×500 mm; T-slot width of the working surface: 22 mm; maximum horizontal travel of the working table: 1200 mm. Range of horizontal table feed per reciprocating stroke of the ram (stepless): CNC servo stepless control. Maximum lifting capacity of the working table: 600 kg. High-speed motor for the working table main motor: 7.5 kW; an additional listed power entry: 0.75 kW. Net weight (approx.): 4340*2150*2050. Surface roughness (as listed): 4980 kg. Notes state that technical specifications may be changed without prior notice. The plunger carries a shaping knife for horizontal and linear movement. The tool holder can be rotated at an angle in the vertical plane and can be fed manually. The worktable carries the workpiece for primary horizontal or vertical movement to machine surfaces and grooves. The machine can process dovetail-type grooves and shaped surfaces (example given: turbine blades). The plunger and movable saddle can move along the bed (horizontal type) or the column (vertical type) to plane local surfaces of very large workpieces, and reversible-stroke knives are used for cutting workpieces fixed on the machine's working platform.
