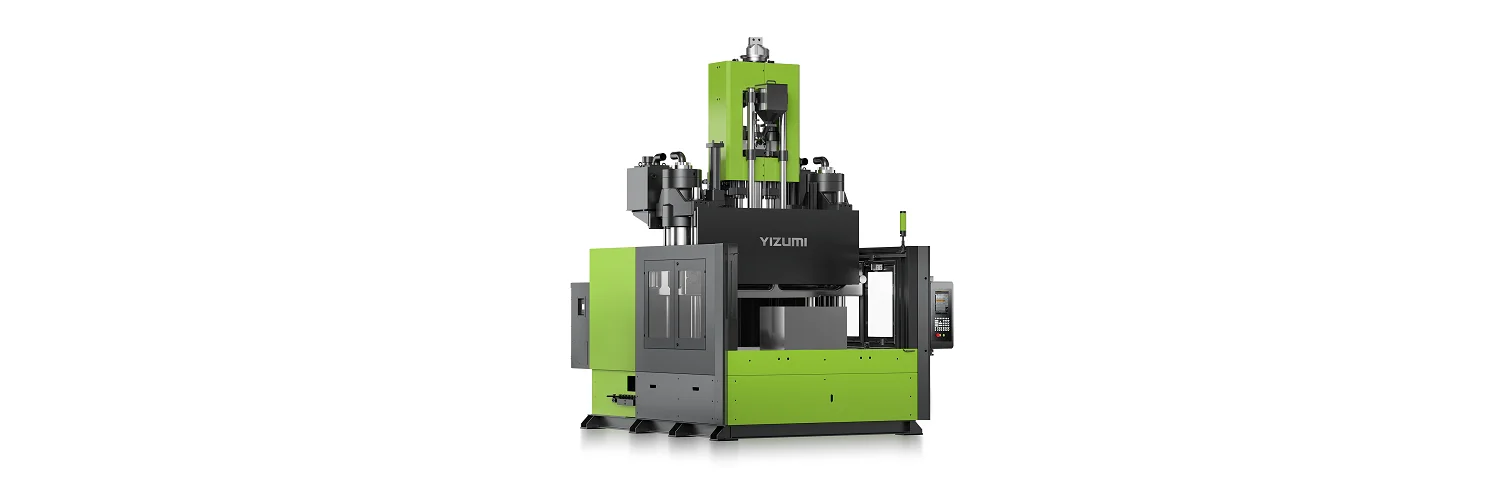

UN165V4UR+UN40V4S Vertical Injection Molding Machine

Overview

Model UN165V4UR+UN40V4S comprises the UN40V4S vertical sliding injection molding machine and the UN165V4UR high-precision silicone specialized injection molding machine. The UN40V4S produces wire harness clips made of PA66+30%GF, a high-precision six-axis robot embeds the clip into a silicone mold, the UN165V4UR performs silicone molding of the clip's sealing part, and the robot automatically retrieves the finished product. The entire production process is highly automated and ensures silicone products are free of flash. Product details listed: Wire Harness Clips; Mold: PS clip mold + cold runner silicone mold; Materials listed include PA66+30%GF and PA66 + 30% self-adhesive silicone; Size: φ40*40mm; Cycle time: 100s; Number of cavities: 4. Value Advantages: - Through the automation integrated solution of multiple injection molding machines, it achieves a synergistic effect where 1+1>2, fully utilizing the characteristics of each machine to match the fastest production cycle and achieve the most efficient automation production. - The flexible combination production method of multiple machines provides greater flexibility, adapting to a wider variety of products and allowing flexible replacement of a specific machine to expand system adaptability. - This set of equipment can be used for the production of various automotive multi-color components and other industries' multi-color solutions, and for parts with embedded requirements it can significantly shorten the production cycle. Demonstrated at CHINAPLAS as a molding solution for silicone composite components, the setup shows the production flow for wire harness clips where a UN40V4S produces the clip, a six-axis robot embeds it into a silicone mold, and a UN165V4UR adds the silicone sealing before robotic removal. The example process uses a PS clip mold + cold runner silicone mold and targets wire harness clips with Size: φ40*40mm, Cycle time: 100s, and Number of cavities: 4. The equipment set is presented for production of various automotive multi-color components and other industries' multi-color solutions, and for parts with embedded requirements that can significantly shorten the production cycle.
